| Place of Origin: | China jiangsu |
| Brand Name: | Faygo |
| Certification: | CEISO |
| Model Number: | FG8 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD +75000-95000+set |
| Packaging Details: | wooden |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30+set+mouth |
| High Light: | bottle blow moulding machine,plastic bottle production machine |
||
|---|---|---|---|
Condition:
Application:
Plastic Processed:
Blow Moulding Type:
Automatic:
Place of Origin:
Brand Name:
Model Number:
Voltage:
Power(W):
Dimension(L*W*H):
Weight:
Certification:
Warranty:
After-sales Service Provided:
Name:
Material:
Color:
Product name:
Machine type:
Type:
Capacity:
Use:
Key words:
Suitable bottle:
Packaging Details
Packing Details wood case and plastic film packing
Delivery Time 60 days After payment
Delivery Time
60 days after payments

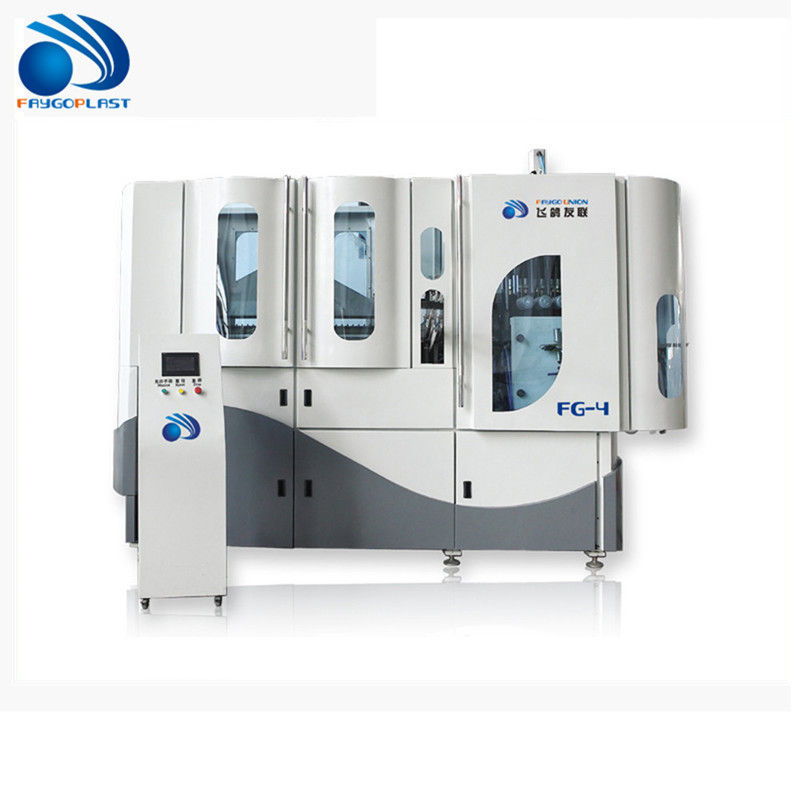

| Type | FG4 | FG6 | FG8 | ||
| Bottle specification | Mold number(piece) | 4 | 6 | 8 | |
| Max capacity(BPH) | 6500-8000 | 9000-10000 | 12000-13000 | ||
| Max volume(mL) | 2000 | 2000 | 750 | ||
| Max height(mm) | 328 | 328 | 290 | ||
| round bottle max diameter(mm) | 105 | 195 | 75 | ||
| Square bottle max diagonal(mm) | 115 | 115 | 76 | ||
| Preform specification | Suitable inner bottle neck (mm) | 20-25 | 20-25 | 20-25 | |
| Max perform length(mm) | 150 | 150 | 150 | ||
| Electricity | Total installation power(KW) | 51 | 51 | 97 | |
| Heating oven total power(KW) | 46 | 46 | 92 | ||
| Heating oven real power(KW) | 25 | 30 | 45 | ||
| Voltage/Frequency(V/Hz) | 380(50Hz) | 380(50Hz) | 380(50Hz) | ||
| Allowed voltage fluctuation range | ±10% | ±10% | ±10% | ||
| Compressed air | Pressure (bar) | 30 | 30 | 30 | |
| Air consumption(m3/min) | 4 | 6 | 8 | ||
| Cooling water | Mold water | Pressure (bar) | 4-6 | 4-6 | 4-6 |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 45 | 45 | 45 | ||
| Oven water | Pressure (bar) | 4-6 | 4-6 | 4-6 | |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 22 | 22 | 22 | ||
| Machine specification | Machine dimension(m)(L*W*H) | 3.3*1*2.3 | 4.3*1*2.3 | 4.8*1*2.3 | |
| Machine weight(Kg) | 3500 | 4000 | 4500 | ||
One stop Station Services
1)Stand-by engineers teams to provide overseas installation and commissioning service.
2)1 year warranty.During warranty ,we provide free of charge for repairing cost.
3)lifetime maintence .After-sales department can provide life long maintence service.
