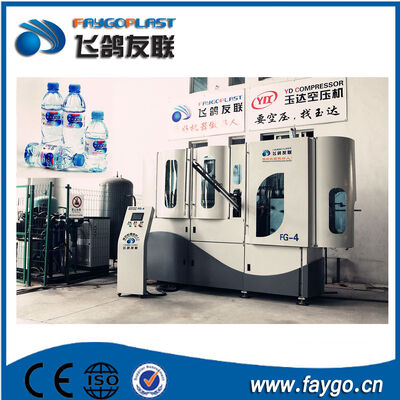

4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET

4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET

    • 4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET
    • 4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET
    • 4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET
    • 4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET
  • 4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET

    Product Details:

    Place of Origin: China
    Brand Name: Faygoplast
    Certification: CE ISO
    Model Number: FG4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD+75000-95000+set
    Packaging Details: wooden case ,film packing
    Delivery Time: 90days after payment
    Supply Ability: 30+set+mouth
    Contact Now
    Detailed Product Description
    Application: Bottle Plastic Processed: PET
    Hollow Part Volume: 50ml-2L Warranty: 1 Year
    Color: White Weight (KG): 6000
    High Light:

    45L/Min Plastic Bottle Moulding Machine


    45L/Min Pet Bottle Moulding Machine


    4.0MPa Plastic Bottle Moulding Machine

    Plastic Bottle Making 0.5L- 2L 6000BPH Automatic PET Bottle Blowing Machine

    2. Advantages:
    2.1 High speed with reasonable structure:
    The unique linkage cam can finish mold-opening, mold-locking and bottom mold-elevating in one movement, the blowing period is greatly reduced to 2 seconds.
    The linkage cam is intelligently driven by one servo motor, this obviously simplify the blowing machine structure, which make it convenient to maintain and no need for heavy lubrication work.
    2.2 Less heating oven, small electricity consumption
    The preforms distance in the heating oven is only 38.1mm, which means more preforms can be put into the oven compared with the traditional blowing machine. The heating efficiency is largely improved, and as a result, it saves more than 30% electricity consumption than the traditional blowing machine.
    2.3 Stably running
    The machine adopts modularized design concept, it has compact and reasonable structure, it reduces the failure rate from the basic design angle. FG4 does not need the low air compressor.

    3 Detail specification of FG-4 PET bottle blowing machine

    Main Parameter
    Model FG-4
    Capacity Depend on bottle design 5500-7200PCS/H
    Applicable Preform Height <330mm
    Neck 20mm-25mm
    Applicable Bottle Neck 20-25mm
    Volume Max.2Liter
    Height Max.328mm
    Diameter Max.105mm
    Electric consumption Install power 51kw
    Heating oven powder 46kw
    Heating Oven operating power 26kw
    Air consumption Pressure 4m3/min 4.0MPa
    Capacity 4m3/min 4.0MPa
    Mold Chiller Pressure 4-6Bar
    Temperature 6-13ºC
    Flow 45L/min
    Oven Chiller Pressure 4-6Bar
    Temperature 6-13ºC
    Flow 26L/min
    Machine Dimension L*W*H 3900*900*2500mm
    Weight 3500kg
    Capacity: 5000-5500BPH(based on 1L)
    Max. Volume: 2 Litter
    Total Size:
    Blowing Main machine: 3.6*1.3*2.3m
    Sorting machine:2*1.5*1.5m/Loader:3*1*1.5m

    Main electrics
    Pneumatic part& Cylinder Valve GERMAN FESTO
    Electric part PLC JAPAN Mitsubishi
    Servo System JAPAN Panasonic
    Frequency inverter JAPAN Mitsubishi
    Operating system JAPAN Mitsubishi
    Touch screen JAPAN Mitsubishi
    Blowing Valve JAPAN Parker
    One-way Valve GERMAN FESTO
    Throttle Valve GERMAN FESTO
    Reducing Valve GERMAN DURAY
    Note: All the electrical components adopts CE,UL,CCC approved international
    advanced high-tech product

    4.0MPa 45L/Min Plastic Bottle Moulding Machine For PET 0

    1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
