| Place of Origin: | China |
| Brand Name: | Faygoplast |
| Certification: | CE ISO |
| Model Number: | FG6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD+75000-95000+set |
| Packaging Details: | wooden case ,film packing |
| Delivery Time: | 90days after payment |
| Supply Ability: | 30+set+mouth |
| High Light: | 9000PCS/H Pet Blow Moulding Machine,105mm Pet Blow Moulding Machine,2 Liter pet blowing machine |
||
|---|---|---|---|

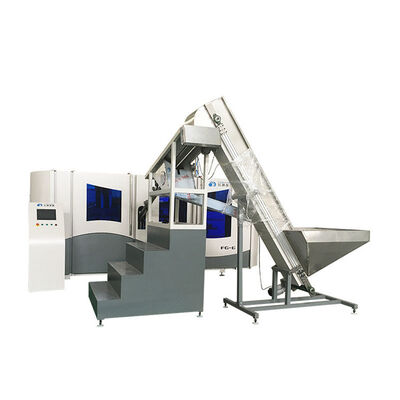

CE ISO Durable Automatic Pet Bottle Blow Molding Machine With Reliable Performance
pet bottle blow molding machine parameters
Detail specification of FG-6 PET bottle blowing machine
Main Parameter |
||||
| Model | FG-6 | |||
| Capacity | Depend on bottle design | 9000-12000PCS/H | ||
| Applicable Preform | Height | <330mm | ||
| Neck | 20mm-25mm | |||
| Applicable Bottle | Neck | 20-25mm | ||
| Volume | Max.2 Liter | |||
| Height | Max.328mm | |||
| Diameter | Max.105mm | |||
| Electric consumption | Install power | 51kw | ||
| Heating oven powder | 46kw | |||
| Heating Oven operating power | 28kw | |||
| Air consumption | Pressure | 8m3/min 4.0MPa | ||
| Capacity | 8m3/min 4.0MPa | |||
| Mold Chiller | Pressure | 4-6Bar | ||
| Temperature | 6-13ºC | |||
| Flow | 45L/min | |||
| Oven Chiller | Pressure | 4-6Bar | ||
| Temperature | 6-13ºC | |||
| Flow | 26L/min | |||
| Machine Dimension | L*W*H | 3900*900*2500mm | ||
| Weight | 3500kg | |||
| Capacity:9000-12000PCS/H(based on 0.5L) | ||||
| Max. Volume: 2 Litter Total Size: Blowing Main machine: 3.6*1.3*2.3m Sorting machine:2*1.5*1.5m/Loader:3*1*1.5m |
||||
Main electrics |
||||
| Pneumatic part& Cylinder | Valve | GERMAN FESTO | ||
| Electric part | PLC | JAPAN Mitsubishi | ||
| Servo System | JAPAN Panasonic | |||
| Frequency inverter | JAPAN Mitsubishi | |||
| Operating system | JAPAN Mitsubishi | |||
| Touch screen | JAPAN Mitsubishi | |||
| Blowing | Valve | JAPAN Parker | ||
| One-way Valve | GERMAN FESTO | |||
| Throttle Valve | GERMAN FESTO | |||
| Reducing Valve | GERMAN DURAY | |||
| Note: All the electrical components adopts CE,UL,CCC approved international advanced high-tech product |
||||
| Technical parameters | ||
| Type | FG6 | |
| Bottle Specifications | Mould number(piece) | 6 |
| Max capacity(BPH) | 9000-10000 | |
| maxi volume (mL) | 2000 | |
| maxi height (mm) | 328 | |
| maxi diameter (mm) | 105 | |
| Machine Specification | host machine dimension (m) (LxWxH) | 4.6x1.3x2.3 |
| Weight (Kg) | 4500 | |
Advantages
1.Up to 45% less by heating
In our blower, preform distance is only 38mm, with fewer lamps, you can heat more preforms
2.Up to 20 mins change mold
What if you change mold like open & close a drawer?
With our special quick-mold-change design, mold can find position itself. and be changed within 20 minutes
3.Up to 30% less by air
This machine is fully driven by servo motor, no need low pressure air
We also decrease the dead volume in the blowing station to reduce high pressure air consumption
4.Up to 80% less maintain cost
Changing new air cylinders and seal rings is main maintain cost in blower
We adopt servo motors, It is more reliable and almost no need maintain cost
Contact Person: Mr. Figo Hussian
Tel: +8613773258862
