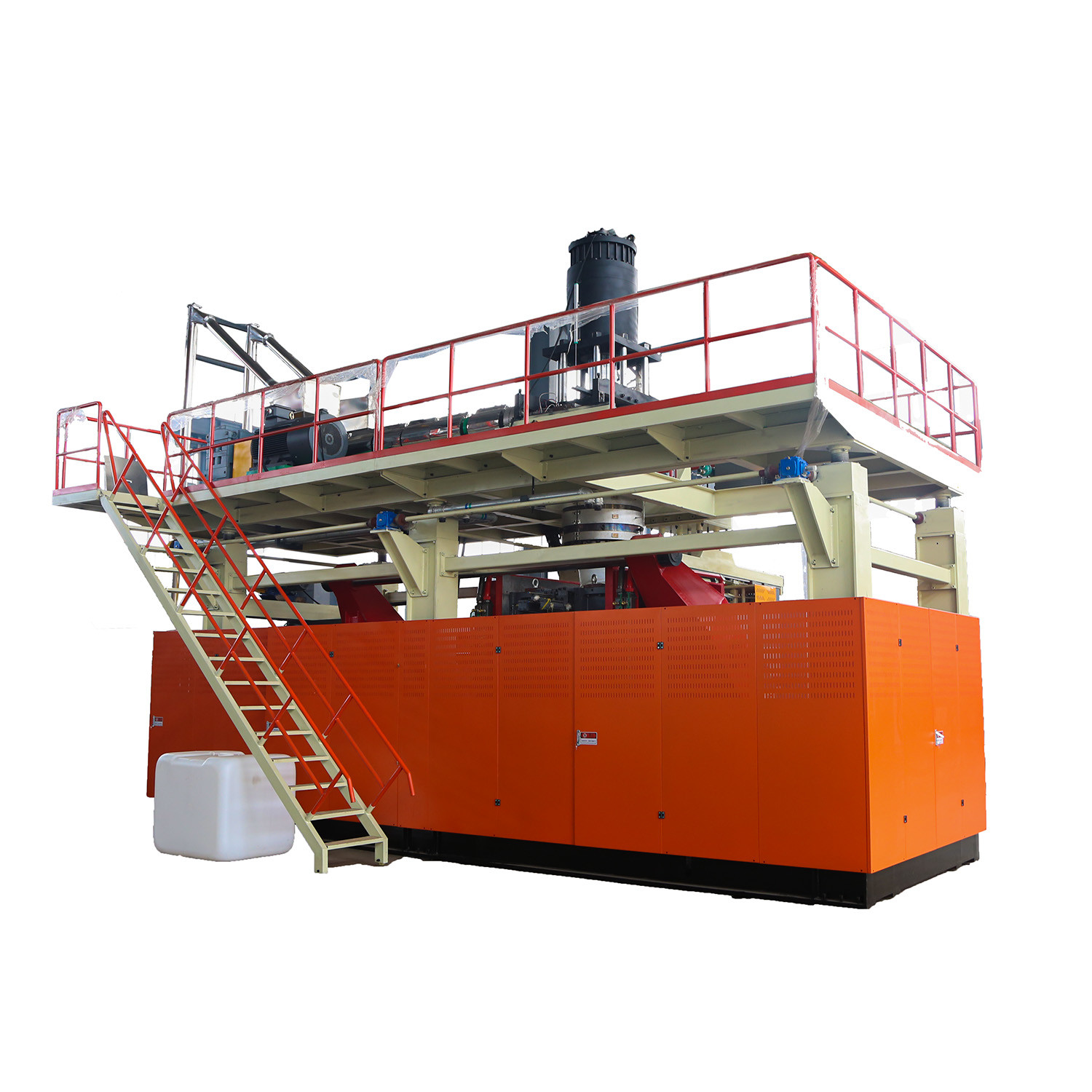

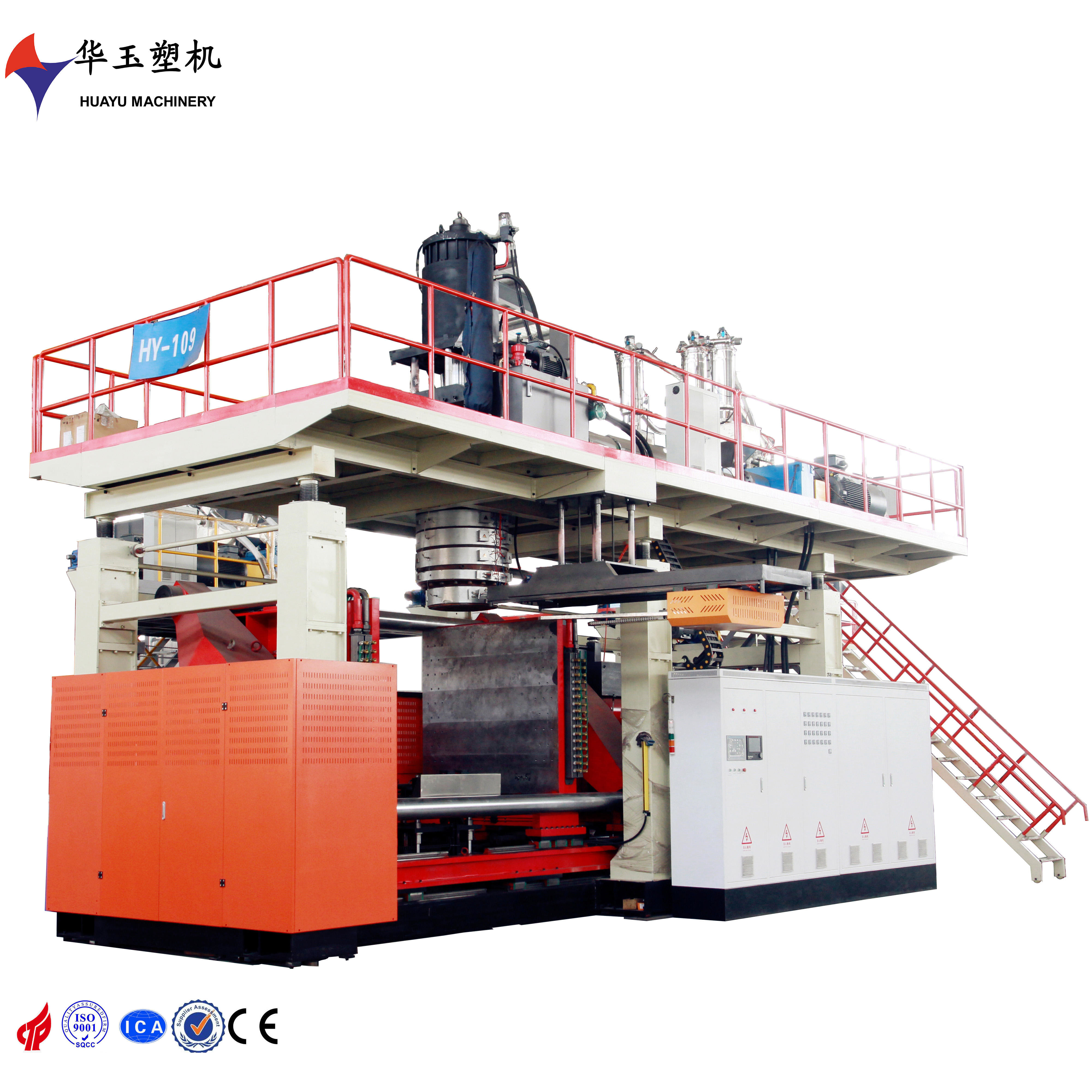

Fast 8-Layer IBC Tank Blow Molding Machines

  • Fast 8-Layer IBC Tank Blow Molding Machines
  • Fast 8-Layer IBC Tank Blow Molding Machines
  • Fast 8-Layer IBC Tank Blow Molding Machines
  • Fast 8-Layer IBC Tank Blow Molding Machines
Place of Origin CHINA
Brand Name HUAYU
Certification CE ,SGS
Model Number HY1000L-IBC
Minimum Order Quantity 1SET
Price Negotiate
Packaging Details EXPORT PACKAGED
Delivery Time 4MONTHS
Payment Terms L/C, T/T
Supply Ability 40SETS PER YEAR

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Clamping Force 1800（Kn） Weight 69Ton
Plastic Processed HDPE、PE After-sales Service Provided Engineers Service Overseas
Certification CE Certificated,SGS;BV Color Customied
PLC Brand Siemens
Highlight

IBC Tank Blow Molding Machines

,

8-layer Tank Blow Molding Machines

,

8-layer Tank Molding Machines
Leave a Message
Product Description

Fast 8-layer IBC automatic blow molding machine IBC tote top standard

Processing advantage
Weifang Plastic Machinery Co., Ltd. has over 20 years of experience in producing and designingblow molding machines, and has over 30 comprehensive mechanical processing equipmentsuch as large machining centers, large floor boring and miling machines imported from Germany,large gantry miling machines, and large CNC lathes, which can grasp the accuracy ofequipment processing from the source.

    Technical features:
  1. The equipment uses a Siemens control system and a Flanders original imported reducer, ensuring efficient and stable operation of the equipment.
  2. Equipped with a remote control system, it can quickly and accurately solve equipment problems.

 Condition

new



Video outgoing-inspection
Provided



Machinery Test Report
Provided



Warranty of core components
1 Year



Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Plastic Processed
HDPE, PE



Place of Origin
Shandong, China



Automation
Automatic



Power (kW)
390



Weight (T)
69



Key Selling Points
High Productivity



Warranty
1 Year



Applicable Industries
Manufacturing Plant, Other



Showroom Location
United States, Brazil, India, Chile



Application
chemical industry package



Brand Name
huayu



Year
2023



Voltage
customized



Dimension(L*W*H)
customized



Hollow part volume
customized



PLC Brand
Siemens



Screw L/D Ratio
30



Screw diameter (mm)
120 mm



No. of Screw Heating Zone
6



Screw Heating Power(kW)
72 kW



Extruder Motor Power(kW)
110 kW



Mold Platen Size(Width)(mm)
1500 mm



Mold Platen Size(Height)(mm)
1600 mm



Air Pressure(MPa)
0.8 MPa



Air Comsumption(m³/min)
1.5 m³/min



Die Head Heating Power(kW)
70 kW



Accumulator Capacity(L)
60 L



After Warranty Service
Life



Blow Moulding Type
Extrusion Blow Moulding



Type
Extrusion Blow Molding Equipment



Marketing Type
Ordinary Product



Product name
Automatic Blowing Molding Machine



Range
IBC tank



CONTROLLER
PLC+Touch Screen



Layer
8 Layers



Parison Control
MOOG 200point



Material
HDPE

Fast 8-Layer IBC Tank Blow Molding Machines 0Fast 8-Layer IBC Tank Blow Molding Machines 1Fast 8-Layer IBC Tank Blow Molding Machines 2Fast 8-Layer IBC Tank Blow Molding Machines 3Fast 8-Layer IBC Tank Blow Molding Machines 4Fast 8-Layer IBC Tank Blow Molding Machines 5
