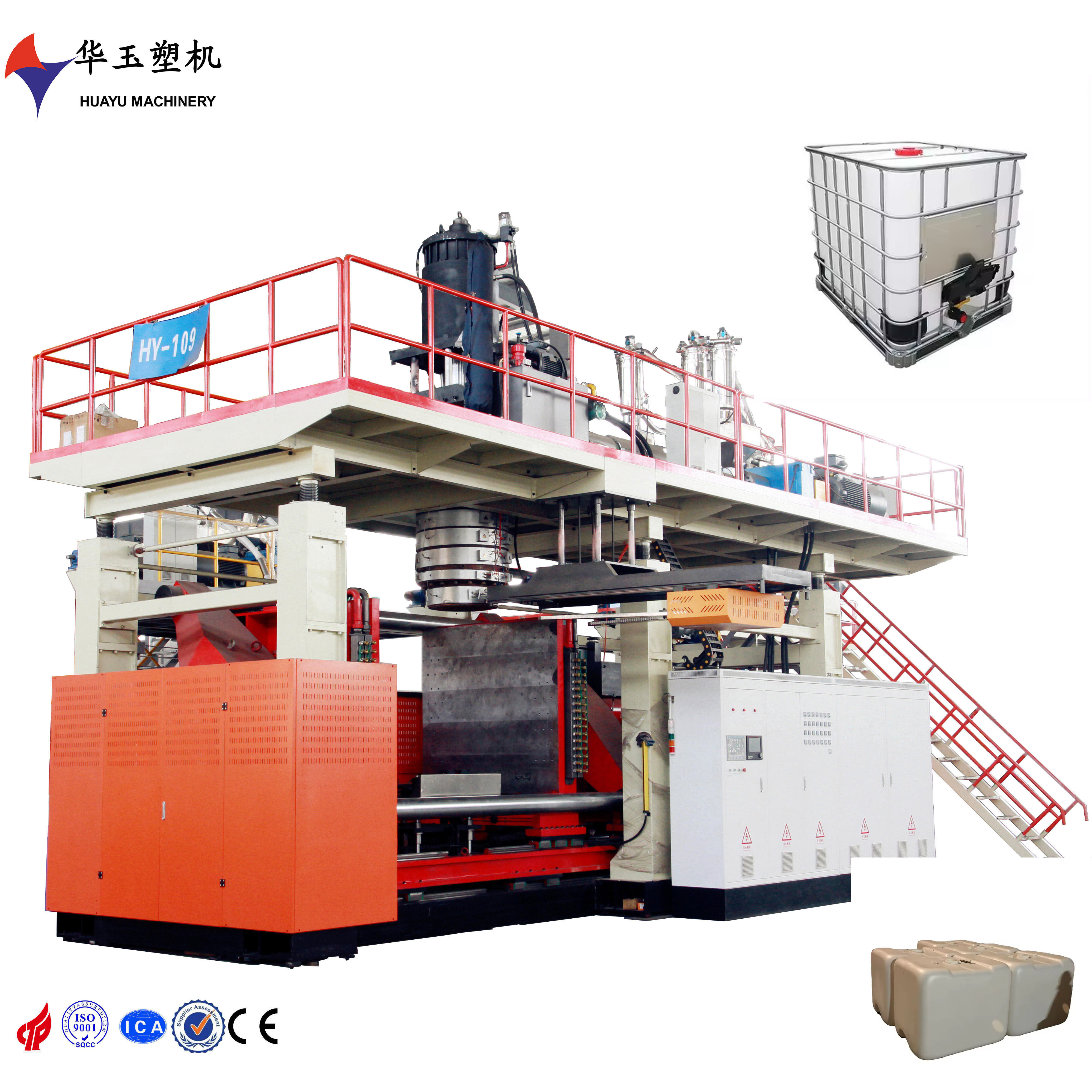

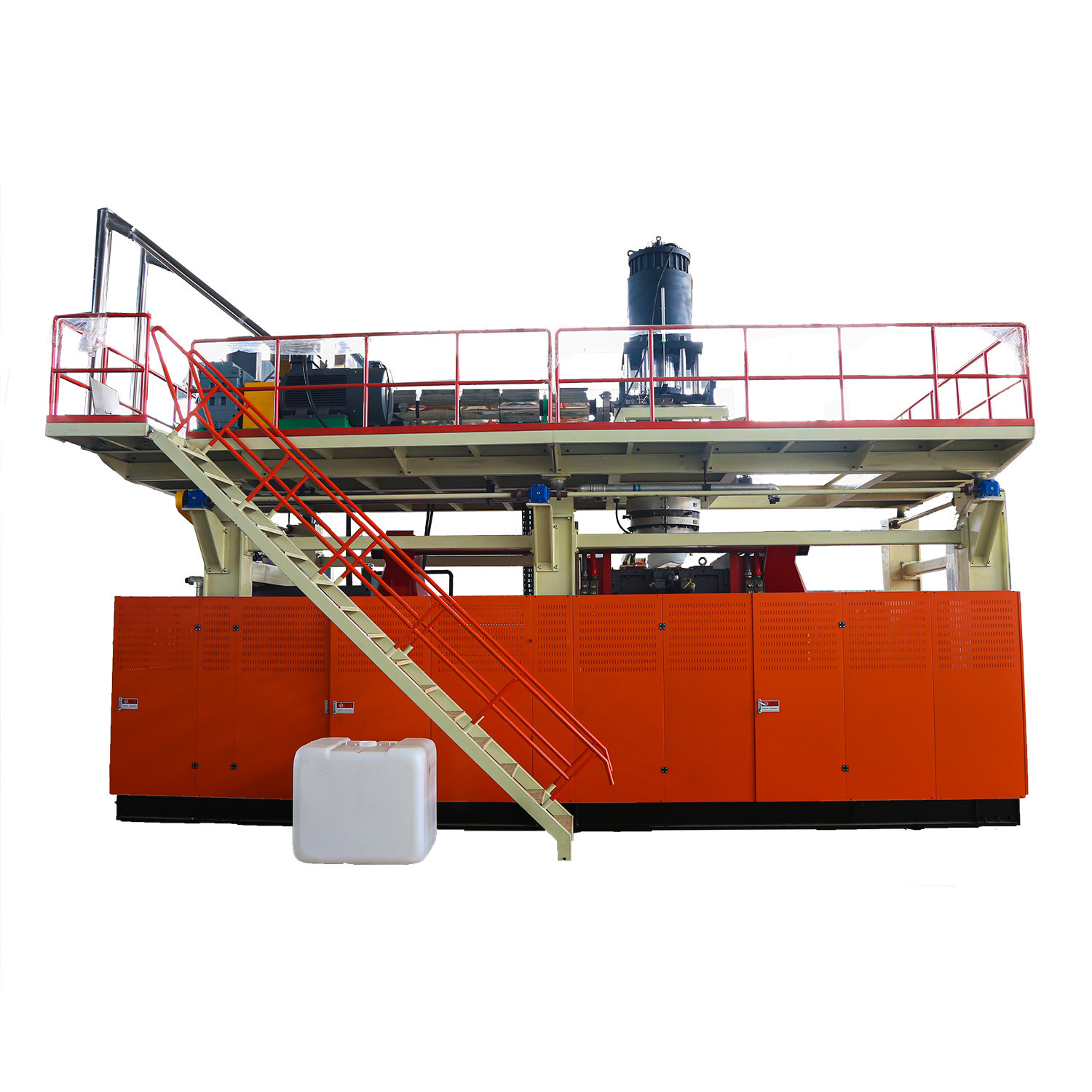

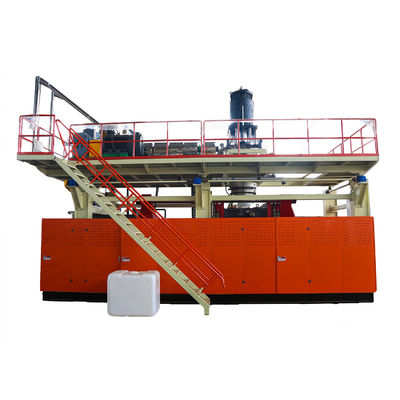

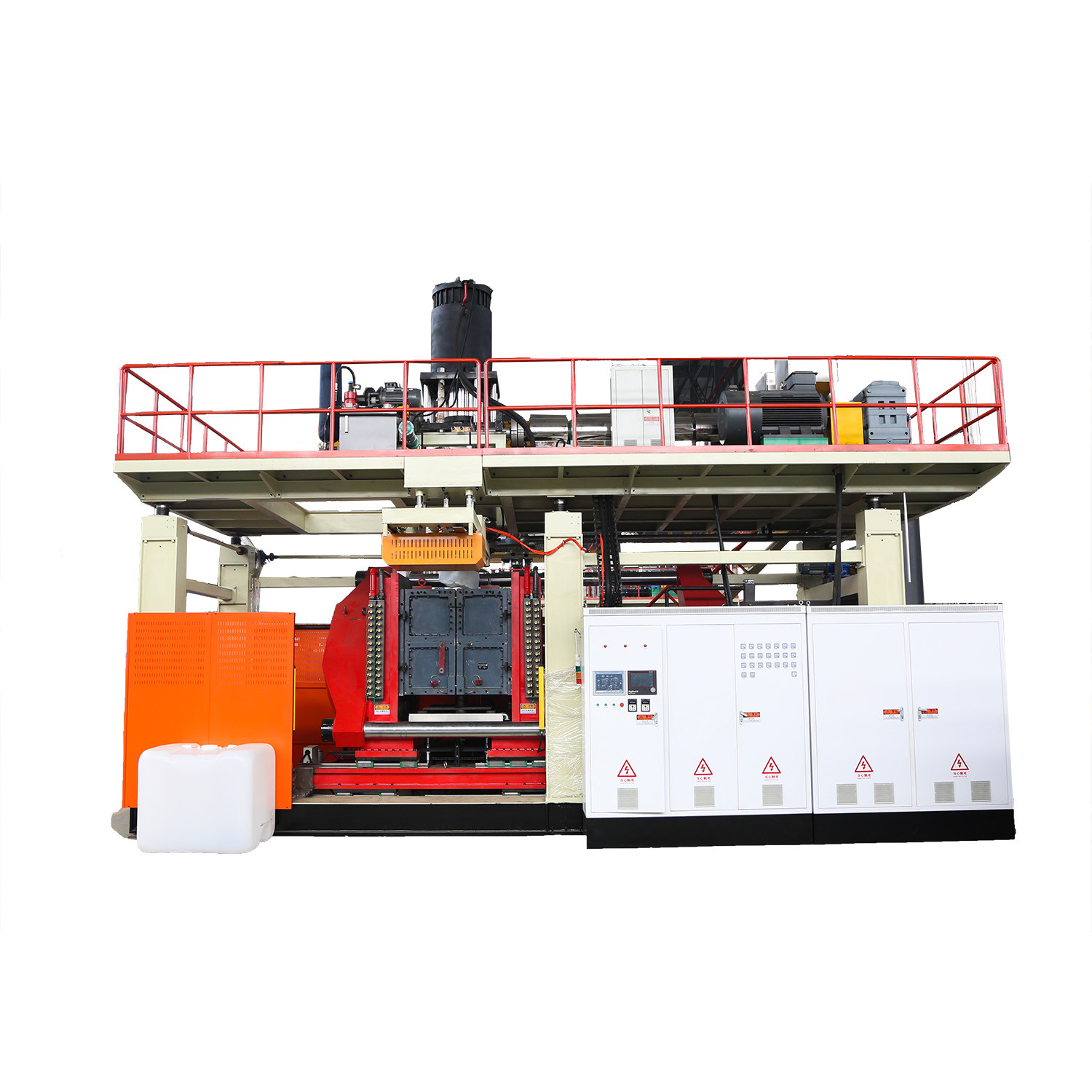

10 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC

  • 10 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC
  • 10 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC
  • 10 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC
  • 10 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC
Place of Origin CHINA
Brand Name HUAYU
Certification CE ,SGS
Model Number HY1000L-IBC
Minimum Order Quantity 1SET
Price USD 370,000
Packaging Details EXPORT PACKAGED
Delivery Time 4MONTHS
Payment Terms L/C, T/T
Supply Ability 40SETS PER YEAR

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Clamping Force 1800（Kn） Weight 69Ton
Plastic Processed HDPE、PE After-sales Service Provided Engineers Service Overseas
Certification CE Certificated,SGS;BV Color Customied
PLC Brand Siemens Capacity Range 1000L
Machine Dimension 11*5.8*7M Average Aonsumption 280KW
Total Power 572KW Accumulator Capacity 30KG
Extrudor Motor 110/90*2/15*3 Screw Diameter 120MM/110MM*2/55MM*3
Screw L/D Ratio 30:1 Plasticizing Capacity 550/H
Platen Size 1700*1800 Platen Distance 1100-2500MM
Servo Motor 48KW
Highlight

Chemical IBC Tank Blow Molding Machine

,

10 Layer IBC Tank Blow Molding Machine

,

1000L hdpe plastic blow molding machine
Leave a Message
Product Description
10-Layer Automatic Huayu 1000L Chemical IBC Blow Molding Machine with Siemens PLC

Company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery.

    Technical features:

  1. The equipment uses a Siemens control system and a Flanders original imported reducer, ensuring efficient and stable operation of the equipment.
  2. Equipped with a remote control system, it can quickly and accurately solve equipment problems.
  3. A three-cylinder clamping system increases the clamping force and improves the clamping speed.

 Condition

new



Video outgoing-inspection
Provided



Machinery Test Report
Provided



Warranty of core components
1 Year



Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Plastic Processed
HDPE, PE



Place of Origin
Shandong, China



Automation
Automatic



Power (kW)
390



Weight (T)
69



Key Selling Points
High Productivity



Warranty
1 Year



Applicable Industries
Manufacturing Plant, Other



Showroom Location
United States, Brazil, India, Chile



Application
chemical industry package



Brand Name
huayu



Year
2023



Voltage
customized



Dimension(L*W*H)
customized



Hollow part volume
customized



PLC Brand
Siemens



Screw L/D Ratio
30



Screw diameter (mm)
120 mm



No. of Screw Heating Zone
6



Screw Heating Power(kW)
72 kW



Extruder Motor Power(kW)
110 kW



Mold Platen Size(Width)(mm)
1500 mm



Mold Platen Size(Height)(mm)
1600 mm



Air Pressure(MPa)
0.8 MPa



Air Comsumption(m³/min)
1.5 m³/min



Die Head Heating Power(kW)
70 kW



Accumulator Capacity(L)
60 L



After Warranty Service
Life



Blow Moulding Type
Extrusion Blow Moulding



Type
Extrusion Blow Molding Equipment



Marketing Type
Ordinary Product



Product name
Automatic Blowing Molding Machine



Range

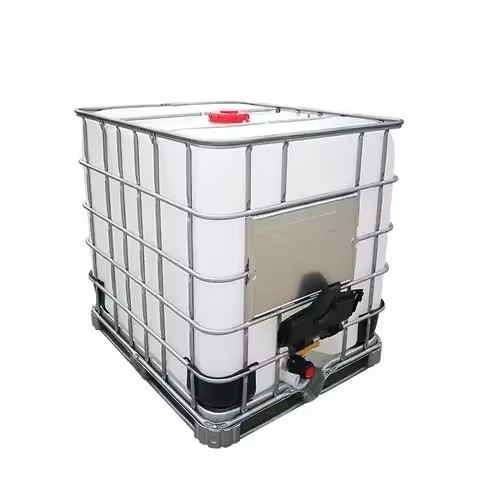

IBC tank



CONTROLLER
PLC+Touch Screen



Layer
5 Layers



Parison Control
MOOG 200point



Material
HDPE

10 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC 010 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC 110 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC 210 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC 310 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC 410 Layer Chemical IBC Tank Blow Molding Machine Automatic 1000L With Siemens PLC 5
