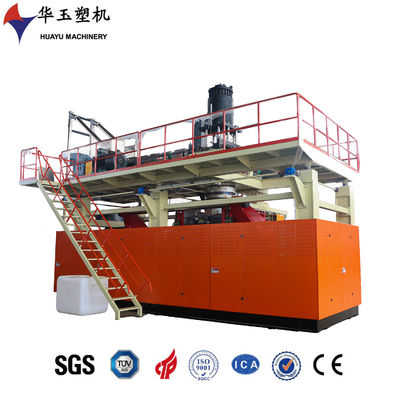

Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter

  • Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter
  • Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter
  • Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter
  • Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter
Place of Origin CHINA
Brand Name HUAYU
Certification CE ,SGS
Model Number HY1000L-IBC
Minimum Order Quantity 1SET
Price USD 370,000
Packaging Details EXPORT PACKAGED
Delivery Time 4MONTHS
Payment Terms L/C, T/T
Supply Ability 40SETS PER YEAR

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Clamping Force 1800（Kn） Plastic Processed HDPE、PE
After-sales Service Provided Engineers Service Overseas Certification CE Certificated,SGS;BV
PLC Brand Siemens Capacity Range 1000L
Machine Dimension 11*5.8*7M Average Aonsumption 280KW
Total Power 572KW Accumulator Capacity 30KG
Extrudor Motor 110/90*2/15*3 Screw Diameter 120MM/110MM*2/55MM*3
Screw L/D Ratio 30:1 Plasticizing Capacity 550/H
Platen Size 1700*1800 Platen Distance 1100-2500MM
Servo Motor 48KW
Highlight

1000L IBC Blow Moulding Machine

,

Chemical IBC Blow Moulding Machine

,

Automatic IBC Blow Moulding Machine
Leave a Message
Product Description
Company advantage: With an experienced engineer team, top brand accessories, strict quality control and certification system, as well as powerful machining and processing ability, high-quality Huayu machinery is created.
Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 0
Technical characteristics:

The apparatus employs a Siemens control system as well as a Flanders originally imported reducer, guaranteeing the efficient and steady operation of the equipment.

It is equipped with a remote control system, which can rapidly and precisely address equipment issues.

A three-cylinder clamping system raises the clamping force and enhances the clamping speed.


 Condition

new



Video outgoing-inspection
Provided



Machinery Test Report
Provided



Warranty of core components
1 Year



Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Plastic Processed
HDPE, PE



Place of Origin
Shandong, China



Automation
Automatic



Power (kW)
390



Weight (T)
69



Key Selling Points
High Productivity



Warranty
1 Year



Applicable Industries
Manufacturing Plant, Other



Showroom Location
United States, Brazil, India, Chile



Application
chemical industry package



Brand Name
huayu



Year
2023



Voltage
customized



Dimension(L*W*H)
customized



Hollow part volume
customized



PLC Brand
Siemens



Screw L/D Ratio
30



Screw diameter (mm)
120 mm



No. of Screw Heating Zone
6



Screw Heating Power(kW)
72 kW



Extruder Motor Power(kW)
110 kW



Mold Platen Size(Width)(mm)
1500 mm



Mold Platen Size(Height)(mm)
1600 mm



Air Pressure(MPa)
0.8 MPa



Air Comsumption(m³/min)
1.5 m³/min



Die Head Heating Power(kW)
70 kW



Accumulator Capacity(L)
60 L



After Warranty Service
Life



Blow Moulding Type
Extrusion Blow Moulding



Type
Extrusion Blow Molding Equipment



Marketing Type
Ordinary Product



Product name
Automatic Blowing Molding Machine



Range
IBC tank



CONTROLLER
PLC+Touch Screen



Layer
5 Layers



Parison Control
MOOG 200point



Material
HDPE

Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 1Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 2Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 3Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 4Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 5Automatic 1000L Chemical IBC Blow Moulding Machine with 120MM/110MM*2/55MM*3 Screw Diameter 6
