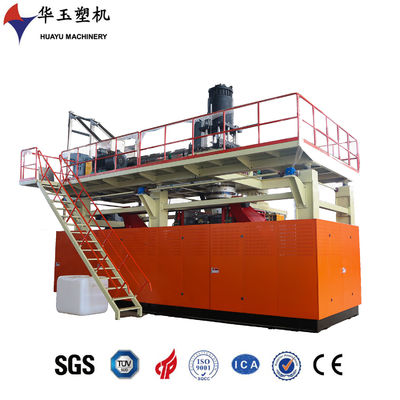

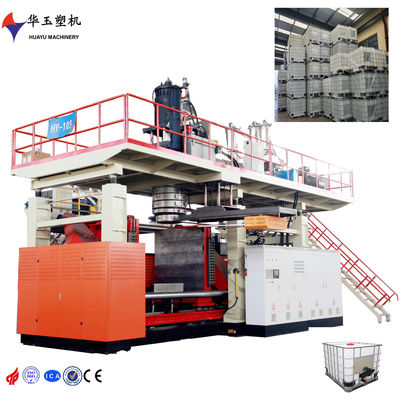

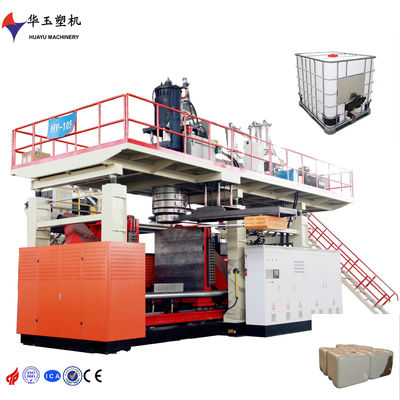

HUAYU HYBM1000L 3Layers Blow Moulding Machine High Speed Good Quality New Type
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM1000L-3Layers blow mouding machine |
| Minimum Order Quantity | 1(set) |
| Price | USD400000~420000 |
| Packaging Details | disassemble into many parts for container transportation |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Weight | 49T | Total Power | 270kw |
|---|---|---|---|
| Applicable Material | HDPE/UHMWPE | Productivity | 15pcs/h |
| Capacity Range | 1000L | Extruder Motor Power | 75kw |
| Screw Diameter | 110mm | Screw L/D Ratio | 30：1 |
| Plasticizing Capacity | 400kg/h | Die Head Heating Power | 90kw |
| Clamping Force | 1200KN | Platen Size | 1700*1800*80mm (W*H*T) |
| Air Seat Stroke | 400mm | Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 1.5m3/min | Servo Motor | 57kw |
| PLC | Siemens | ||
| Highlight | 3Layers blow moulding machine,high speed blow moulding machine,good quality blow moulding machine |
||
Product Description
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12’’
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller’s machine should be passed the ISO9001, CE certification.
