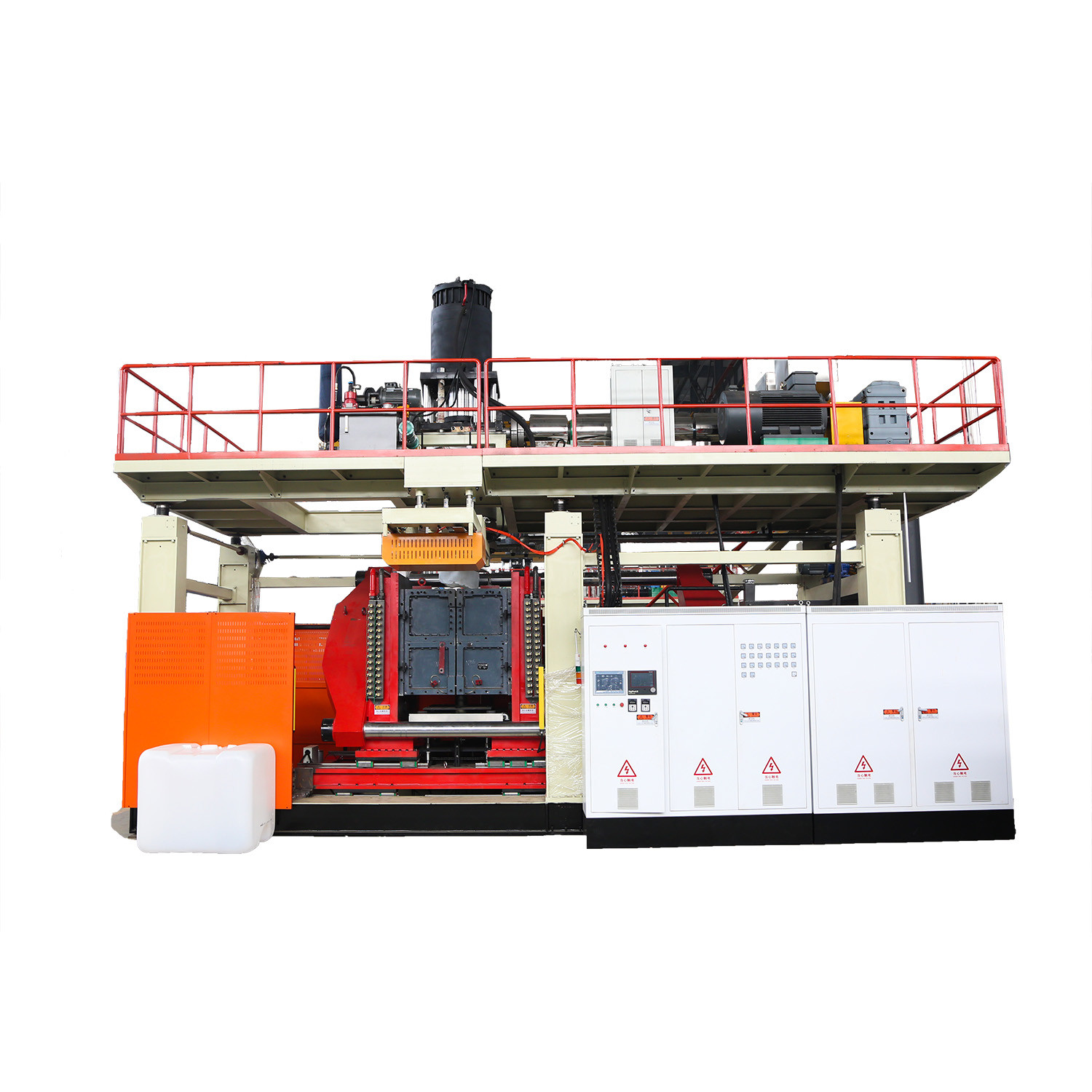

IBC Blow Moulding Machine 3 Layers With Automatic PLC Touch Screen Controller
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HUAYU-IBC-3 |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5-6 months |
| Payment Terms | T/T,L/C |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Screw Dia | 120mm*1 110mm*2 |
|---|---|---|---|
| Automatic | Yes | L/D | 30:1 |
| Total Power | 496.5kw | Platen Size | 1700*1800mm |
| Control System | PLC | Platen Distance | 1100-2500MM |
| Feeder Type | Vacuum Feeder | Screw Barrel Material | 38CrMoAlA，Nitriding |
| Color | Customizable | Controller | PLC+Touch Screen |
| Output | 20PCS/h | Temperature Control | Modular Temperature Control |
| Condition | New | ||
| Highlight | 3 layers IBC Blow Moulding Machine,Automatic PLC IBC Blow Moulding Machine,PLC Controller IBC Blow Moulding Machine |
||
Product Description
Customizable IBC Blow Moulding Machine 3 layers for Specific Production Requirements and Needs
List of device major parameters
|
EXTRUSION |
Whole performance |
Screw Dia |
120mm×1 110mm*2 |
|
L/D |
30:1 |
||
|
Screw material |
38CrMoAlA,Nitriding |
||
|
Feeder Type |
Vaccum Feeder |
||
|
Screw barrel material |
38CrMoAlA,Nitriding |
||
|
Drive mode |
AC-motors |
||
|
Drive power |
110kw×1 / 90kw*2 With independent air cooling |
||
|
HDPE Plasticizing HDPE |
700kg/h About 700kg/h |
||
|
Output |
20PCS/h |
||
|
Heating mode |
Casting aluminum heater,16pcs,6KW/pc |
||
|
Temperature control |
Modular temperature control |
||
|
Cooling mode |
The feeding section is water-cooled with temperature control, and the other sections are air-cooled |
||
|
Barrel parameter |
Feed section structure |
No slot |
|
|
Length of cooling section |
400 mm |
||
|
Die head |
Structural style |
HuaYu patent technology three layers storage cylinder die |
|
|
Max die pin diameter |
700mm |
||
|
Heating mode |
Nanometer insulation material heater,8pcs ,6KW/pc |
||
|
Temperature control |
Modular temperature control |
||
|
Energy configuration |
Extruder driving power |
110KW*1 90kw*2 |
|
|
Hydraulic main system motor power |
48KW Servo motor |
||
|
Wall thickness control motor power |
11KW |
||
|
Heating power of extrusion system |
16pcs 6KW/pc |
||
|
Power of die heating |
8pcs ,6KW/pc |
||
|
Air Supply |
0.8×6(MPa × Cubic meter per minute) |
||
|
Cooling Water Consumption |
0.3×20°×30(MPa × degree × Cubic meter per hour) |
||
|
Total power |
496.5KW |
||
|
Average energy consumption(AEC)
|
About 200 degrees per hour |
||
Supplier details of major parts and components of equipment
Hydraulic parts
|
NAME |
SUPPLIER |
|
Gear pump |
Sumitomo Japan163/cc |
|
Hydraulic valve |
YUKEN Japan |
|
Oil pipes,connections |
Joint venture enterprise |
|
Seals |
TAIWAN DZ |
|
Servo valve |
Japan MOOG |
Electronics
|
NAME |
SUPPLIER |
|
Microcomputer control system |
Siemens PLC Siemens touch screen |
|
Temperature control components |
Siemens automatic temperature control module |
|
Intermediate relay |
France Schneider |
|
Contactor |
France Schneider |
|
Air switch |
France Schneider |
|
Breaker |
France Schneider |
|
Thermorelay |
France Schneider |
|
AC-Motors |
SEIMENS |
|
Inverter |
SEIMENS |
Gear box
|
NAME |
SUPPLIER |
|
Hard toothed gear box |
Flender |
Air control system
|
NAME |
SUPPLIER |
|
Magnetic exchange valve |
Ningbo Shenglong |
Price
|
NO. |
Name |
Description |
QTY |
Price(USD) |
|
1 |
3 Layers IBC Blow Molding Machine |
Made according to the specification agreed with client on the contract |
1 |
440,000 |
|
2 |
Mould |
IBC mould, made of Aluminum alloy |
1 |
70,000 |
|
Total |
|
|
2 |
510,000 |
|
Notice: The above prices are based on FOB Qingdao Port, China. |
||||
Adopts double linear guide rail moving die system , single oil cylinder quick mold closing , reverse double oil cylinder powerful mold locking structure , balanced force , small deformation , fast and stable mold moving.
