Huayu 1000L 1-Layer IBC Blow Moulding Machine Automatic Chemical Packing Blow Moulding Machine for HDPE Plastic
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-IBC-1 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4-6months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| VOLTAGE | ACCORDING | OUTPUT | 450KG/H |
|---|---|---|---|
| TATAOL POWER | 264.5 | MATERIAL | HDPE |
| PLC BRAND | SIEMENS | SCREW DIA | 150MM |
| PLATEN | 1700*1800MM | DIE HEAD HEATING | 60KW |
| RANGE | 1000L IBC TANK | AFTER SALES | OVERSEAS SERVICE |
| LAYERS | 1 LAYER | ||
| Highlight | 1000L IBC Blow Moulding Machine,Automatic Chemical Packing Blow Moulding Machine,HDPE Plastic IBC Blow Moulding Machine |
||
Product Description
HYBM1000L-1 IBC Blow Moulding Machine

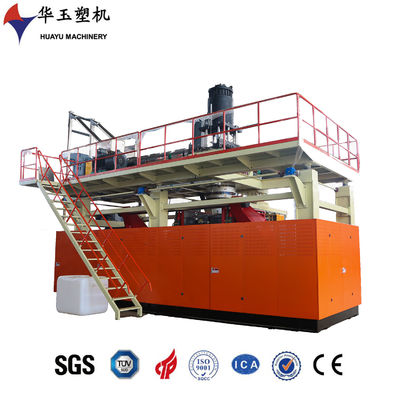

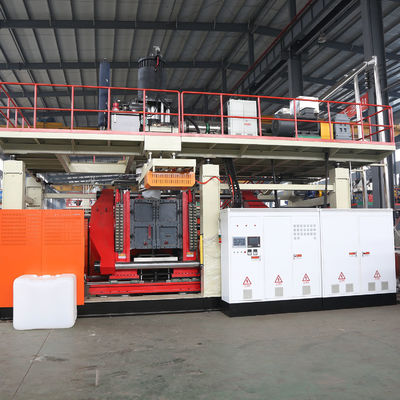

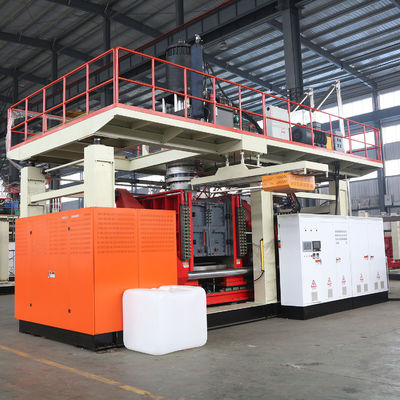

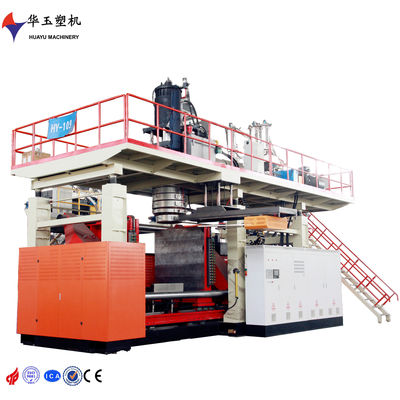

machine photos
Machine specifications
Industry-specific attributes
voltage
According
clamping force (kn)
2000
output (kg/h)
450
Other attributes
plastic processed
HDPE
automation
Automatic
power (kw)
264.5
weight (t)
60
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
place of origin
Shandong, China
brand name
Huayu
dimension(l*w*h)
According
plc brand
Siemens
screw l/d ratio
30
screw diameter (mm)
150
No. of Screw Heating Zone
12
screw heating power(kw)
67.2
extruder motor power(kw)
160
mold platen size(width)(mm)
1700
mold platen size(height)(mm)
1800
air pressure(mpa)
0.8
air comsumption(m³/min)
2.3
die head heating power(kw)
60
key selling points
Competitive Price
Product name
Automatic Blowing Molding Machine
Use
Hollow Moulding
Material
HDPE PE
Range
200-1000
Hydraulic Valve
Japan Yuken
Advantages
20 Years Experiences
After sales
Overseas Service Engineers
CONTROLLER
PLC+Touch Screen
Layer
1-10
Application Field
Liquid Packaging
