Huayu 1000L 2-Layers IBC Blow Moulding Machine Automatic Chemical Packing Blow Moulding Machine for HDPE Plastic
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-IBC-2 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4-6months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| VOLTAGE | ACCORDING | OUTPUT | 600KG/H |
|---|---|---|---|
| TATAOL POWER | 285 | MATERIAL | HDPE |
| PLC BRAND | SIEMENS | SCREW DIA | 120MM |
| PLATEN | 1700*1800MM | DIE HEAD HEATING | 90KW |
| RANGE | 1000L IBC TANK | AFTER SALES | OVERSEAS SERVICE |
| LAYERS | 2 LAYERS | ||
| Highlight | 2-Layers IBC Blow Moulding Machine,Automatic Chemical Packing Blow Moulding Machine,HDPE Plastic IBC Blow Moulding Machine |
||
Product Description
HYBM1000L-2 IBC Blow Moulding Machine

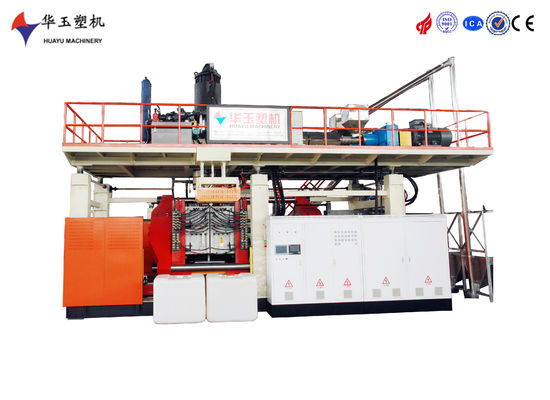

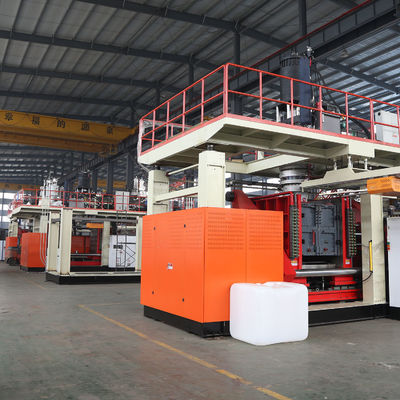

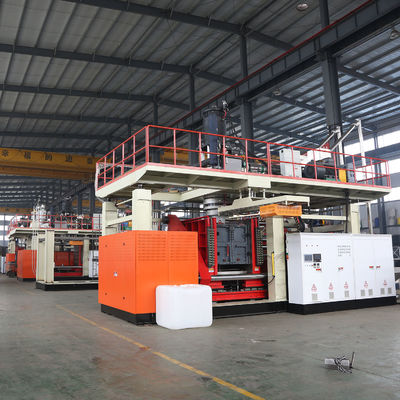

machine photos
Machine specifications
Industry-specific attributes
voltage
Customized
clamping force (kn)
1800
output (kg/h)
600
Other attributes
plastic processed
HDPE
automation
Automatic
power (kw)
245
weight (t)
65
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Gearbox, motor, Pump
place of origin
Shandong, China
brand name
HUAYU
dimension(l*w*h)
8*5.6*6.5M
plc brand
Siemens
screw l/d ratio
30
screw diameter (mm)
120
No. of Screw Heating Zone
5
screw heating power(kw)
90
extruder motor power(kw)
110
mold platen size(width)(mm)
1700
mold platen size(height)(mm)
1800
air pressure(mpa)
0.8
air comsumption(m³/min)
3
die head heating power(kw)
90
key selling points
High Productivity
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
After-sales Service Provided
Engineers available to service machinery overseas
Name
IBC blow moulding machine
Material
HDPE
Power
367.5
Marketing Type
New Product 2025
Key words
Automatic Extrusion Blow Moulding Machine
Suitable bottle
1000L
