Huayu 1000L 3-Layers IBC Blow Moulding Machine Automatic Chemical Packing Blow Moulding Machine for HDPE Plastic
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-IBC-3 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4-6months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| VOLTAGE | DEPENDS | OUTPUT | 700KG/H |
|---|---|---|---|
| TATAOL POWER | 290 | PLC BRAND | SIEMENS |
| SCREW DIA | 120MM | PLATEN | 1700*1800MM |
| DIE HEAD HEATING | 90KW | RANGE | 1000L IBC TANK |
| AFTER SALES | OVERSEAS SERVICE | LAYERS | 3 LAYERS |
| Blow Moulding Type | Extrusion Blow Moulding | CONTROLLER | PLC+Touch Screen |
| Highlight | HDPE Plastic Blow Moulding Machine,Automatic Chemical Packing Blow Moulding Machine,3-Layers IBC Blow Moulding Machine |
||
Product Description
HYBM1000L-3 IBC Blow Moulding Machine

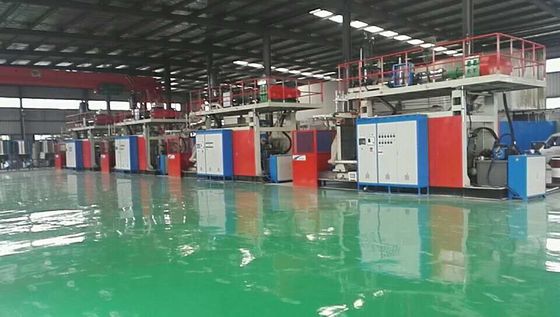

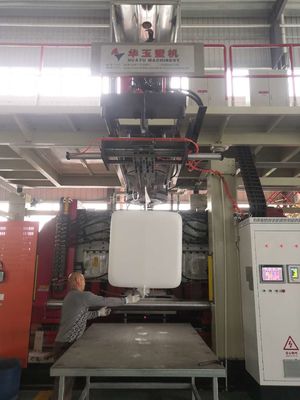

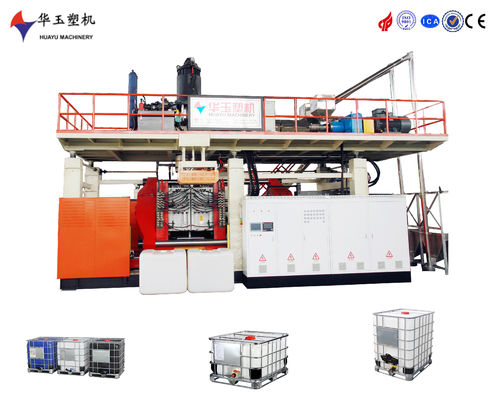

machine photos
Machine specifications
Industry-specific attributes
voltage
380V or customized
clamping force (kn)
1800
output (kg/h)
700 kg/h
Other attributes
plastic processed
HDPE
automation
Automatic
power (kw)
230
weight (t)
70
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
place of origin
Shandong, China
brand name
Huayu
dimension(l*w*h)
10*6.5*7m
plc brand
Siemens
screw l/d ratio
30
screw diameter (mm)
120 mm
No. of Screw Heating Zone
14
screw heating power(kw)
70 kW
extruder motor power(kw)
110 kW
mold platen size(width)(mm)
1800 mm
mold platen size(height)(mm)
1700 mm
air pressure(mpa)
0.8 MPa
air comsumption(m³/min)
6 m³/min
die head heating power(kw)
60 kW
key selling points
Long Service Life Easy To Operate Low Price
Product name
IBC Automatic Blowing Molding Machine
Blow Moulding Type
Extrusion Blow Moulding
Processing Type
Extruding Machine
Keywords
HDPE Extrusion Blow Moulding Machine
Material
HDPE
Use
Hollow Moulding
Production
1000L IBC Tank
CONTROLLER
PLC+Touch Screen
Layer
1-10 Layers
Advantages
Simple Operation Servo motor
