1000L 1layer Water Tank Extrusion Blow Moulding Machine with Screw L/D Ratio 28
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-1000L-1 |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 200-1000L | Product | Water Tank,other Plastic Product |
|---|---|---|---|
| Material | HDPE | Layers | 1 Layer |
| Clamping Force (kN) | 800 | Output (kg/h) | 200 |
| Warranty Of Core Components | 1 Year | Automation | Automation |
| Voltage | 380 V/50 Hz Or Customized | PLC Brand | Siemens |
| Screw L/D Ratio | 28 | ||
| Highlight | 1layer Water Tank Blow Moulding Machine,1000L Water Tank Blow Moulding Machine |
||
Product Description

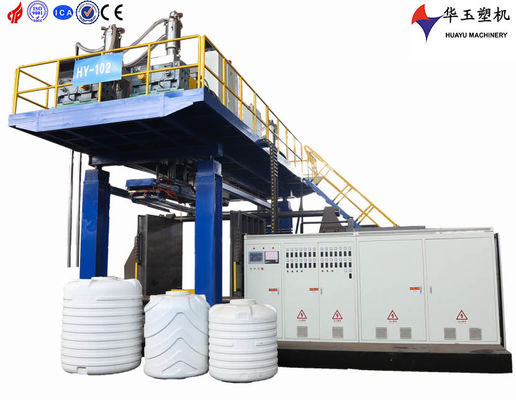

HY-1000L-1 water tank blow moulding machine
Industry-specific attributes
Clamping Force (kN)
800
Output (kg/h)
200 kg/h
Other attributes
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed
HDPE
Place of Origin
Shandong, China
Automation
Automatic
Power (kW)
196.5
Weight (T)
30
Key Selling Points
Long Service Life, Easy To Operate
Warranty
1 Year
Applicable Industries
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Manufacturing Plant, Restaurant, Other
Showroom Location
Egypt, Turkey, United States, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Chile, Algeria, Sri Lanka, Romania, Bangladesh, Nigeria, Malaysia
Application
plastic product
Brand Name
Huayu
Year
2023
Voltage
380 V/50 Hz or customized
Dimension(L*W*H)
7.2*4.8*5.2m
Hollow part volume
200-1000L
PLC Brand
Siemens
Screw L/D Ratio
28
Screw diameter (mm)
110 mm
Screw Heating Power(kW)
16 kW
Extruder Motor Power(kW)
75 kW
Mold Platen Size(Width)(mm)
1500 mm
Mold Platen Size(Height)(mm)
1700 mm
Air Pressure(MPa)
0.8 MPa
Air Comsumption(m³/min)
1.5 m³/min
Die Head Heating Power(kW)
80 kW
Accumulator Capacity(L)
50 L
Blow Moulding Type
Extrusion Blow Moulding
Product name
Automatic Blowing Molding Machine
After-sales Service Provided
Service Machinery Overseas
Key words
HDPE Extrusion Blow Moulding Machine
Production
Hdpe Extrusion Blow Molding Machine
Blow Molding Type
Extrusion Blowing Mold Machine
Application Field
Liquid Packaging
Keywords
Bottle Blow Molding
Use
Hollow Moulding
Advantages
20 Years Experiences
Packaging and delivery
Packaging Details
Port
Container transport to Qingdao port ,China.
Packaging
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
Shipping marks
The seller tags the shipping marks on machine parts as the buyer's request.
Container transport to Qingdao port ,China.
Packaging
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
Shipping marks
The seller tags the shipping marks on machine parts as the buyer's request.
Port
Qingdao
Supply Ability
Supply Ability
40 Set/Sets per Year
