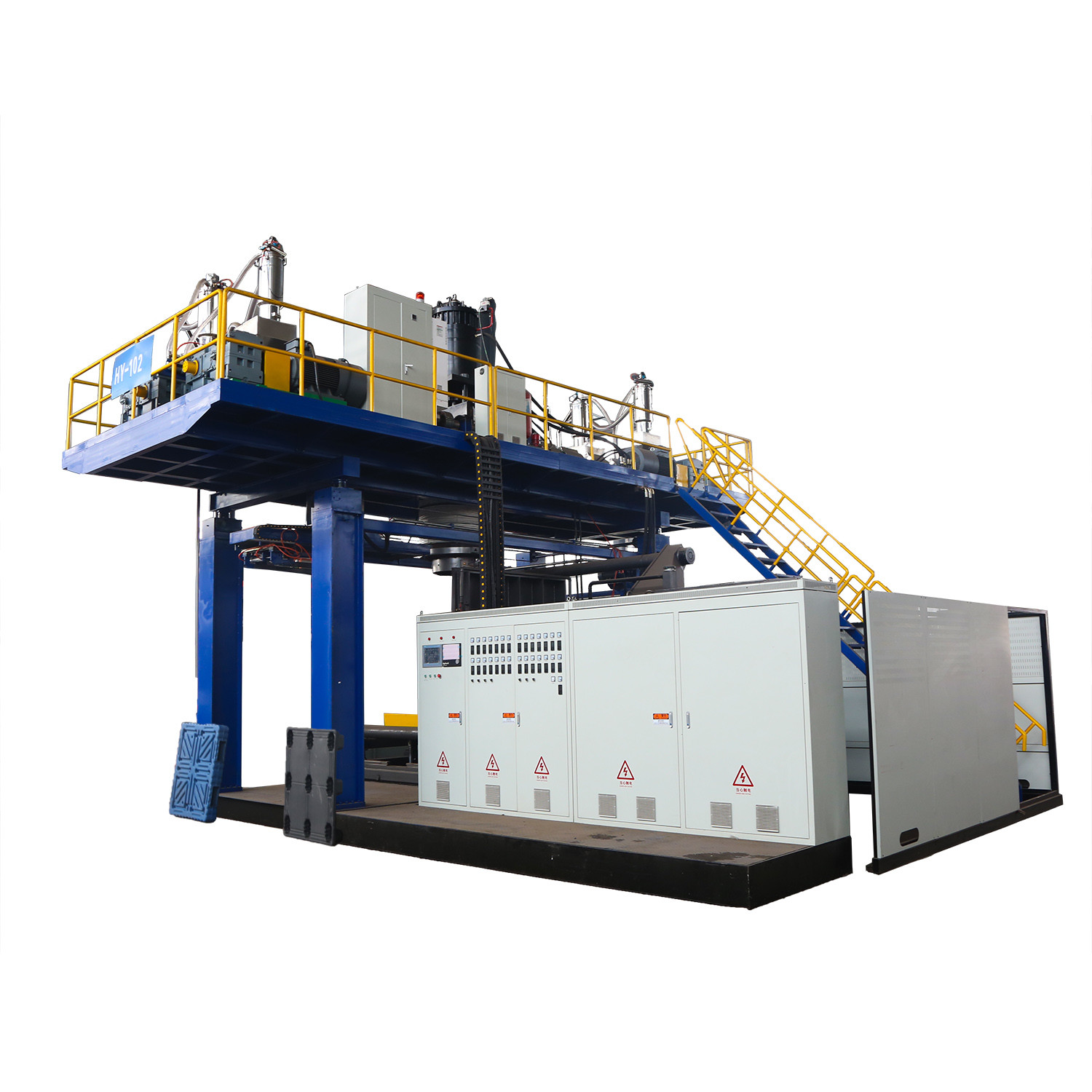

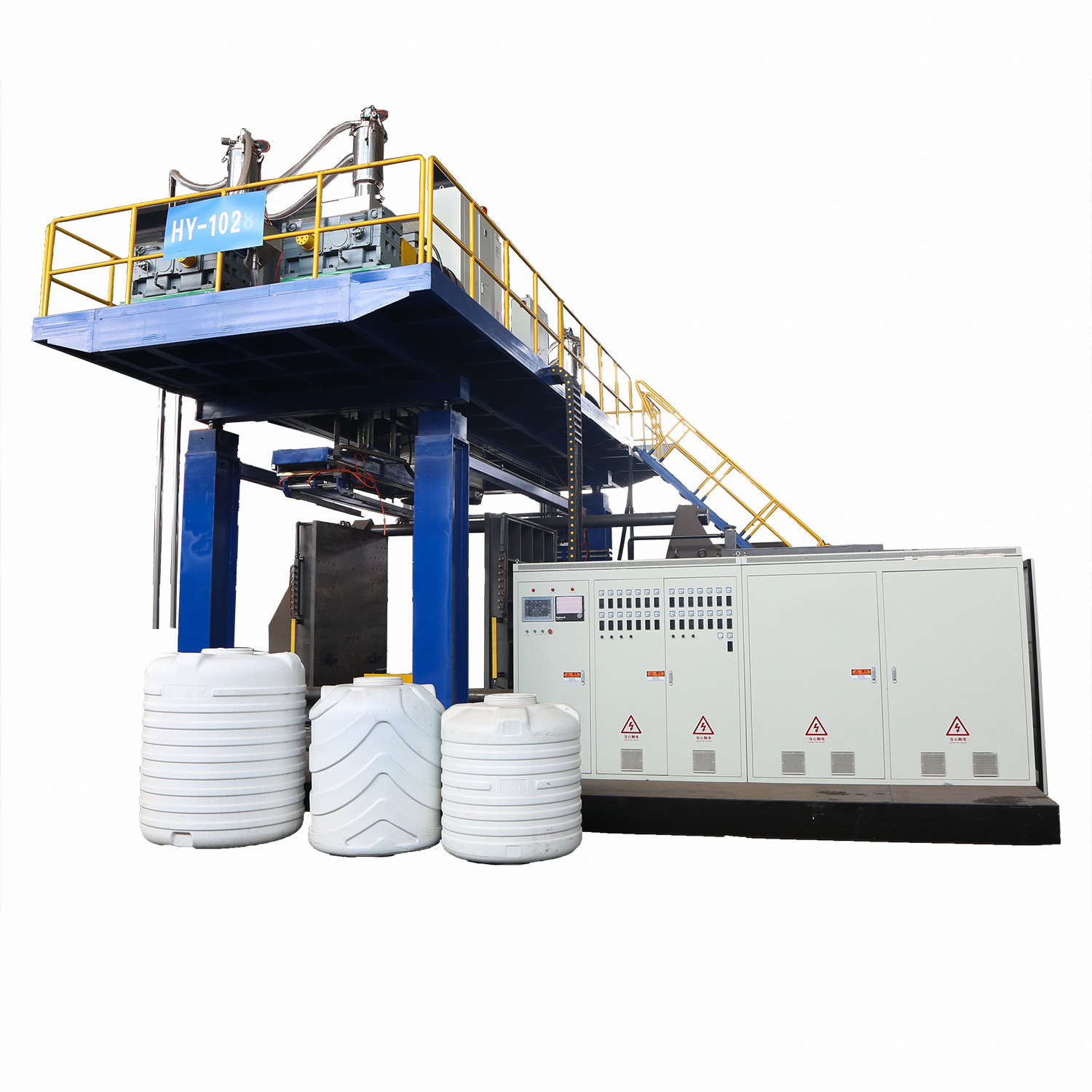

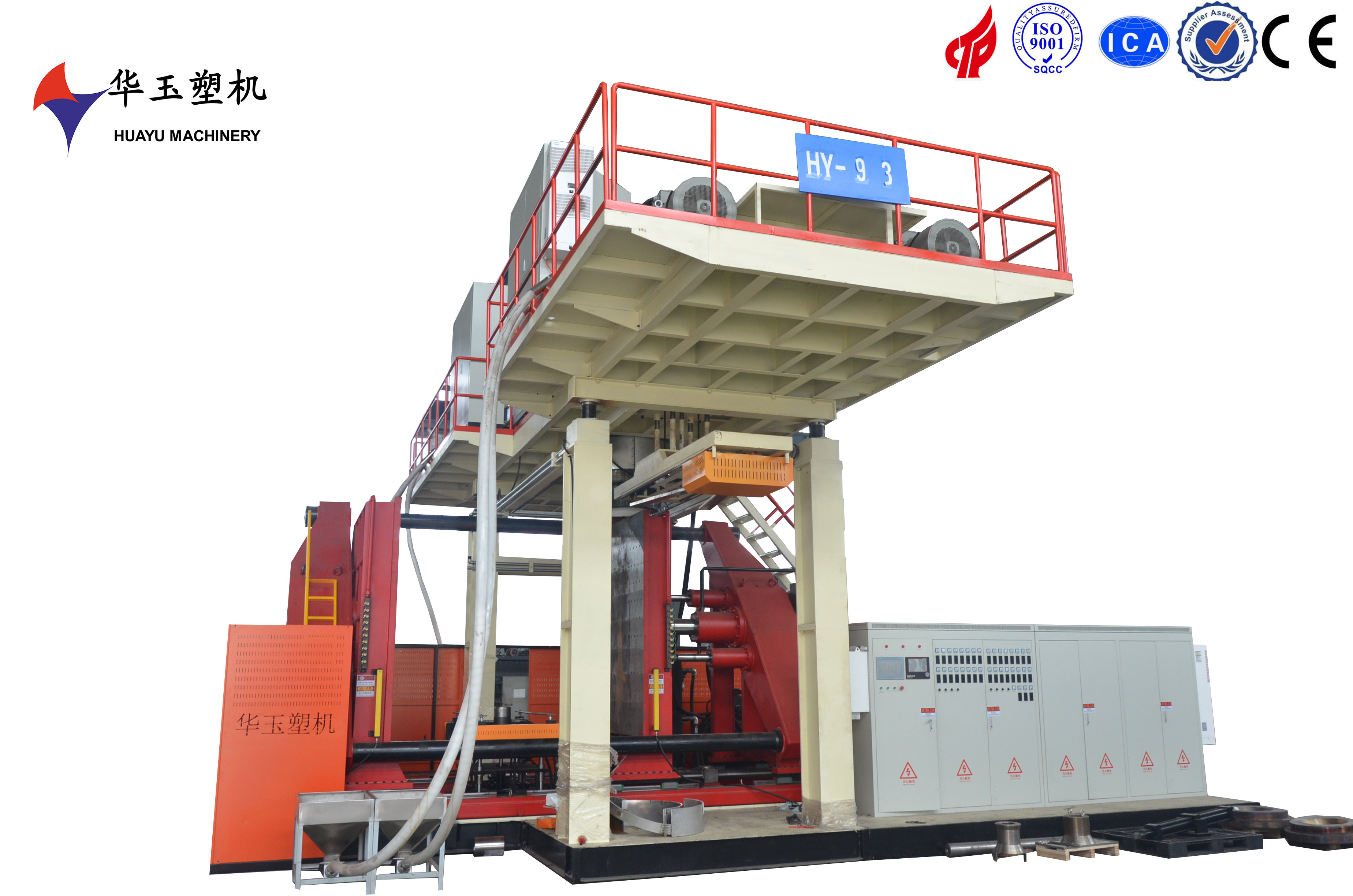

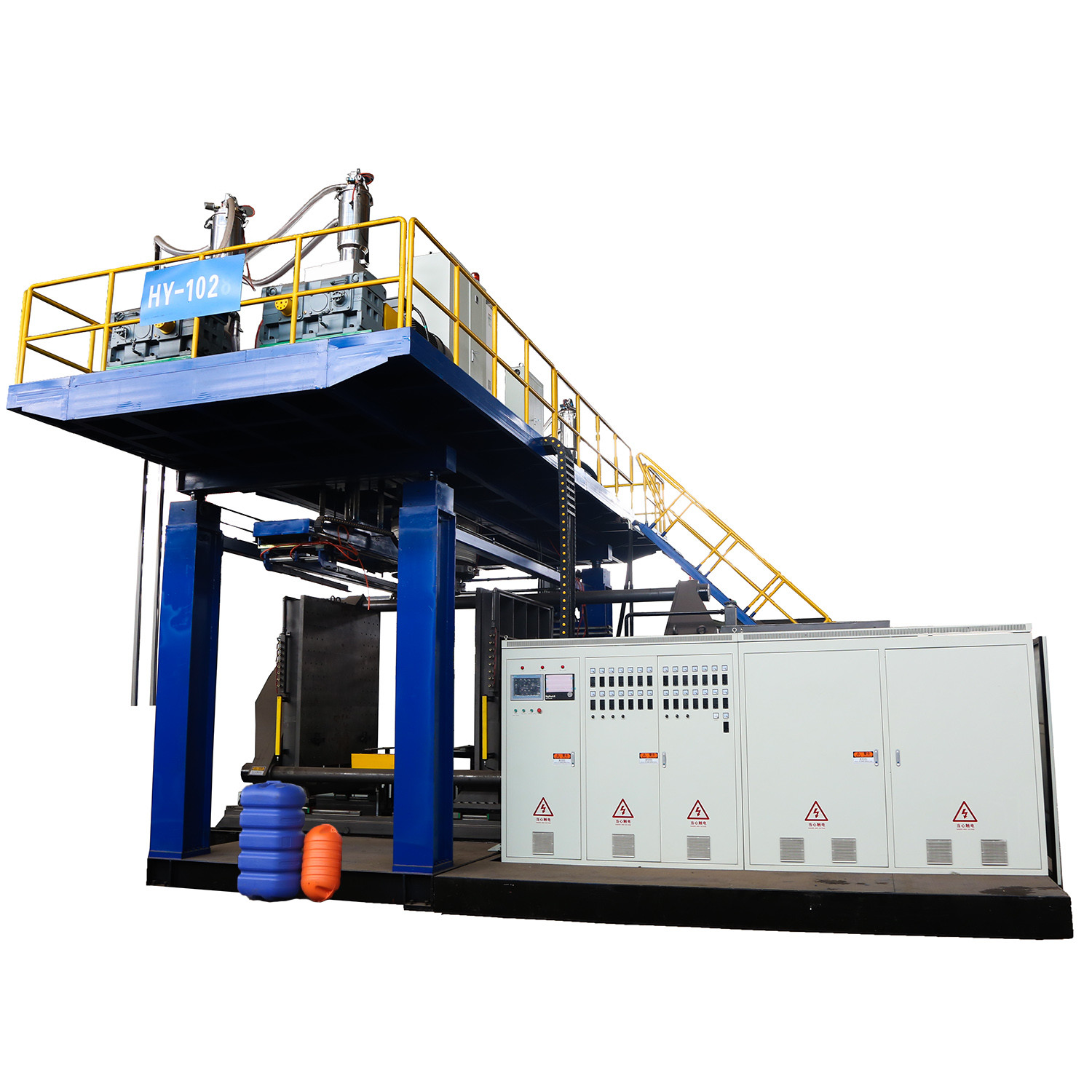

800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers

  • 800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers
  • 800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers
  • 800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers
  • 800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers
  • 800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers
  • 800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers
Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001, CE
Model Number HYBM1000L-4Layers blow moulding machine
Minimum Order Quantity 1(set)
Price USD220000~240000
Delivery Time 5 months
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total Weight 50T Total Power 386kw
Productivity 16-25pcs/h Screw Diameter 90/90/90/90mm
Screw L/D Ratio 28:1 Extruder Motor 45/45/45/45kw
Screw Heating Power 4.4kw*16 Plasticizing Capacity 400kg/h
Accumulator Capacity 35kg Die Head Heating Power 90kw
Clamping Force 800KN Air Consumption 1.5m3/min
Maximum Air Pressure 0.8Mpa Motor Siemens
PLC Siemens
Highlight

800KN Extruder Blow Moulding Machine

,

4LAYERS Extruder Blow Moulding Machine

,

Plastic Containers Blow Moulding Machine
Leave a Message
Product Description

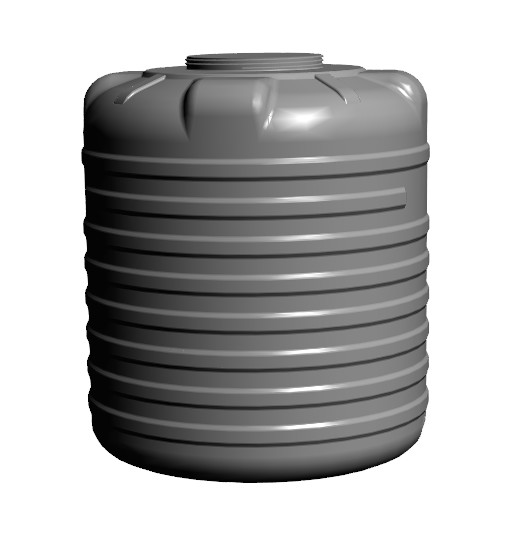

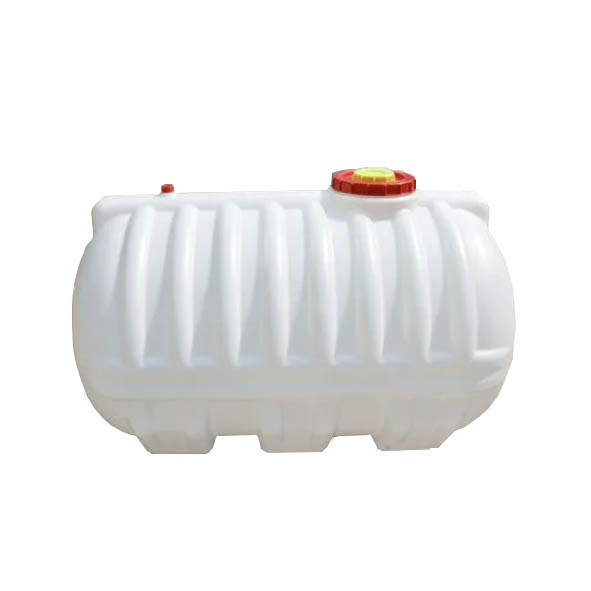

1000L 4 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 200~1000L. Otherwise can be designed for producing non-standard products according to customer’s request.

Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12’’
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller’s machine should be passed the ISO9001, CE certification.800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 0800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 1800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 2800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 3800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 4800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 5800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 6800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 7800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 8800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 9800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 10800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 11800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 12800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 13800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 14800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 15800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 16800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 17800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 18800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 19800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 20800KN HYBM1000L-4LAYERS Extruder Blow Moulding Machine for 4-Layer Plastic Containers 21
