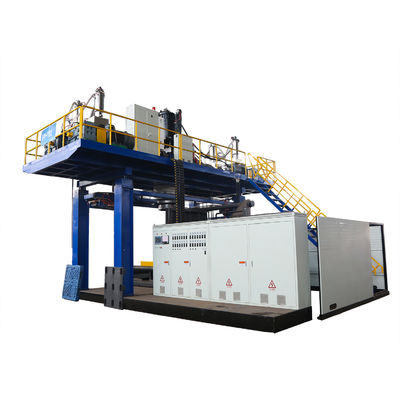

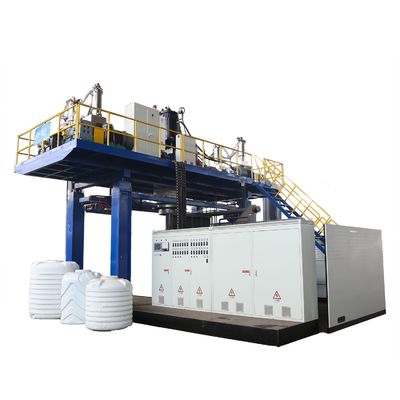

HUAYU 1000L Water Tank Blow Moulding Machine Plastic Container Production with 90kw Extruder Motor and 120mm Screw Diameter
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY1000L-1layers blow mouding machine |
| Minimum Order Quantity | 1(set) |
| Price | USD180000~200000 |
| Packaging Details | disassemble into many parts for container transportation |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Weight | 29T | Voltage | Pending |
|---|---|---|---|
| Total Powe | 200kw | Machine Dimension | 8*5.6*6.5 |
| Productivity | 16-25pcs/h | Screw Diameter | 120mm |
| Screw L/D Ratio | 28：1 | Extruder Motor | 90kw |
| Plasticizing Capacity | 300kg/h | Accumulator Capacity | 35kg |
| Die Head Heating Power | 40kw | Platen Size | 1500*1600*60mm |
| Clamping Cylinder Stroke | 1500mm | Clamping Force | 800KN |
| Maximum Air Pressure | 0.8Mpa | Air Consumption | 1.0m3/min |
| Water Pressure | 0.3MPa | ||
| Highlight | Plastic Container Blow Moulding Machine,1000L Water Tank Blow Moulding Machine,90kw Water Tank Blow Moulding Machine |
||
Product Description

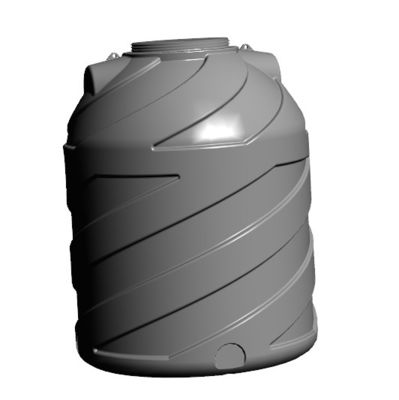

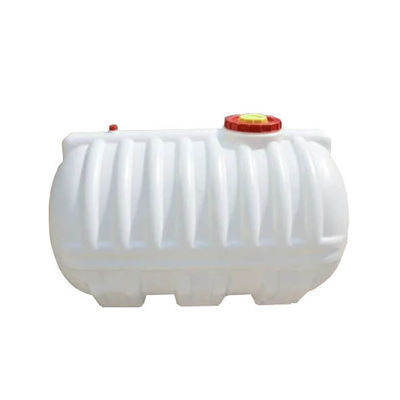

1000L 1 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 200~1000L. Otherwise can be designed for producing non-standard products according to customer’s request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12’’
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller’s machine should be passed the ISO9001, CE certification.
