2000L 10-layers Water Tank Extrusion Blow Molding Machine with 380kg/h Output from Huayu
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-2000L |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Huayu | Clamping Force (kN) | 1800 |
|---|---|---|---|
| Output (kg/h) | 380 | Warranty Of Core Components | 1 Year |
| Plastic Processed | Hdpe | Automation | Automation |
| Application | Plastic Product | Voltage | Customerized |
| Hollow Part Volume | 500-2000L | Mold Platen Size(Width)(mm) | 1800 |
| Mold Platen Size(Height)(mm) | 2100 | ||
| Highlight | 10-layers Water Tank Blow Moulding Machine,Water Tank Extrusion Blow Molding Machine,2000L Water Tank Blow Moulding Machine |
||
Product Description

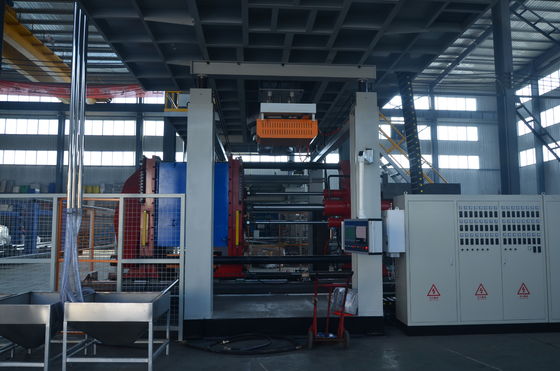

HY-2000L water tank blow moulding machine
Key attributes
Industry-specific attributes
Clamping Force (kN)
1800
Output (kg/h)
380 kg/h
Other attributes
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed
HDPE
Place of Origin
Shandong, China
Automation
Automatic
Power (kW)
260
Weight (T)
38
Key Selling Points
Competitive Price
Warranty
1 Year
Applicable Industries
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Manufacturing Plant, Restaurant, Other
Showroom Location
Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, South Korea, Chile, Algeria, Sri Lanka, Romania, Bangladesh, Nigeria, Malaysia
Application
plastic product
Brand Name
Huayu
Year
2024
Voltage
380 V/50 Hz or customized
Dimension(L*W*H)
9.5*5.5*7.2
Hollow part volume
500-2000L
PLC Brand
Siemens
Screw L/D Ratio
28
Screw diameter (mm)
130 mm
Screw Heating Power(kW)
16 kW
Extruder Motor Power(kW)
132 kW
Mold Platen Size(Width)(mm)
1800 mm
Mold Platen Size(Height)(mm)
2100 mm
Air Pressure(MPa)
0.8 MPa
Air Comsumption(m³/min)
2.3 m³/min
Die Head Heating Power(kW)
60 kW
Accumulator Capacity(L)
90 L
Name
2000L water tank extrusion blow molding machine
Blow Moulding Type
Extrusion Blow Moulding
Range
500L-2000L
Layer
10Layers
Advantages
20 Years Experiences
Key words
servo motor
After-sales Service Provided
Service Machinery Overseas
CONTROLLER
PLC+Touch Screen
Keywords
Extrusionb Blow Molding Machine
Material
HDPE
Lead time
| Quantity (sets) | 1 - 3 | > 3 |
| Lead time (days) | 150 | To be negotiated |
