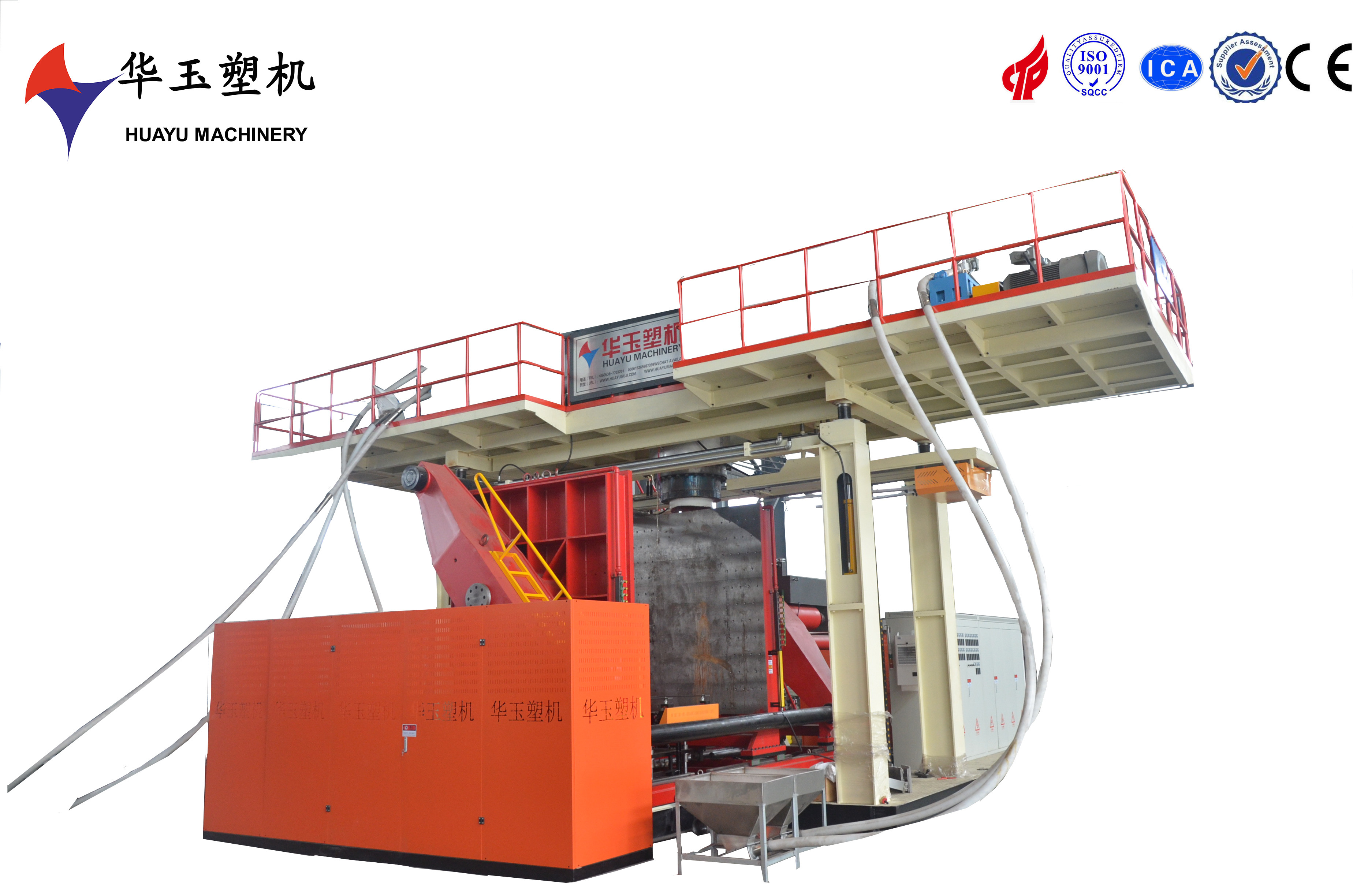

12 Layers Blow Molding Machine For Water Tank 500-2000L
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | Hua Yu |
| Certification | CE, ISO9001 |
| Model Number | HYBM 2000-12 |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C,T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Material | HDPE | Capacity Range | 500-2000L,12layers |
|---|---|---|---|
| Voltage | Pending | Total Power | 648.5kw |
| Average Power | 320kw | Productivity | 10-24pcs/h |
| Hopper Material | Stainless Steel | Feeding Type | Vacuum Loaded |
| Feeding Motor | 11kw*2 | Screw Diameter | 100mm*7 |
| Highlight | 12 Layers blow molding machine for water tank,2000L blow molding machine for water tank,500L blow moulding machine for water tanks |
||
Product Description
500-2000l Water Tank Blow Moulding Machine with 12 Layers for High-Performance Products
HYBM2000-12 ( With 7 extruder )
Machine specification table of 2000L -12layers
|
Basic Specification |
||
|
applicable material |
HDPE |
China·HUAYU |
|
capacity range |
500-2000L,12layers |
|
|
Voltage |
Pending |
|
|
total power |
648.5kw |
|
|
average power |
320kw |
|
|
productivity |
10-24pcs/h |
|
|
Auto Feeder |
||
|
hopper material |
stainless steel |
Stable performance, easy maintenance |
|
feeding type |
vacuum loaded |
|
|
feeding motor |
11kw*2 |
|
|
Extrusion System |
||
|
Screw diameter |
100mm*7 |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
55kw*7 |
|
|
Reducer |
280*7 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4kw*28 |
|
|
Plasticizing capacity |
950kg/h |
|
|
die head |
||
|
Accumulator capacity |
60kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
140kw |
|
|
Clamping System |
||
|
platen size |
1800*2000*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
140*2+300 |
|
|
clamping cylinder stroke |
2000mm |
|
|
clamping force |
1800KN |
|
|
distance between platens |
1000-3000mm |
|
|
max. mould size |
1600*2000mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
2.3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
3m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1200L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump163CC |
|
|
main oil pump motor |
48kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
|
Electronic system |
||
|
Main operation panel |
Touch screen 12" |
|
|
Control system |
PLC |
|
|
Thickness control points |
200 points |
|
|
Temperature control |
PLC module |
|
|
main frame |
||
|
Up/down stroke |
500mm |
|
|
Up/down motor |
4kw |
|
|
Main parts brand |
||
|
motor |
Siemens |
Germany |
|
Inverter |
Siemens |
Germany |
|
Touch screen |
Siemens |
Germany |
|
PLC |
Siemens |
Germany |
|
Thickness controller |
MOOG |
Japan |
|
Servo valve |
MOOG |
Germany |
|
oil pump/valve |
YUKEN |
Japan |
|
gear box |
Guomao |
China |
|
Low-voltage apparatus |
Schneider/Fuji/Omron |
|
|
Displacement pickup |
Jefran |
Italy |
|
Hydraulic oil seal |
DZ |
Taiwan |
|
Intermediate relay |
Schneider |
France |
|
Contactor |
Schneider |
France |
|
Air switch |
Schneider |
France |
|
Circuit breaker |
Schneider |
France |
|
Thermal relay |
Schneider |
France |
|
Alternating current dynamo |
Siemens |
Germany |
2000L 12 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 500~2000L. Otherwise can be designed for producing non-standard products according to customer’s request.The above prices are based on FOB Qingdao Port, China.
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The Hua Yu Blow Machine of 2000L-12layers , its applicable material is HDPE. Its capacity range is 500-2000L,12 layers. Its voltage is pending.Its total pawer is 648.5kw.
