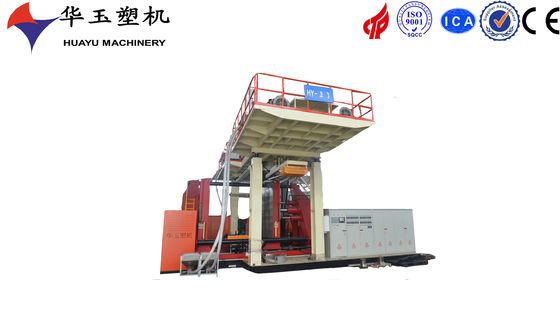

Technical Advantages of Huayu 2000L 4-Layer Blow Molding Machine with intelligent automation
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY2000L-4Layer |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Oil Pump Motor | 45kw | Main Oil Pump | Gear Pump 160cc |
|---|---|---|---|
| Main Oil Tank Capacity | 1200L | Cooling Water Consumption | 60 Cubic Meters Per Hour |
| Water Pressure | 0.3MPa | Cooling Method | Circulating Water |
| Air Consumption | 2.3 Cubic Meters Per Minute | Maximum Air Pressure | 0.8Mpa |
| Air Seat Stroke | 400mm | Blow Pin Up/down Stroke | According To Products |
| Highlight | Intelligent Automation Blow Molding Machine,4-Layer Blow Molding Machine,2000L Blow Molding Machine |
||
Product Description
Technical Advantages of Huayu 2000L 4-Layer Blow Molding Machine
Multi-layer co-extrusion technology:
The advanced 4-layer structure combines different materials to achieve optimal balance between high barrier properties (O2/H2O) and mechanical strength. Inner layer uses FDA-compliant food-grade materials, while UV-resistant outer layer extends outdoor service life.
Intelligent automation:
Equipped with Siemens PLC system for closed-loop control, boosting productivity by 30%. ±1℃ temperature control accuracy reduces energy consumption by 25%. 12-group parameter memory in touchscreen interface.
Modular engineering:
Quick-change die system enables product switch within 2 hours for IBC totes/chemical containers. Rexroth hydraulic system provides 3500kN clamping force ensuring precision molding.
Eco-efficiency:
Thermal recovery system cuts emissions by 40%. Servo motors save 35% energy with <75dB noise. Material utilization exceeds 98.5%.
Specifically engineered for 2000L industrial containers, ideal for chemical, food and pharmaceutical industries with smart manufacturing solutions.
| clamping force | 1800KN | |
| distance between platens | 1000-3000mm | |
| max. mould size | 1600*2000mm(W*H) | |
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 600mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
| air consumption | 2.3m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 60m3/h | |
| Hydraulic system | ||
| main oil tank capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| main oil pump | gear pump160CC | |
| main oil pump motor | 45kw | |
| Servo oil tank capacity | 200L | |
| Servo oil pump model | Plunger pump22 | |
| Servo oil pump motor | 7.5kw | |
