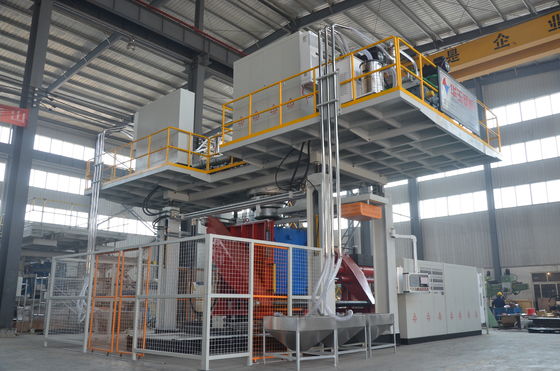

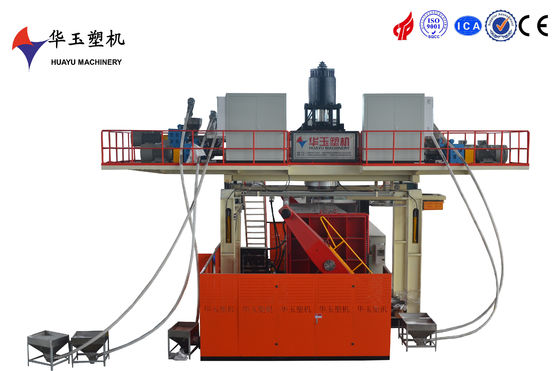

HUAYU 2000-3Blow Moulding Machine - Portable Solution for On-Site Large Plastic Manufacturing
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM2000-3 |
| Minimum Order Quantity | 1 |
| Price | 240000USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Weight | 50T | Controller | PLC+Touch Screen |
|---|---|---|---|
| Average Power | 310kw | Reducer | 315/375/315 |
| Weight | 40Ton | Cooling Method | Circulating Water |
| Hollow Part Volume | 500-2000L | Platen Size | 1800*2200*70mm |
| Clamping Cylinder Stroke | 2000mm | Water Pressure | 0.3MPa |
| Production Capacity | 10-15 Pieces Per Hour | Blowing Type | Extrusion Blow Moulding |
| Cooling Water Consumption | 60m3/h | Accumulator Capacity | 60kg |
| Feeding Motor | 5.5kw | ||
| Highlight | huayu blow molding water tank,huayu water tank blow moulding machine,2000 blow molding water tank |
||
Product Description
The HUAYU2000L-3 Blow Moulding Machine represents the pinnacle of innovation in plastic manufacturing. Designed for large-scale production, it offers a perfect balance between efficiency and quality. Its automated control system ensures seamless operation and reduced human intervention, enhancing productivity. The machine’s ability to produce uniform wall thickness in plastic drums is a testament to its advanced engineering. With low energy consumption and high output, it stands out in the market. The robust construction and advanced safety features make it a trustworthy choice for industrial plastic production.
|
Extrusion System |
||
|
diameter |
110/130/110mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
75/110/75kw |
|
|
Reducer |
315/375/315 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4.4kw*15 |
|
|
Plasticizing capacity |
700kg/h |
|
|
die head |
||
|
Accumulator capacity |
60kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
90kw |
|
