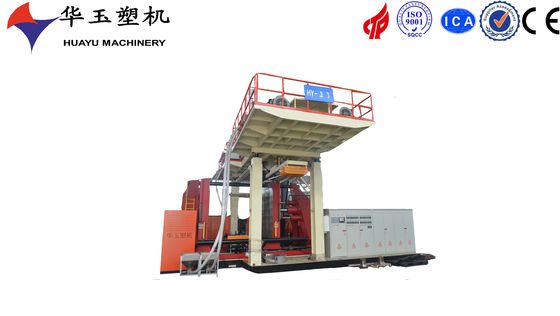

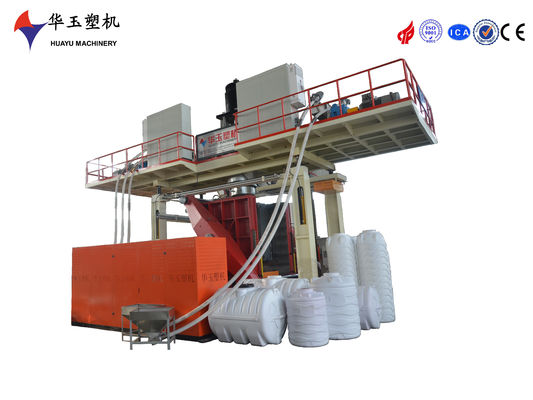

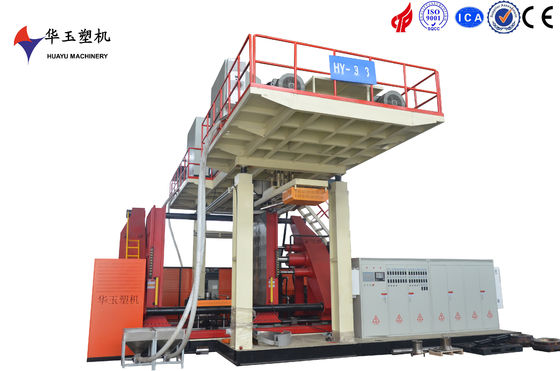

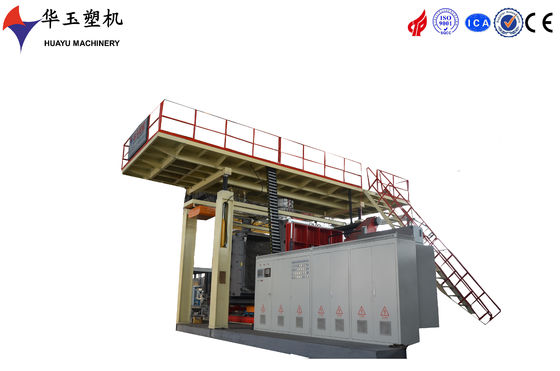

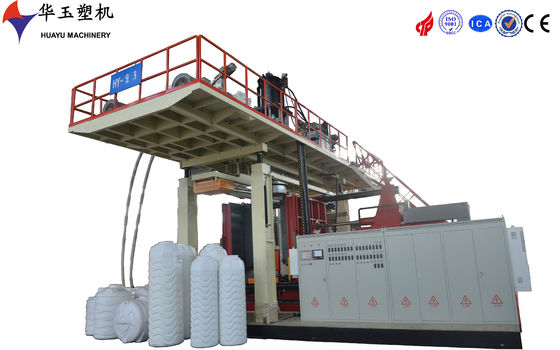

HUAYU 2000-4 Blow Moulding Machine: Energy-Saving Technology for Large Plastic Containers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM2000-4 |
| Minimum Order Quantity | 1 |
| Price | 240000USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1 SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Productivity | 10-24pcs/h | Blow Molding Type | Continuous Extrusion |
|---|---|---|---|
| Servo Valve | MOOG | Material | Plastic |
| Extruder Motor | 55/110/55kw | Intermediate Relay | Schneider |
| Frequency | 50-60Hz | Cooling Water Pressure | 0.3-0.6MPa |
| Use | Water Tank | Warranty | 1 Year |
| Automation Grade | Automatic | Product | 500-2000L Plastic Product |
| Feeding Motor | 2.2kw*6 | Plastic Processed | HDPE、PE |
| Maximum Air Pressure | 0.8Mpa | ||
| Highlight | huayu blow molding water tank,huayu water tank blow moulding machine,2000 blow molding water tank |
||
Product Description
Discover the HUAYU2000L-4 Blow Moulding Machine, a powerhouse for manufacturing large plastic drums. This machine is equipped with state-of-the-art technology that ensures high-speed production without sacrificing quality. Its compact yet robust design makes it suitable for various industrial environments. The precision in every manufacturing step results in products with excellent dimensional stability. The energy-efficient design reduces operational expenses, while the easy-to-use interface allows for quick setup and adjustments. A top choice for businesses looking to boost their plastic container production capacity.
|
die head |
||
|
Accumulator capacity |
60kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
100kw |
|
|
Clamping System |
||
|
platen size |
1900*2000*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
200+280*2 |
|
|
clamping cylinder stroke |
2000mm |
|
|
clamping force |
1800KN |
|
|
distance between platens |
1000-3000mm |
|
|
max. mould size |
1600*2000mm(W*H) |
|
