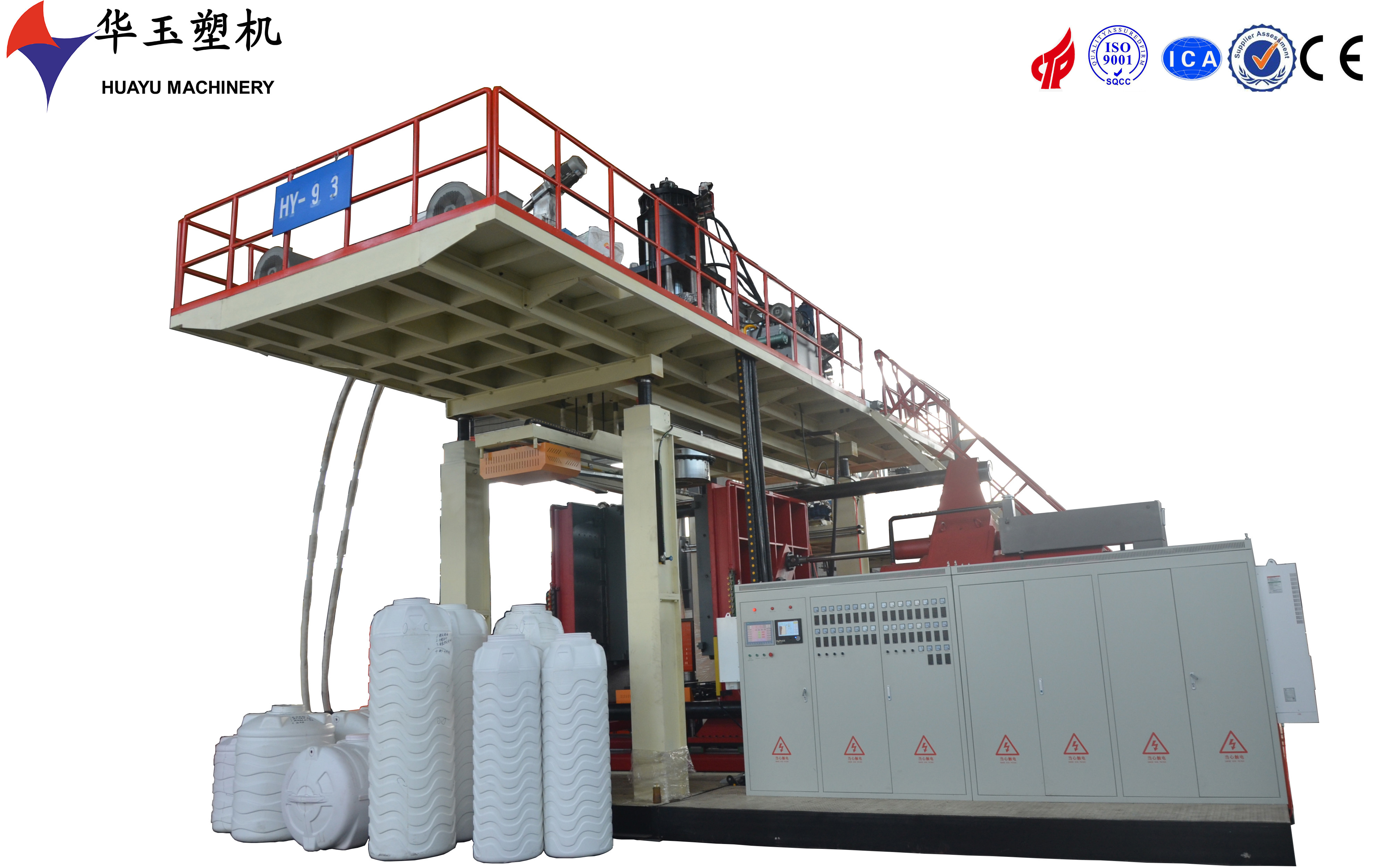

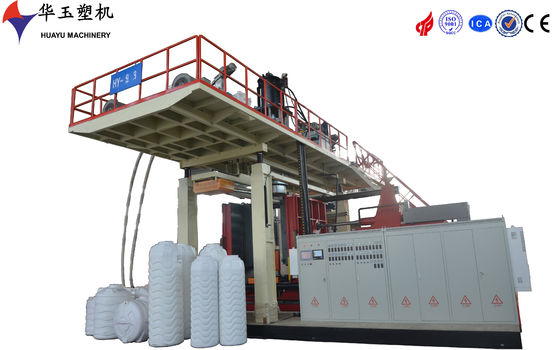

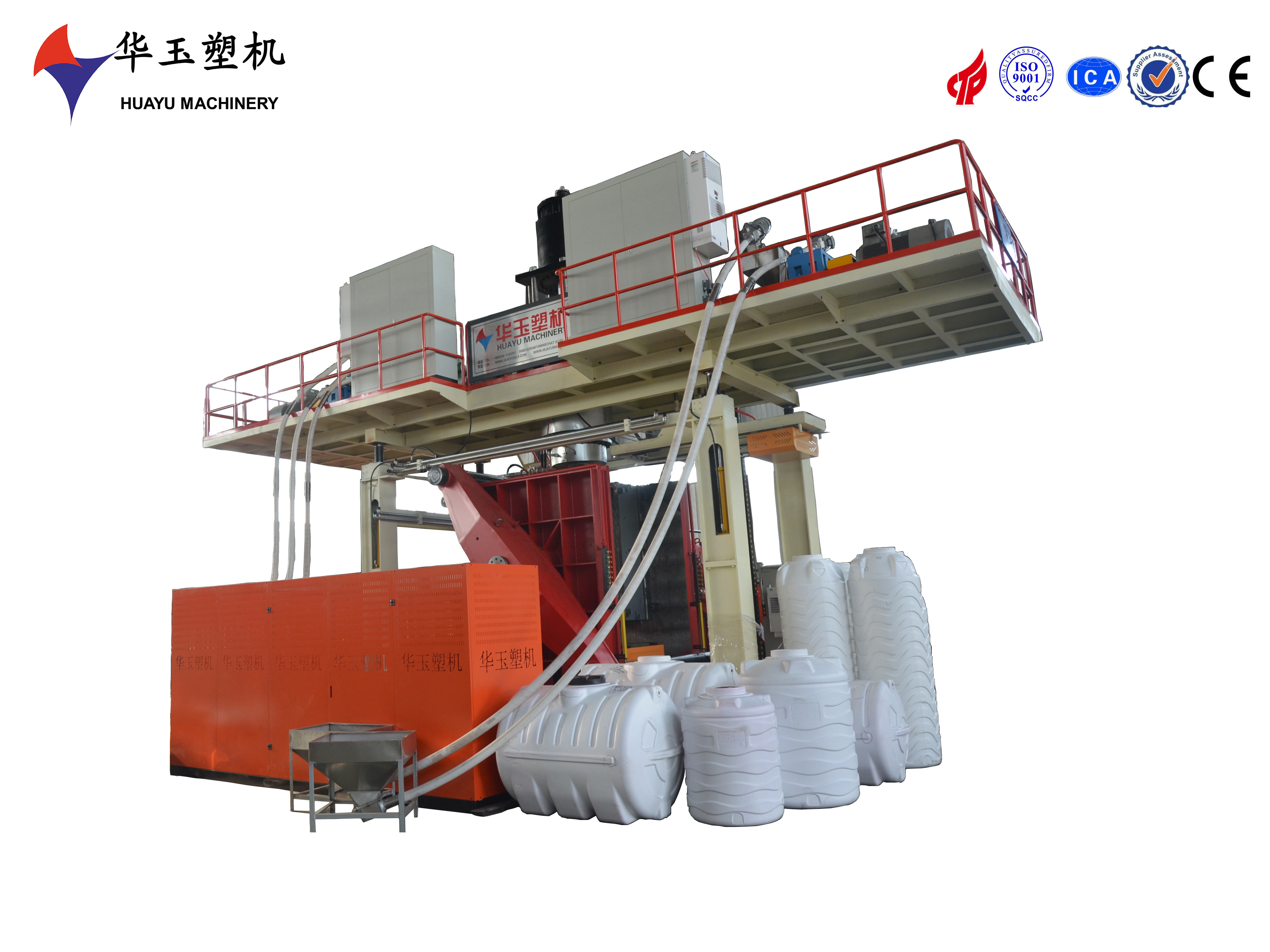

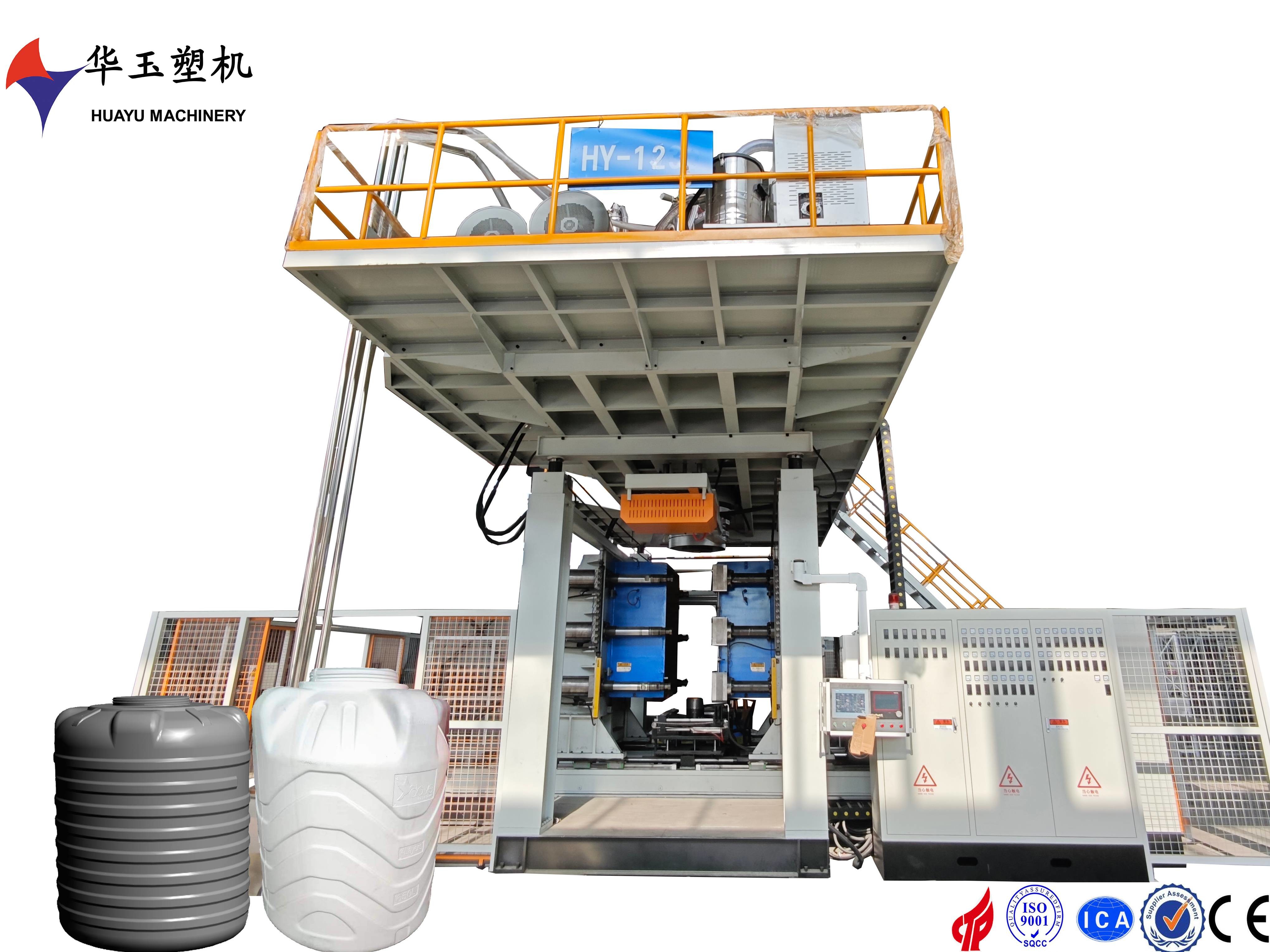

Automatic 3000-5000L Plastic Water Tank Blow Moulding Machine High Speed
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,ISO,TUV |
| Model Number | HYBM-3000L |
| Minimum Order Quantity | 1 SETS |
| Price | Negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40 sets per year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hollow Part Volume | 500-3000L | Product Name | Automatic Blowing Molding Machine |
|---|---|---|---|
| Key Words | Servo Motor, Remote Control | CONTROLLER | PLC+Touch Screen |
| Available Production | Water Tank, Other Plastic Product | Layer | 1-10Layers |
| Highlight | 5000L plastic water tank blow moulding machine,3000L plastic water tank blow moulding machine,High Speed automatic blow moulding machine |
||
Product Description
Huayu new type 3000-5000L water tank blow moulding machine multi layers
Key attributes
Industry-specific attributes
Clamping Force (kN)
2200
Output (kg/h)
580 kg/h
Other attributes
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed
HDPE
Place of Origin
Shandong, China
Automation
Automatic
Power (kW)
687
Weight (T)
50
Key Selling Points
Long Service Life
Warranty
1 Year
Applicable Industries
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Manufacturing Plant, Restaurant, Other
Showroom Location
Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, Pakistan, India, Mexico, Thailand, South Korea, Chile, Algeria, Sri Lanka, Romania, Bangladesh, Nigeria, Malaysia
Application

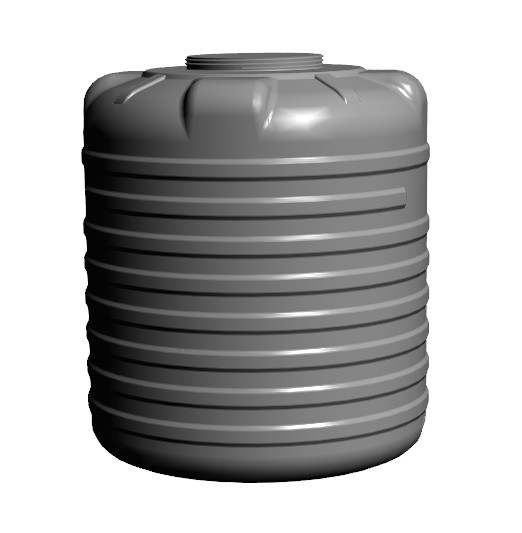

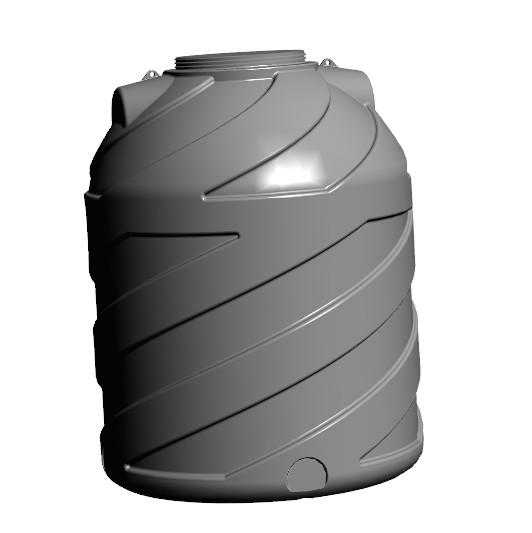

water tank and other plastic product
Brand Name
Huayu
Year
2023
Voltage
380V or customized
Dimension(L*W*H)
12.5*12*7.8m
Hollow part volume
500-3000L
PLC Brand
Siemens
Screw L/D Ratio
28
Screw diameter (mm)
110 mm
No. of Screw Heating Zone
24
Screw Heating Power(kW)
96 kW
Extruder Motor Power(kW)
75 kW
Mold Platen Size(Width)(mm)
2100 mm
Mold Platen Size(Height)(mm)
2200 mm
Air Pressure(MPa)
0.8 MPa
Air Comsumption(m³/min)
3 m³/min
Die Head Heating Power(kW)
90 kW
Accumulator Capacity(L)
135 L
Product name
Automatic Blowing Molding Machine
After-sales Service Provided
Service Machinery Overseas
Key words
Servo motor, remote control
Blow Moulding Type
Extrusion Blow Moulding
Range
500-3000L
Certification
CE ISO TUV
CONTROLLER
PLC+Touch Screen
Available production
water tank, other plastic product
Layer
1-10Layers
Material
HDPE PE
Packaging and delivery
Packaging Details
container transport to Qingdao port ,China. container size and quality according to the machine and other goods.Impotant parts in box.antirust encapsulation for easy rust parts.Other parts fixed in container.
PRODUCT DETAILS
12’Siemens touch screen+World advanced MOOG parison thickness control system
Integral electric cabinet, equipped with air conditioner, can adapt to abnormal weather working environment
Siemens remote control system,Equipped with Schneider soft starter
German Siemens brand,China Inovance Hydraulic Servo Drive System
Huayu independently develops and designs screw, which is more efficient in cooling and more stable in plasticizing
The screw adopts cast aluminum heating ring for heat conduction effect, and the independent cooling fan hood is closed quickly to control the temperature deviation
Wall thickness control valve is equipped with filtering alarm
Huayu patented double-layer /three layrs storage cylinder die head
Die head solution pressure sensor, pressure alarm protection screw head
Huayu patented three-cylinder rapid opening and closing mold locking system
Huayu patented integrated hydraulic station
FAQ
Q1: what is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The product you want to produce
* The maximum and minimum volume of the product
* The layers of machine you want
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: what is the warranty period of your machine?
Answer: The free charge guarantee term is 12 months after the installation and adjustment in your factory.
Q3: what if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: what is the delivery time of your machine?
Answer: Normally it would take about 90-120 days to complete the machine.The specific time needs to be based on your machine.
Q5: can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed technical configuration of the machine to you for confirmation. Only after you confirming the technical configuration then we will start the manufacturing process.
Q6: what’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Alibaba .
Q7: how can we install the machine?
Answer: you provides the invitation letter for visa applying once the machine to be shipment. We’ll dispatches one engineer and one English interpreter to your factory once the machine arrive your factory or as the your request.
Installation is free for 15 days. If you need more time, the service will be charged. Besides, you should provide the round tickets, room and board etc.
