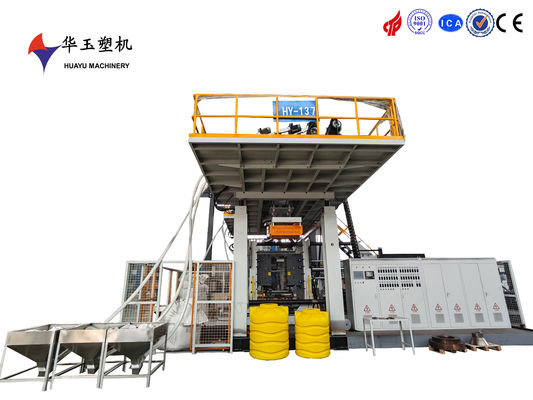

8-Layer 5000L Large-Scale Hollow Blow Molding Machine Precision Engineering Perfect for Water Tanks Industrial Containers
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY5000L-8 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Power | 955kw | Average Power | 480kw |
|---|---|---|---|
| Machine Dimension | 10*8*8.8 | Servo Oil Pump Motor | 7.5kw |
| Servo Oil Pump Model | Plunger Pump22 | Productivity | 4-18pcs/h |
| Hopper Material | Stainless Steel | Feeding Type | Spring Loaded |
| Feeding Motor | 2.2kw*8 | Screw Diameter | 100mm*8 |
| Screw L/D Ratio | 28:1 | Extruder Motor | 55kw*8 |
| Reducer | 280*8 | Screw Heating Power | 4kw*32 |
| Highlight | 5000L Hollow Blow Molding Machine,Industrial Containers Hollow Blow Molding Machine,Precision Engineering Hollow Blow Molding Machine |
||
Product Description
5000L 8 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 1000~5000L. Otherwise can be designed for producing non-standard products according to customer’s request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12’’
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller’s machine should be passed the ISO9001, CE certification.
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 1000-5000L,8layers | |
| Voltage | Pending | |
| total power | 955kw | |
| average power | 480kw | |
| Machine dimension (L*W*H) | 10*8*8.8 | |
| productivity | 4-18pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | spring or vacuum loaded | |
| feeding motor | 2.2kw*8 | |
| Extrusion System | ||
| Screw diameter | 100mm*8 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 55kw*8 | |
| Reducer | 280*8 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4kw*32 | |
| Plasticizing capacity | 1000kg/h | |
| die head | ||
| Accumulator capacity | 200kg | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 160kw | |
| Clamping System | ||
| platen size | 2300*2500*70mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 200*2+350 | |
| clamping cylinder stroke | 2200mm | |
| clamping force | 3000KN | |
| distance between platens | 1600-4000mm | |
| max. mould size | 1800*2500mm(W*H) | |
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 600mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
| air consumption | 3m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 3m3/h | |
| Hydraulic system | ||
| main oil tank capacity | 1700L | Servo motor, less energy consumption, high efficiency, low noise |
| main oil pump | gear pump185CC | |
| main oil pump motor | 75kw | |
| Servo oil tank capacity | 200L | |
| Servo oil pump model | Plunger pump22 | |
| Servo oil pump motor | 7.5kw | |
| Electronic system | ||
| Main operation panel | Touch screen 12" | |
| Control system | PLC | |
| Thickness control points | 100 points | |
| Temperature control | PLC module | |
| main frame | ||
| Up/down stroke | 500mm | |
| Up/down motor | 4kw | |
