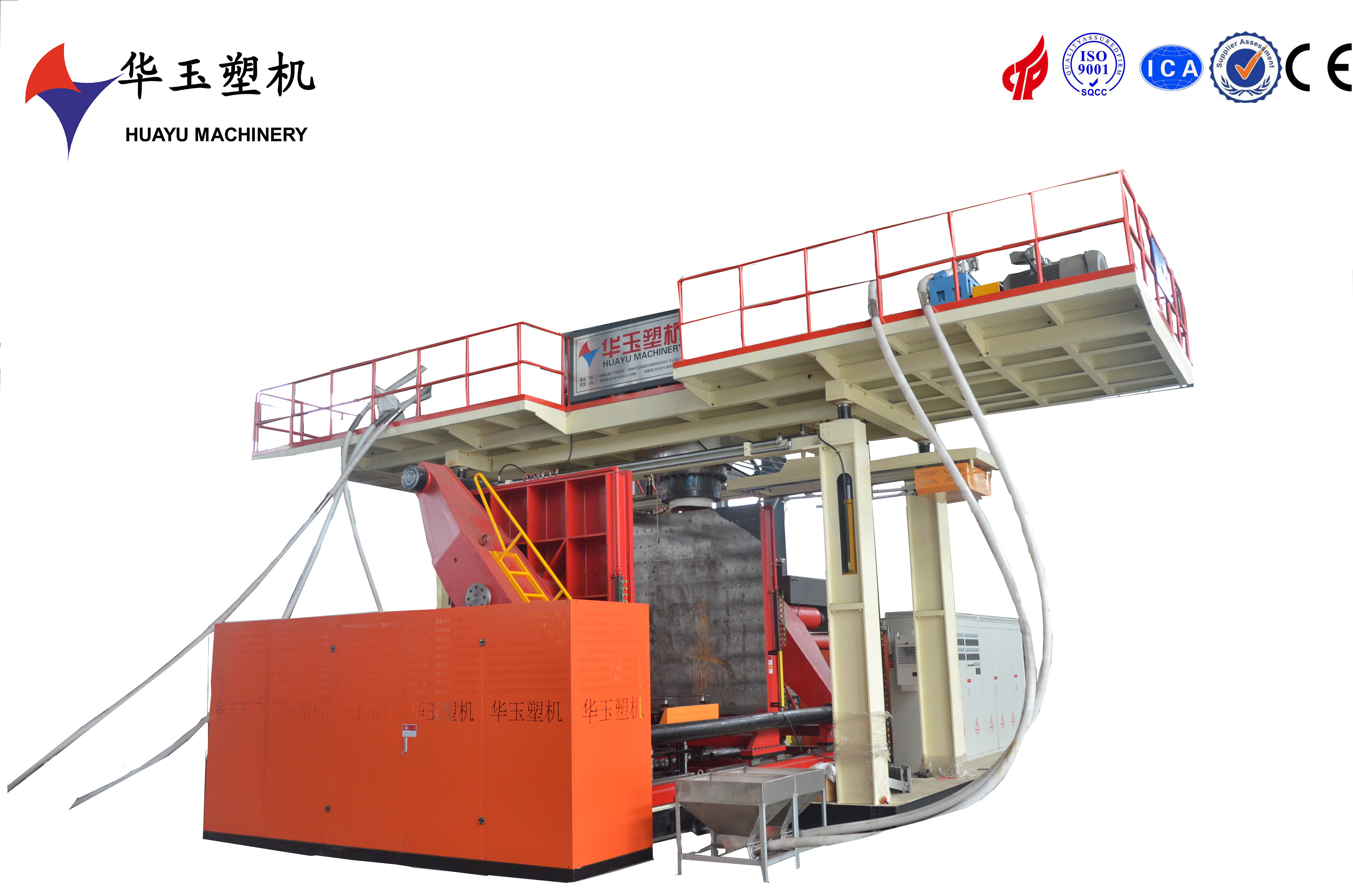

Huayu 3000L 3 Layers Blow Mouling Machine With High Precision and High Output
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY3000L 3 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | Siemens | Inverter | Siemens |
|---|---|---|---|
| Touch Screen | Siemens | PLC | Siemens |
| Thickness Controller | MOOG | Servo Valve | MOOG |
| Oil Pump/valve | YUKEN | Gear Box | Guomao |
| Displacement Pickup | Jefran | Hydraulic Oil Seal | DZ |
| Highlight | 3 Layers Blow Mouling Machine,3000L Blow Mouling Machine,High Output Blow Mouling Machine |
||
Product Description
Huayu 3000L 3 Layers Blow Mouling Machine With High Precision and High Output
| Hydraulic system | ||
| main oil tank capacity | 1300L | Servo motor, less energy consumption, high efficiency, low noise |
| main oil pump | gear pump185CC | |
| main oil pump motor | 57kw | |
| Servo oil tank capacity | 200L | |
| Servo oil pump model | Plunger pump22 | |
| Servo oil pump motor | 7.5kw | |
| Electronic system | ||
| Main operation panel | Touch screen 12" | |
| Control system | PLC | |
| Thickness control points | 200 points | |
| Temperature control | PLC module | |
| main frame | ||
| Up/down stroke | 500mm | |
| Up/down motor | 4kw | |
HuaYu 3000L3 Three-Layer Blow Molding Machine: Overview and Benefits
Introduction
The HuaYu 3000L3 Three-Layer Blow Molding Machine, developed by Weifang Huayu Plastic Machinery Co., Ltd., is engineered for medium-to-large multilayer plastic containers.
Utilizing multi-layer co-extrusion technology (1-12 layers), it produces 3000L capacity hollow products (e.g., chemical drums, IBC totes) for demanding industries like chemicals, food, and logistics.
Equipped with a FLENDER reducer, Siemens PLC, and Moog wall-thickness control, it achieves ±0.5mm precision and processes HDPE, LDPE, PP, etc. Standard output reaches 400-700kg/h with 150 pieces/hour production speed.
Key Benefits
1. Enhanced Performance: Triple-layer structure improves impact resistance, chemical resistance, and sealing, ideal for hazardous and food-grade liquids.
2. Energy Efficiency: Servo-driven system cuts energy use by 30% with smart temperature control.
3. Smart Operation: 10-inch touchscreen and IoT remote monitoring enable real-time data tracking, reducing mold change time by 40%.
4. Certified Reliability: CE and ISO9001 certified, global-brand components ensure durability under 75dB noise.
5. Global Support: Tailored solutions and 80+ country service network guarantee seamless operations worldwide.
