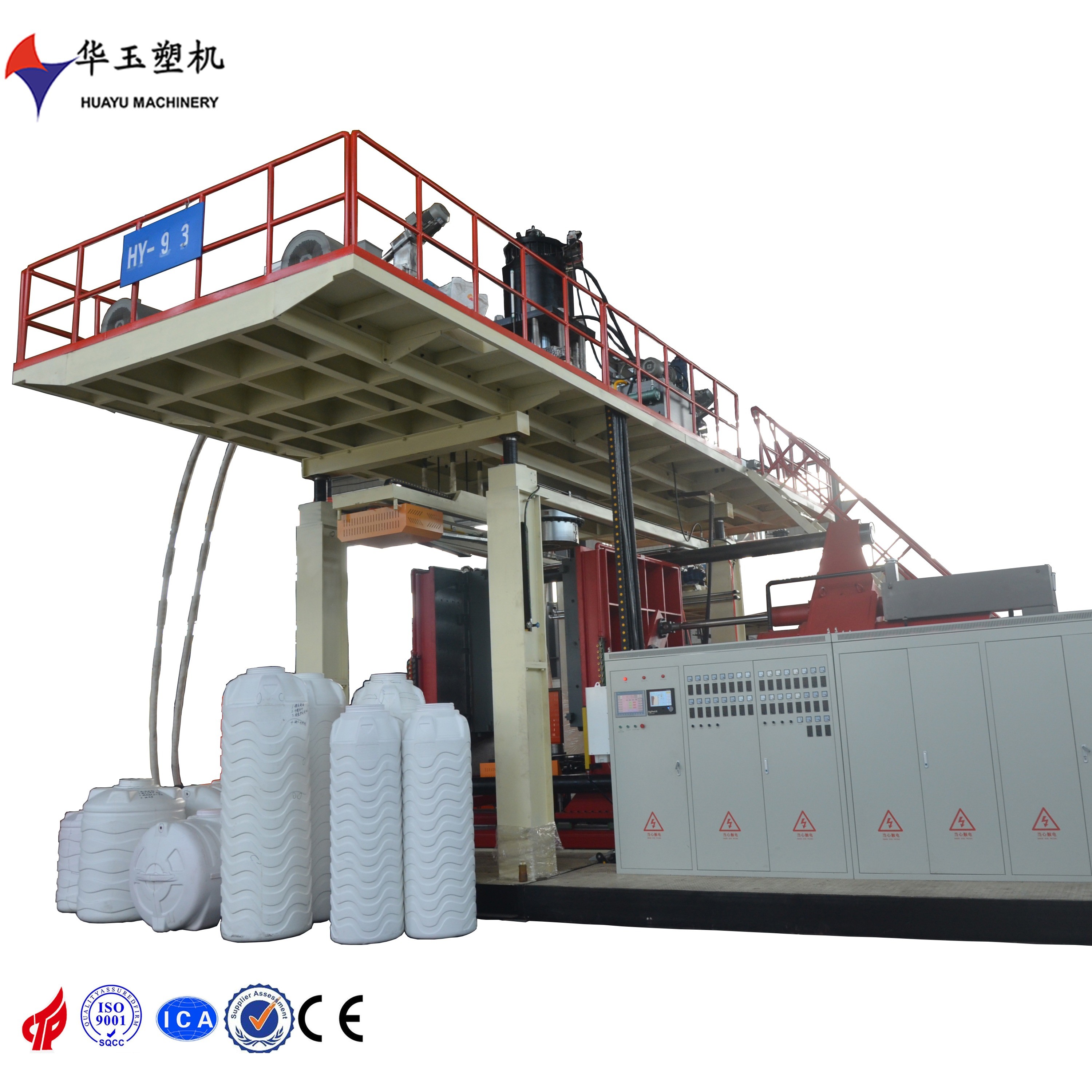

Huayu 3000L 5 Layers Blow Mouling Machine With High Precision and High Output
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY3000L-5 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Blow Pin Up/down Stroke | 600mm | Total Power | 560kw |
|---|---|---|---|
| Average Power | 350kw | Machine Dimension | 9*10*7.5 |
| Hopper Material | Stainless Steel | Die Head Heating Power | 100kw |
| Accumulator Capacity | 90kg | Platen Size | 2100*2200*60mm |
| Max.mould Size | 1700*2200mm | Air Seat Stroke | 400mm |
| Highlight | High Output Blow Mouling Machine,High Precision Blow Mouling Machine,5 Layers Blow Mouling Machine |
||
Product Description
Huayu 3000L 5 Layers Blow Mouling Machine With High Precision and High Output
| Screw diameter | 100/100/100/100/100mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 55/55/55/55/55kw | |
| Reducer | 280/280/280/280/280 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4.4kw*20 | |
| Plasticizing capacity | 750kg/h | |
| die head | ||
| Accumulator capacity | 90kg | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 110kw | |
| Clamping System | ||
| platen size | 2100*2200*60mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 200+300*2 | |
| clamping cylinder stroke | 2100mm | |
| clamping force | 2200KN | |
| distance between platens | 1100-3200mm | |
| max. mould size | 1700*2200mm(W*H) | |
The Hua Yu 3000L 5-layer blow molding machine has excellent performance and many advantages.It uses five-layer co-extrusion technology,which can enhance the function of the container.The inner layer is made of food-grade HDPE material,which is sanitary and has good chemical resistance.
The barrier layer uses EVOH or PA materials,which can effectively prevent the penetration of oxygen and moisture.The machine is equipped with an intelligent control system,which can monitor and adjust the production process in real time,improving production efficiency and reducing energy consumption.
In addition,it has a precise forming and modular design,which can ensure the quality and consistency of the products.The Hua Yu 3000L 5-layer blow molding machine is a high-performance and efficient equipment,which is widely used in various fields such as food,pharmaceutical,and chemical industries.
