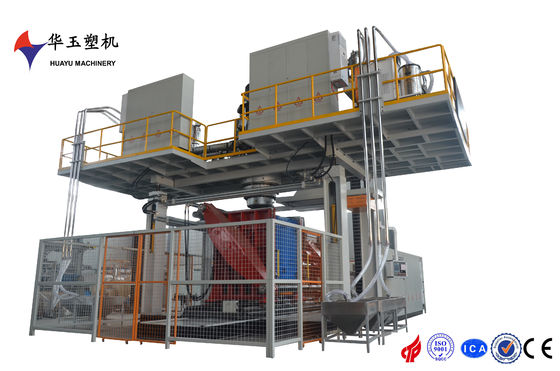

Efficiency with Hua Yu 3000L 6 Layers Water Tank Blow Moulding Machine for HDPE Material
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY3000L-6 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Material | HDPE | Capacity Range | 500--3000L,6 Layers |
|---|---|---|---|
| Voltage | Pending | Total Power | 670kw |
| Average Power | 350kw | Machine Dimension | 12*11*8.5 |
| Machine Weight | 77T | Die Head Weight | 16T |
| Productivity | 8-20pcs/h | Hopper Material | Stainless Steel |
| Highlight | HDPE Water Tank Blow Moulding Machine,3000L Water Tank Blow Moulding Machine,6 Layers Water Tank Blow Moulding Machine |
||
Product Description
Efficiency with Hua Yu 3000L 6 Layers Water Tank Blow Moulding Machine for HDPE Material
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 500-3000L,6layers | |
| Voltage | Pending | |
| total power | 670kw | |
| average power | 350kw | |
| Machine dimension (L*W*H) | 13*10*8.2 | |
| productivity | 8-20pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | Spring loaded | |
| feeding motor | 2.2kw*6 | |
| Extrusion System | ||
| Screw diameter | 100mm*6 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 55kw*6 | |
| Reducer | 280*6 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4kw*24 | |
| Plasticizing capacity | 770kg/h | |
The Hua Yu 3000L 6-layer blow molding machine boasts remarkable performance and numerous advantages.
It features a six-layer co-extrusion structure,which enhances product functionality and durability.
The machine is equipped with advanced components such as German FLENDER reducers,Siemens PLC controllers,and American Moog wall thickness controllers,ensuring high precision and stability.
Its intelligent control system can analyze over 40 process parameters in real time,optimizing production efficiency by up to 25%.
The ultra-precise temperature control,using electromagnetic induction heating and infrared temperature measurement,keeps temperature fluctuations within±0.3℃and reduces energy consumption by 50%.
Additionally,it has a modular design with a 90-second quick mold change capability and a three-hydraulic locking system with a peak clamping force of 5000 kN,enabling seamless production of large containers.
The machine also achieves a raw material utilization rate of 99.5%through zero-waste and online recycling processes,significantly reducing costs.It is widely used in food preservation,pharmaceutical sterile packaging,special chemicals,and new energy fields.
