Innovative 7-Layer Co-Extrusion 3000-5000l Water Tank Blow Moulding Machine With Screw Heating Power Of 4kw*28
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY3000L-7 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity Range | 500-3000L,7layers | Total Power | 743kw |
|---|---|---|---|
| Average Power | 420kw | Machine Dimension | 13*10*8.2 |
| Feeding Motor | 2.2kw*7 | Screw Diameter | 100mm*7 |
| Extruder Motor | 55kw*7 | Reducer | 280*7 |
| Screw Heating Power | 4kw*28 | Plasticizing Capacity | 900kg/h |
| Highlight | plastic water tank blow moulding machine,5000l Water Tank Blow Moulding Machine,3000l Water Tank Blow Moulding Machine |
||
Product Description

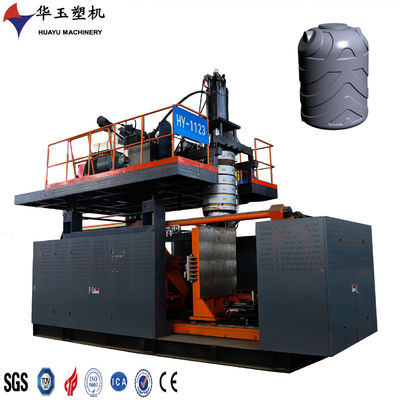

Innovative 7-Layer Co-Extrusion 3000-5000l Water Tank Blow Moulding Machine
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 500-3000L,7layers | |
| Voltage | Pending | |
| total power | 743kw | |
| average power | 420kw | |
| Machine dimension (L*W*H) | 13*10*8.2 | |
| productivity | 8-20pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | Spring loaded | |
| feeding motor | 2.2kw*7 | |
| Extrusion System | ||
| Screw diameter | 100mm*7 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 55kw*7 | |
| Reducer | 280*7 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4kw*28 | |
| Plasticizing capacity | 900kg/h | |
The Hua Yu 3000L 7-layer blow molding machine is a cutting-edge solution in plastic manufacturing,offering superior performance and significant advantages.It features a seven-layer co-extrusion structure,which allows for more precise functional layering and flexible material combinations.
This design enhances the barrier properties,reducing oxygen permeability by over 90%and moisture penetration by up to 95%,making it ideal for high-sensitivity applications like pharmaceutical and electronic chemical packaging.The machine also achieves a 25%weight reduction while increasing impact resistance by 20%compared to six-layer models,with a wall thickness uniformity error of≤±1.2%.
Its intelligent control system,equipped with an industrial-grade edge computing module,analyzes over 50 process parameters in real-time,dynamically adjusting extrusion rates and temperatures to boost production efficiency by 30%.The ultra-precise temperature control,combining electromagnetic induction heating and infrared feedback,maintains temperature fluctuations within±0.2℃,reducing energy consumption by 55%.
The modular design enables a 60-second rapid mold change,compatible with containers ranging from 80 to 1600mm in diameter.The machine’s three-hydraulic locking system,with a peak clamping force of 6000 kN,ensures the precision and stability of large container production.Additionally,it boasts a raw material utilization rate of 99.8%,achieved through zero-waste and online recycling processes,significantly cutting costs and environmental impact.
