Huayu new type 3000L-7layers plastic water tank blow moulding machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-3000L-7 |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CAPACITY | 750-3000L | Layer | 7layers |
|---|---|---|---|
| Die Head Heating Power(kw) | 100 | Available Production | Water Tank, Other Plastic Product |
| Station | 2 | Feeding Type | Vacuum Feeding |
| Highlight | huayu water tank moulding machine,huayu plastic water tank blow moulding machine,3000l water tank moulding machine |
||
Product Description

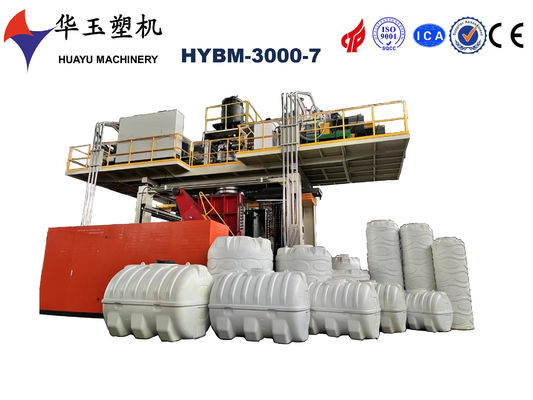

HYBM-3000L-7water tank blow moulding machine
machine specification
|
3000L water tank |
7layers | |
| Capacity rang | L | 500-3000 |
| Machine dimension | M | 12.5*12*7.8 |
| Average | KW | 380 |
| Total power | KW | 760 |
| Accumulator capacity | KG | 90 |
| Extruder motor | KW | 75*7 |
| Screw diameter | MM | 110*7 |
| Screw L/D ratio | 28:1 | |
| Plasticizing capacity | KG/H | |
| Platen size | MM | 2100*2200 |
| Platen distance | MM | 110-3200 |
| Clamping force | KN | 2200 |
| Servo motor | KW | 55 |
1. Company profile
Weifang Huayu Plastic Machinery Co. Ltd. was founded in 2002, a manufacturer specialized in super large automatic blow moulding machines. The company intergrates the leading technique and concept at home and abroad, specializing in the design, production, and sales of large automatic blow moulding machine from one to ten layers products.

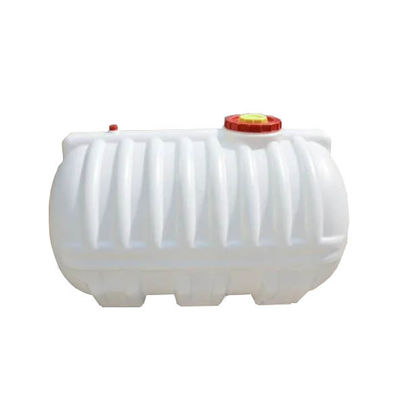

Our company's blow molding machines can produce various types of plastic water tanks ranging from 25 liters to 30000 liters, including IBC, double ring drum, road barrel, road cone, isolation wall, pallet, table board, float, kayak, toolbox and other hollow products. The excellent quality, stable performance, and superior cost-effectiveness of the company's products not only sell well in the domestic market, but also export to more than 80 countries and regions such as Asia, Southeast Asia, the Middle East, Europe, North America, South America, and Africa, receiving high praise from customers.
At present, our company has made breakthrough progress in the technology of multi-layer storage die heads, filling multiple gaps in the domestic blow molding industry. We will continue to devote ourselves to research and development in the field of blow molding, and strive to build an international brand in the blow molding industry.
2.Machine details
Integral electric cabinet, equipped with air conditioner, can adapt to abnormal weather working environment
Siemens remote control system,Equipped with Schneider soft starter
12’Siemens touch screen+World advanced MOOG parison thickness control system
The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation
