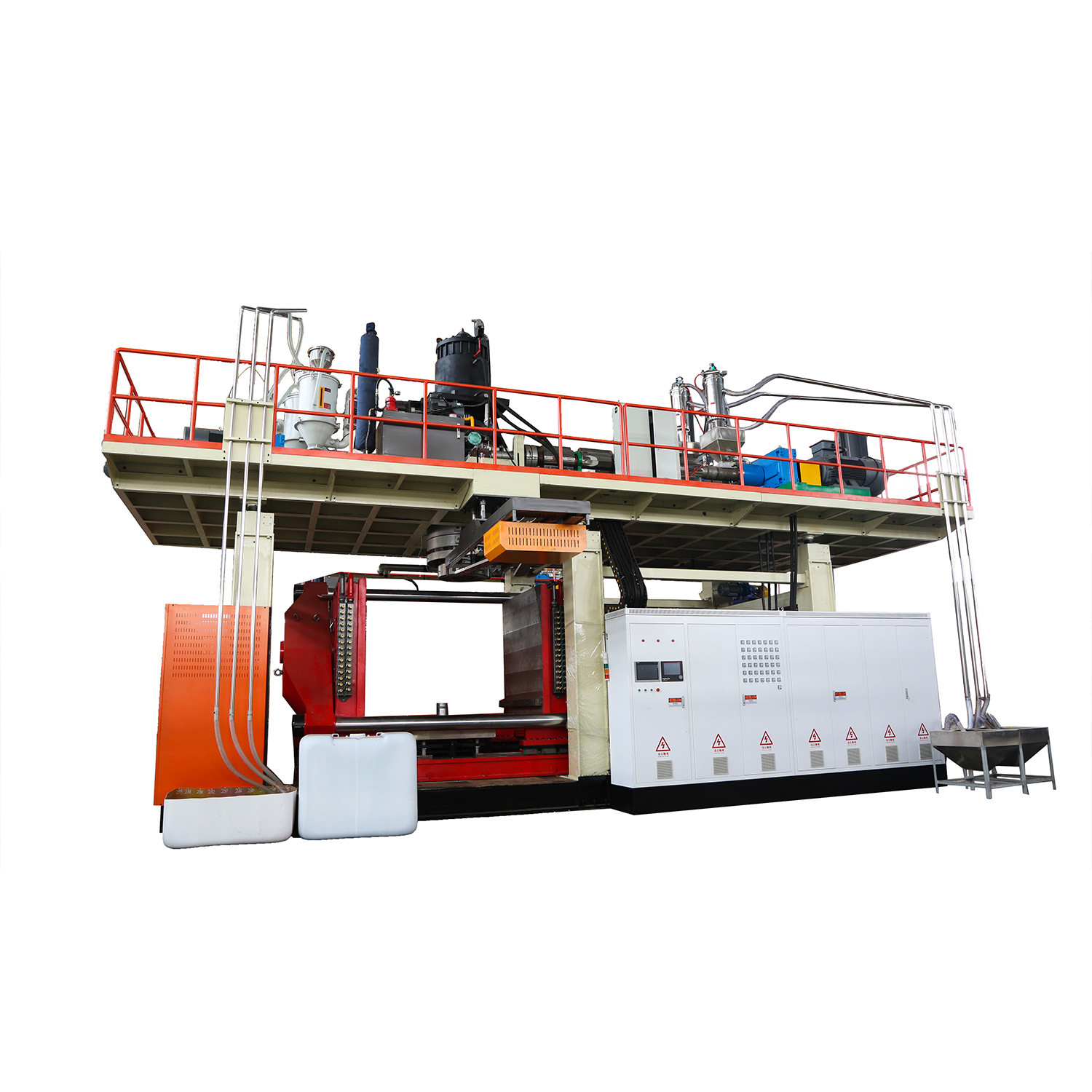

Automatic HDPE Blow Molding Machine Plastic Tank 350KW 10000L 10 Layers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | CE ,SGS |
| Model Number | HYBM10000-10 |
| Minimum Order Quantity | 1SET |
| Price | Negotiate |
| Packaging Details | EXPORT PACKAGED |
| Delivery Time | 4MONTHS |
| Payment Terms | L/C, T/T |
| Supply Ability | 40SETS PER YEAR |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | Huayu | Capacity | 10000L-30000L |
|---|---|---|---|
| Material | HDPE | After-sales Service Provided | Service Machinery Overseas |
| Warranty | 12months | Blow Moulding Type | Injection Blow Moulding |
| Plastic Processed | PE,HDPE | Average Consumption | 350KW |
| Plasticizing Capacity | 800 KG/H | Extruder Motor | 110/132/110KW |
| Highlight | Automatic hdpe blow molding machine,10000L hdpe blow molding machine,10 Layers plastic blow moulding machine |
||
Product Description
Automatic350KW 10000L10 Layers HDPE Blow Molding Machine Plastic Tank For Chemical
PRODUCT DETAILS
Technical features:
1. The equipment adopts Siemens control system and the original imported reducer from Flanders, ensuringefficient and stable operation of the equipment.
2. Equipped with a remote control system, it can quickly and accurately solve equipment problems.
3. Three cylinder clamping system to increase clamping force and improve clamping speed.
4. With a domestic market share of over 85%.
* The product you want to produce
* The maximum and minimum volume of the product
* The layers of machine you want
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Air Pressure(MPa)
0.8 MPa
Air Comsumption(m³/min)
3 m³/min
Die Head Heating Power(kW)
110 kW
12'Siemens touch screen+World advanced MOOGparison thickness control system.
Integral electric cabinet, equipped with air conditioner,can adapt to abnormal weather working environment.
Siemens remote control system,Equipped withSchneider soft starter.
Siemens remote control system,Equipped withSchneider soft starter.
The screw adopts cast aluminum heating ring forheat conduction effect, and the independent coolingfan hood is closed quickly to control the temperaturedeviation.
Lubricating pump, cleaning guide rail, smooth operation.
Huayu patented three-cylinder rapid opening andclosing mold locking system.
Q&A:
Q2: what is the warranty period of your machine?
Answer: The free charge guarantee term is 12 months after the installation and adjustment in your factory.
Q3: what if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: what is the delivery time of your machine?
Answer: Normally it would take about 90-120 days to complete the machine.The specific time needs to be based on your machine.
Q5: can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed technical configuration of the machine to you for confirmation. Only after you confirming the technical configuration then we will start the manufacturing process.
Q6: what’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Alibaba .
Q7: how can we install the machine?
Answer: you provides the invitation letter for visa applying once the machine to be shipment. We’ll dispatches one engineer and one English interpreter to your factory once the machine arrive your factory or as the your request.
