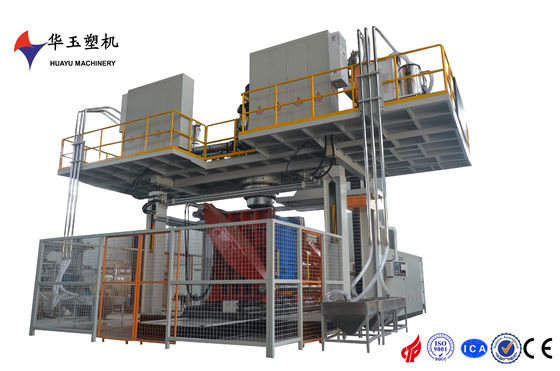

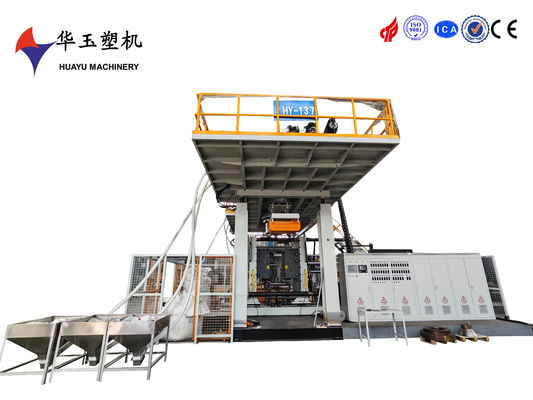

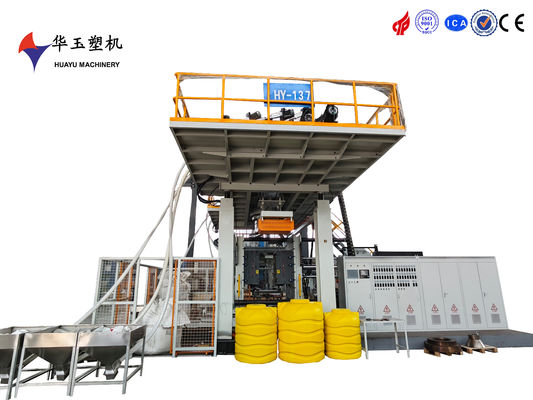

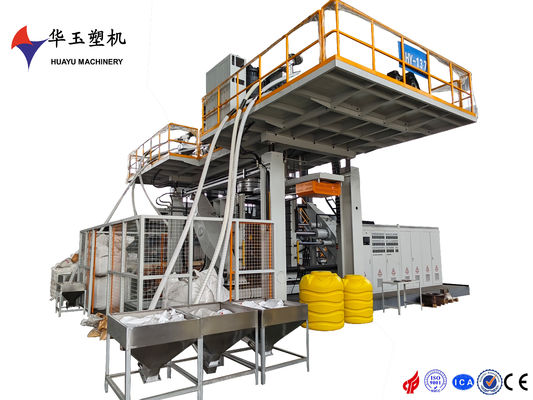

Smart Integration 2layers Water Tank Blow Moulding Machine 780kw Power 33 1 Screw L/D Ratio Next-Gen Plastic Blowing
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY20000L-2layers blow mouding machine |
| Minimum Order Quantity | 1(set) |
| Price | USD600000~620000 |
| Packaging Details | disassemble into many parts for container transportation |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Weight | 300T | Total Power | 780kw |
|---|---|---|---|
| Average Power | 480kw | Productivity | 1-4pcs/h |
| Feeding Motor | 2.2/2.2/2.2kw | Screw Diameter | 180/180mm |
| Screw L/D Ratio | 33：1 | Extruder Motor | 75/110/75kw |
| Screw Heating Power | 4.4kw*15 | Plasticizing Capacity | 1600kg/h |
| Accumulator Capacity | 750kg | Die Head Heating Power | 200kw |
| Clamping Cylinder Stroke | 2000mm | Clamping Force | 8000KN |
| Maximum Air Pressure | 0.8Mpa | Air Consumption | 1.5m3/min |
| Water Pressure | 0.3MPa | Cooling Water Consumption | 60m3/h |
| Highlight | 780kw Water Tank Blow Moulding Machine,2layers Water Tank Blow Moulding Machine,Smart Integration Blow Moulding Machine |
||
Product Description

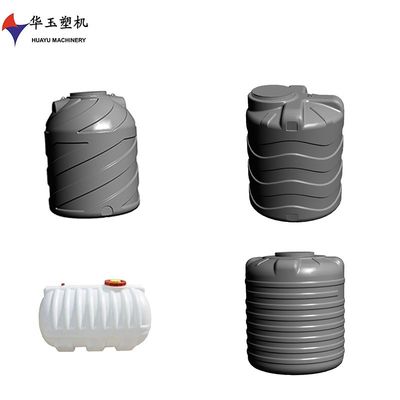

20000L 2 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 3000~10000L. Otherwise can be designed for producing non-standard products according to customer’s request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12’’
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller’s machine should be passed the ISO9001, CE certification.
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 5000-20000L,2layers | |
| total weight | 300T | |
| Voltage | Pending | |
| total power | 780kw | |
| average power | 480kw | |
| Machine dimension (L*W*H) | 16*9*13 | |
| productivity | 1-4pcs/h | |
| Auto Feeder | ||
| hopper material | 不锈钢stainless steel | Stable performance, easy maintenance |
| feeding type | 弹簧上料spring loaded | |
| feeding motor | 2.2/2.2/2.2kw | |
| Extrusion System | ||
| Screw diameter | 180/180mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 33:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 75/110/75kw | |
| Reducer | 315/375/315 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4.4kw*15 | |
| Plasticizing capacity | 1600kg/h | |
| die head | ||
| Accumulator capacity | 750kg | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 200kw | |
| Clamping System | ||
| platen size | 3600*4000*60mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 200+280*2 | |
| clamping cylinder stroke | 2000mm | |
| clamping force | 8000KN | |
| distance between platens | 2200-6200mm | |
| max. mould size | 1600*2000mm(W*H) | |
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 300mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
| air consumption | 1.5m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 60m3/h | |
| Hydraulic system | ||
| main oil tank capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| main oil pump | gear pump160CC | |
| main oil pump motor | 57kw | |
| Servo oil tank capacity | 200L | |
| Servo oil pump model | Plunger pump22 | |
| Servo oil pump motor | 7.5kw | |
| Electronic system | ||
| Main operation panel | Touch screen 9" | |
| Control system | PLC | |
| Thickness control points | 100 points | |
| Temperature control | PLC module | |
| main frame | ||
| Up/down stroke | 500mm | |
| Up/down motor | 2.2kw | |
| Main parts brand | ||
| motor | Siemens | Germany |
| Inverter | Siemens | Germany |
| Touch screen | Siemens | Germany |
| PLC | Siemens | Germany |
| Thickness controller | MOOG | Japan |
| oil pump/valve | YUKEN | Japan |
| gear box | Guomao | China |
| Low-voltage apparatus | Schneider/Fuji/Omron | |
| Displacement pickup | Jefran | Italy |
| Hydraulic oil seal | DZ | Taiwan |
