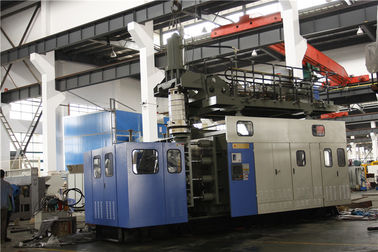

High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon

    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
  • High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon

    Product Details:

    Place of Origin: China
    Brand Name: TONGDA
    Certification: CE& ISO9001& Bundersrepublik deutschland patents
    Model Number: TDB-80F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiable
    Packaging Details: 40HQ
    Delivery Time: 60 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Material Application: PP/PE/LDPE/HDPE/LLDPE/ABS/PETG/PC/PS Screw Diameter: 100mm
    Output Of HDPE: 160~200KG/H Clamping Force: 440KN
    Color: Blue/White/Yellow/Orange


     TONGDA big size plastic pontoon floating bridge extrusion blow molding machine TDB-80F
    Extrusion blow molding machine technical feature:
    The electronic control system: Japan's Mitsubishi PLC computer and human-machine interface (English or Chinese) control, color touch-screen operation. All the process set to change, retrieval, monitoring, troubleshooting and other functions are implemented on the touch screen, no point of contact with the working principle, components and durable.
    The hydraulic system: proportional pressure control, with imported brands Yuken hydraulic components, stable and reliable.
    The plasticizing system: efficient plastics mixing screw, to ensure plasticizing full uniform.
    The speed control system: VVVF + alloy steel and hard gear reducer, speed stable, low noise, durable.
    The opening and closing mold, mold transfer system: beam arm, three position, center locking clamping mechanism, to ensure long-term use. Clamping force balance, no deformation, the use of body translation mode (ball linear guide), high precision, low resistance, fast.
    Blowing the needle holder: blow the whole Square-type needle holder, a solid does not shift to ensure a smooth incision products.

    Extrusion blow moulding machine specification:

    Model TDB-80F
    Station Single station
    Max. Product Volume(L)80L
    Dry cycle(pc/h)360
    Screw Diameter(mm)100
    Screw L/D ratio(L/D)25
    Screw drive power(KW)45
    Screw heating capacity(KW)8.4~10.5
    No. of heating zone(ZONE)4
    Max.Output of HDPE(Kg/hr)160~200
    Oil pump drive power(KW)37
    Clamping force(KN)440
    Mold stroke (Platen distance)(mm)500~1200
    Max. Size of Mold(W*H)(mm)800*1000
    Capacity of the diehead(L)12.8
    Max. Die diameter(mm)420
    Die heat capacity(KW)9.2
    No. of heating zone(ZONE)5
    Blowing pressure(Mpa)0.8
    Air volume(M3/MIN)1.2
    Cooling water pressure(Mpa)0.3
    Water consumption(L/MIN)100
    Size of machine ( L*W*H)(m)5.42*2.45*3.9
    Weight of machine(TON)16


    High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
    High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon


    Components:
    a) Hydraulic Parts

    NameSupplier
    Oil PumpPARKER or SUNNY, America
    ValveYUKEN or SUNNY
    Hose, JointPARKER SIR
    SealerTop DZ Europe


    b) Electrical Parts

    NameSupplier
    Microcomputer Control SystemMITSUBISHI PLC, Japan
    Touch ScreenHITECH color screen, Taiwan
    Temperature ControllerMITSUBISHI, Japan
    ConductorSCHNEIDER
    Air SwitchSCHNEIDER
    MotorSIMENS BEIDE Asynchronous Motor
    Power ResourceMEAN WELL, Taiwan
    InverterMITSUBISHI


    c) Pneumatic Parts

    NameSupplier
    Solenoid ValveFESTO, Germany
    CylinderFESTO, Germany


    High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon


    High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon



    Extrusion blow molding machine installation, commissioning and training:
    If the buyer needs seller to send technicians to workshop for supervising the erection and start-up, seller must support and send sufficient number of technicians and keep duration of stay in workshop. Usually it's about 3~5 days in this duration. The first day is that when our technician is at the airport to factory of buyer. And from the first day, the buyer has to pay US$80 per day. And all accommodation, visa application & air ticket will be born by the buyer.
    High Speed Extrusion Blow Molding Machine For Bridge Plastic Floating Pontoon
