75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control

75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control

  • 75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control
  • 75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control
  • 75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control
  • 75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control
75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control
Product Details:
Place of Origin: China
Brand Name: FG
Certification: CE
Model Number: FGP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden base or wooden box
Delivery Time: 50 work days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Application: Make PVC Pipes Material: Pvc Resin Or Granules
Pipe Size: 75~250mm Electric Control: Siemens PLC
Motor: Siemens Standard AC Motor Cooling Water Control: Adopt Omron Temperature Controller
Extruder Type: Conic Double Screw Extruder Inverter: ABB
High Light:

pvc pipe manufacturing machine

,

hdpe pipe extrusion line

75~250mm PVC pipe extrusion production line





This line is mainly used for producing PVC pipes with diameter 75mm, 90mm, 110mm, 125mm, 160mm, 180mm, 200mm, 225mm, 250mm. By changing the mandril, it can produce pipes with different pipe wall thickness. PVC pipes can use for the aspects such as the agricultural and constructional plumbing, cable laying etc.  The process flow of this line as blow:

PVC powder + additive --- mixing---material feeder---twin screw extruder---mould and calibrator---vacuum forming machine---haul-off machine---cutting machine---discharge rack or pipe belling machine.



The screw of the extruder could be designed as lower filler screw and high filler screw. With advanced design, it provide powerful safeguard for the PVC plasticization. There is degassing system for the screw and barrle, which will ensure the quality of final PVC pipes. The motor adopt Siemens standard motor, ABB inverter, Siemens PLC control system.

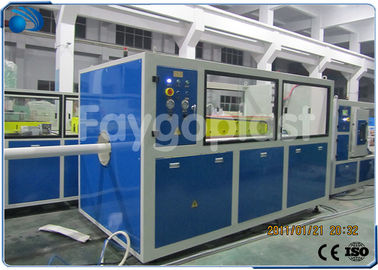

The tank body of vacuum calibration and cooling units adopt stainless steel 304# . The excellent vacuum system ensures the precise sizing for pipes; spraying cooling will improves the cooling efficiency; Auto water temperature control system make the machine more intelligent.



The haul-off machine of this PVC pipe line will adopt three caterpillars, and the compact mode of haul-off frame adopt pneumatic and gear motor. With meter code, it can count the pipe length during the production.



Cutting system adopt PLC control and it could be no-dust cutter and planetary cutter. There is dust-collecting system ensures clean working environment.



The pipe belling machine can make pipe with different belling shape, such as "U" type, "R" type etc. We can also design pipe belling machine with auto rubber ring feeding system.



Technical data:



model FGP250
pipe size 75-250mm
extruder SJZ80/156
motor power 55kw
extrusion output 350kg/h
vacuum cooling tank

two chamber structure

with water temperature controller

haul-off three claw haul-off
cutter planetary or no dust cutter
pipe belling machine single heating oven or double heating oven

75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control 0

75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control 1



75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control 2

75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control 3

75~250mm PVC Pipe Manufacturing Machine With Siemens PLC Electric Control 4
