Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine

    • Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine
    • Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine
    • Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine
  • Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine

    Product Details:

    Place of Origin: china
    Brand Name: faygo
    Certification: ce,iso
    Model Number: SJZ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: film
    Delivery Time: 30 working days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 15stes per month
    Contact Now
    Detailed Product Description
    Application: Pipe Screw Design: Double-screw
    Place Of Origin: Jiangsu, China (Mainland) Power: 37kw
    Inverter: ABB Heating Way: Foundry Aluminum Heater
    Contactor: SIEMENS

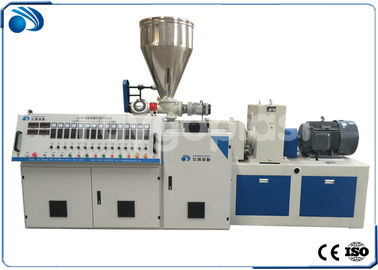

                          conical twin screw extruder for pvc trunking SJZ65


    about our factory


    1. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines,plastic production line.

    2. Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe,plastic foamed profile,WPC profile and panel,wood plastic composite and so on.



    3. Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.



    4. We provide plastic machine which can make Agriculture pipe,machines to produce pellet,laminating machine,wooden window frames machine.Our machine can make 3D printer material.




    Features Specifications:


    1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

    2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.




    3. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.



    4. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.



    production discribtion



    Screw and Barrel

    800~900HV
    Barrel Screw and Barrel Material 38CrMoAlA,Nitriding,
    Surface Chrome plate
    Nitriding Layer Thickness:0.5~0.7mm
    Surface Rigidity:800~900HV

    Screw Diameter Φ65/132mm
    Effectual Working Length of Screw 1050mm
    Speed of Screw 1~40rpm
    Main Motor Power 37KW
    Main Motor Timing Method 37KW ABB inverter
    Barrel Heating Method Foundry Aluminum Heater, include force cooling fan,

    Barrel Heating Power

    12KW

    Capacity

    150~250kg/h

    Main Electrical Equipment

    Japanese OMRON Temperature Control Meter,Siemens Contactor,

    Shanghai TAYEE Button and Indicator Light,
    Suzhou ChuangShuan digital display meter



    According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.



    The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.



    It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.



    The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.





    All of our PVC pipe extrusion machine will be tested before delivery, and we will invite our cients to

    come and testing the whole line with us together.



    Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92
    Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
    Max. Rotating speed(rpm) 40 38 38 37 36
    Main Motor(kw) 18.5 22 37 55 90
    Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
    Center height(mm) 1050 1050 1050 1050 1100
    Net Weight(kg) 3000 3500 4000 5500 8000
    L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5



    Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine



    Double Screw PVC Plastic Pipe Manufacturing Machine , Plastic Sheet Extrusion Machine
