Full Automatic Plastic Sheet Making Machine , PC Hollow Profile Extrusion Line

Full Automatic Plastic Sheet Making Machine , PC Hollow Profile Extrusion Line

Full Automatic Plastic Sheet Making Machine , PC Hollow Profile Extrusion Line

Product Details:

Place of Origin: China
Brand Name: Faygo Union Machinery
Certification: CE& ISO9001
Model Number: FGS08

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Covered by PE film
Delivery Time: 50-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15sets per year
Contact Now
Detailed Product Description
Condition: New Plastic Material: PC
Voltage: 380V 50HZ Screw Design: Single Screw
Power: 150-300kw Sheet Width: 750-2000mm

Parameters of pc hollow profile extrusion line


Extruder for pc hollow profile extrusion line, Appropriate single-screw extruder (exhaust or not ) should be chosen on the basis of different materials. Specially designed for high compounding and plasticization capacity so as to ensure high and stable extruding output.

1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled.

2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines. because of special design of forming plates.

3. Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate.

4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.

5. The softness of pull rolls could be customized on request to extend its stretch.

6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines.

7. Unique T-Die made by JC Times is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape.

8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement.

High percentage of recycled flakes could be mixed with the virgin materials.


pc hollow profile extrusion line Introduce


PC Hollow Sheet sunligh board is normally adopted as plastic construction material internationally, it hsa more advantages compared with glass& prespex etc. it is also named "unbreakable glass" mainly used in skylight of greenhouse/industrial ware house, decoration, channel, poncho, house, mall, exhibition, stadiums, paking shed, swimming pool and advertisement sign board, together with shed of business, factory, agriculture greenhouse, farming industry and flower plants, also can be used in telephone booth, newsstand, bus station and so on public service, high way sundproof and advertisement decoration field.

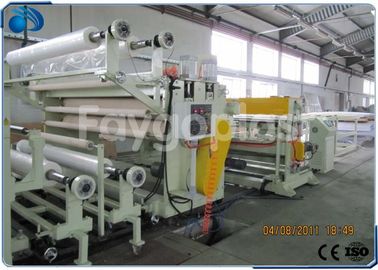

PC hollow profile extrusion line in factory

Full Automatic Plastic Sheet Making Machine , PC Hollow Profile Extrusion Line


Technology of pc hollow profile extrusion line

Extruder model Φ100 Φ120
Product width 1300mm 2100mm
Product thickness 2-10mm 2-10mm
Motor power 110kw 132kw
Papacity 250-300kg/h 400-450kg/h
