| Place of Origin: | JIANGSU |
| Brand Name: | Faygo |
| Certification: | CE& ISO |
| Model Number: | TDB-160A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 100,000USD |
| Packaging Details: | wooden box |
| Delivery Time: | confirming the order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60~70day . |
| Material: | HDPE,LDPE | Max Product Voume: | 160L |
|---|---|---|---|
| Screw: | 100mm | Size Of Machine: | 5.8*2.9*4.4 |
| High Light: | bottle blow moulding machine,plastic bottle production machine |
||
Extrusion blow molding machine for 100-160L drums
Product Description :
Product Details :Fully automatic Extrusion blow molding machine TDB-160A/B
Technical Specification
| Max. product Volume | (L) | 160 |
| Station | Single | |
| Dry cycle | (PC/H) | 300 |
| Screw Diameter | (mm) | 100 |
| Screw L/D ratio | (L/D) | 28 |
| Screw drive power | (KW) | 75 |
| Screw heating power | (KW) | 12.1~12.4 |
| No .of heating zone | (ZONE) | 5 |
| Output of HDPE | (KG/H) | 200~250 |
| Hydraullic pump driving power | (KW) | 37 |
| Clamping force | (kN) | 740 |
| Platen Distance | (mm) | 500~1400 |
| Max .size of mold | (W*H)(mm) | 900*1450 |
| Capacity of Accumulator head | (L) | 18 |
| Max .Die diammeter | (mm) | 510 |
| Die heating power | (KW) | 12 |
| No of heating zone | (ZONE) | 5 |
| Blowing pressure | (Mpa) | 0.8 |
| Air consumption | (M^3/MIN) | 1.6 |
| Cooling water pressure | (Mpa) | 0.3 |
| Water consumption | (L/MIN) | 180 |
| Size of machine | (L*W*H)(M) | 5.8*2.9*4.4 |
| Weight of machine | (TON) | 22 |
OUR MACHINE IN OUR COMPANY
Packaging & Shipping
Packaging Details :Wooden Box ,PE film ,Wooden base/steel base
Shipping :by train or ship
OUR SERVICE:Engineers available to services Machinery overseas

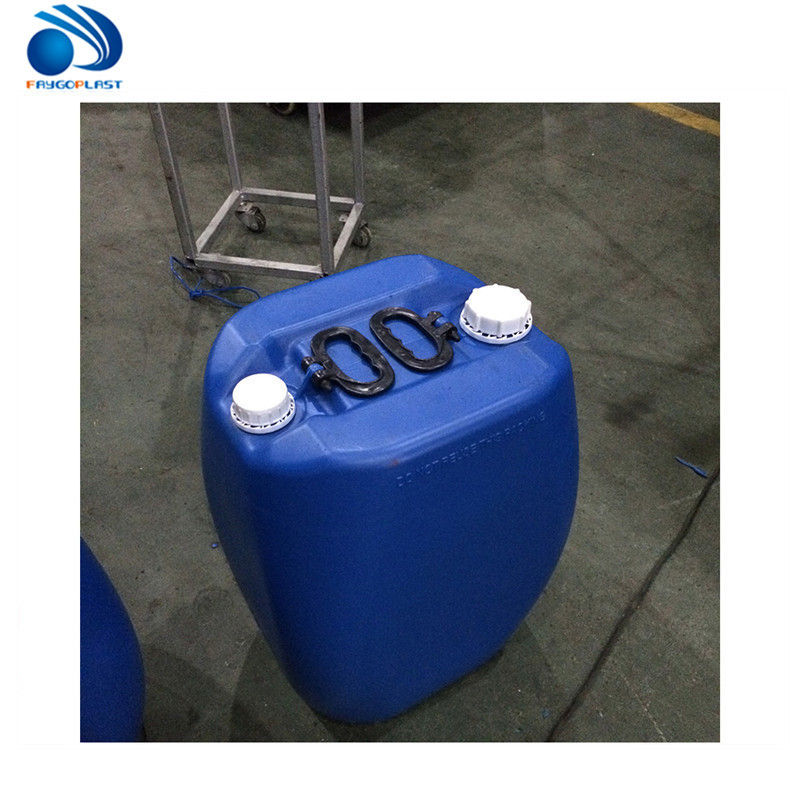

Some samples of product
OUR SUPPLIER OF MAIN PARTS
a)Hydraulic parts
| Name | Supplier |
| Oil pump | PARKER OR SUNNY ,America |
| Valve | YUKEN OR SUNNY |
| HOSE ,JOINT | PARKER SIR |
| Sealer | DZ Europe |
b)Electrical parts
| Name | Supplier |
| Microcomputer control system | MITSUBISHI PLC. |
| Touch Sceen | HITECH Color Screen ,Taiwan |
| Temperature Controller | MITSUBISHI,Japan |
| Conductor | SCHNEIDER |
| Air conductor | SCHNEIDER |
| Motor | SIMENS BEIDE Asynchronous motor |
| Power resource | MEAN WELL ,TAIWAN |
| Inverter | MITSUBISHI |
c)pneumatic parts
| Name | Supplier |
| Solenoid valve | FESTO ,Germany |
| Cylinder | FESTO,Germany |
Our company:
Our company is dedicated to the research & development of extrusion blow molding machine,with annual production capacity 550 sets.Our product are exported to more than ten countries and regions such as USA,U.K,Astralia,Greece ,poland ,Russia,IRAN,etc 62 countries .For the fifteen years ,we always do our best and provide best service and win the reputation .
Our centificates
Contact Person: Mr. Figo Hussian
Tel: +8613773258862
