Place of Origin: | Jiangsu, China |
Brand Name: | Faygo |
Certification: | CE, ISO |
Model Number: | FG4 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 80000-140000 per set |
Packaging Details: | covered by PE film |
Delivery Time: | 50 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 80 sets per year |
Bottle Material: | PET | Bottle Size: | 200-2000ml |
---|---|---|---|
Capacity: | 6000-24000BPH | Suitable Cap: | Plastic Screw Cap |
Machine Structure: | Linear Type | Filling Material: | Water, Juice, Beverage |
High Light: | linear Injection Blow Molding Machine,200ml Injection Blow Molding Machine,2000ml Injection Blow Molding Machine |

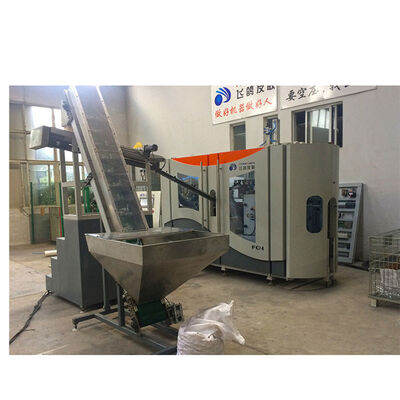

Faygo automatic blow molding machine 200-2000ml plastic injection blow molding machine
Product Description | |||||
FG series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine currently.It has our own intellectual property rights, and has obtained more than 13 national patents. This machine is equipped with automatic perform loading and bottle unloading system. It is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: preform elevator, preform unscrambler and host machine. | |||||
Technical parameters | |||||
Type | FG4 | ||||
Bottle Specifications | Mould number(piece) | 4 | |||
Max capacity(BPH) | 6500-8000 | ||||
maxi volume (mL) | 2000 | ||||
FAQ Q:Are you machinery factory or trading company? A:We are machinery factory Q:If we have very special request for the production line,could you help me to do the design? A:Experienced mechanical designer customized-design provided. Q:Installation and stuff training available from you? A:Yes, our engineers will guide machine installation and train your workers. Q:How can we visit your company and machines? A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport. |
|||||
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottleneck diameter.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Contact Person: Mr. Figo Hussian
Tel: +8613773258862
