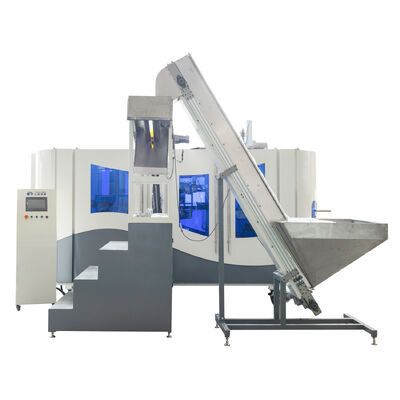

12000PCS/H Aluminum 40kw Pet Bottle Making Machine

12000PCS/H Aluminum 40kw Pet Bottle Making Machine

12000PCS/H Aluminum 40kw Pet Bottle Making Machine
12000PCS/H Aluminum 40kw Pet Bottle Making Machine
12000PCS/H Aluminum 40kw Pet Bottle Making Machine
Product Details:
Place of Origin: China
Brand Name: Faygoplast
Certification: CE ISO
Model Number: FG6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD+75000-95000+set
Packaging Details: wooden case ,film packing
Delivery Time: 90days after payment
Supply Ability: 30+set+mouth
Contact Now
Detailed Product Description
Mold: Aluminum Power: 40kw
Material: Stainless Steel Plastic Material: PET
Condition: New Application: Bottle
Certification: CE,ISO9001 Product Name: Automatic Blowing Molding Machine
High Light:

40kw pet bottle making machine


12000PCS/H Pet Bottle Making Machine



Aluminum 40kw Blow Molding Machine / Pet Bottle Making Machine For Mineral Water



When it comes to bottling drinks production, 70% energy occurs at the blower.
Lines are expected to continuously produce more with less. Besides maximize thecapacity, it is also important to minimize the using cost.We understand that every grams of pet material you save and every electricity watt you reduces can turn into massive return in the future.This is where our upgrading solution value lies.



Packing: Film covered or wooden box package(According to customer needs )
Delivery: 30-45 working days
Port: Shanghai port




1 High speed with reasonable structure:
The unique linkage cam can finish mold-opening, mold-locking and bottom mold-elevating in one movement, the blowing period is greatly reduced to 2 seconds.
The linkage cam is intelligently driven by one servo motor, this obviously simplify the blowing machine structure, which make it convenient to maintain and no need for heavy lubrication work.
2 Less heating oven, small electricity consumption
The preforms distance in the heating oven is only 38.1mm, which means more preforms can be put into the oven compared with the traditional blowing machine. The heating efficiency is largely improved, and as a result, it saves more than 30% electricity consumption than the traditional blowing machine.
3 Stably running
The machine adopts modularized design concept, it has compact and reasonable structure, it reduces the failure rate from the basic design angle. FG4 does not need the low air compressor.





pet bottle blow molding machine parameters

Detail specification of FG-6 PET bottle blowing machine


Main Parameter
Model FG-6
Capacity Depend on bottle design 9000-12000PCS/H
Applicable Preform Height <330mm
Neck 20mm-25mm
Applicable Bottle Neck 20-25mm
Volume Max.2Liter
Height Max.328mm
Diameter Max.105mm
Electric consumption Install power 51kw
Heating oven powder 46kw
Heating Oven operating power 28kw
Air consumption Pressure 8m3/min 4.0MPa
Capacity 8m3/min 4.0MPa
Mold Chiller Pressure 4-6Bar
Temperature 6-13ºC
Flow 45L/min
Oven Chiller Pressure 4-6Bar
Temperature 6-13ºC
Flow 26L/min
Machine Dimension L*W*H 3900*900*2500mm
Weight 3500kg
Capacity:9000-12000PCS/H(based on 0.5L)
Max. Volume: 2 Litter
Total Size:
Blowing Main machine: 3.6*1.3*2.3m
Sorting machine:2*1.5*1.5m/Loader:3*1*1.5m

Main electrics
Pneumatic part& Cylinder Valve GERMAN FESTO
Electric part PLC JAPAN Mitsubishi
Servo System JAPAN Panasonic
Frequency inverter JAPAN Mitsubishi
Operating system JAPAN Mitsubishi
Touch screen JAPAN Mitsubishi
Blowing Valve JAPAN Parker
One-way Valve GERMAN FESTO
Throttle Valve GERMAN FESTO
Reducing Valve GERMAN DURAY
Note: All the electrical components adopts CE,UL,CCC approved international
advanced high-tech product




Q:How can we visit your company and machines?

A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?

A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
