| Place of Origin: | China |
| Brand Name: | Faygo Union Machinery |
| Certification: | CE& ISO9001 |
| Model Number: | FGS09 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Covered by PE film |
| Delivery Time: | 50-60 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15sets per year |
| Condition: | New | Plastic Material: | PC |
|---|---|---|---|
| Voltage: | 380V 50HZ | Screw Design: | Single Screw |
| Power: | 150-300kw | Sheet Width: | 750-2000mm |
| Highlight: | plastic sheet extrusion machine,plastic sheet manufacturing machine |
||
plastic extruder pc/pp/pe plastic hollow cross section sheet extrusion line
1. Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.
2. We provide plastic machine which can make Agriculture pipe,machines to produce pellet,laminating machine,wooden window frames machine.Our machine can make 3D printer material.
3. Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
Features Specifications:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
this sheet production line is used for making PVC sheet with different width and thickness.
certificate:CE &ISO 9001-2000.certificate of origin
processing material:PVC,PP,PE,PC,PET,ABS
sheet thickness:0.35mm above
basic configuration:
1. twin screw extruder or single ertruder
2. automatic screen change
3. die-head
4. three roller calender
5. cooling frame with edge cutting
6. haul off device
7. cutting machinr or disker winding machine
8. stacker
All SJZ Series Conical Twin-Screw Extruder Technical Parameter:
| Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max. Rotating speed(rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Capacity(kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |

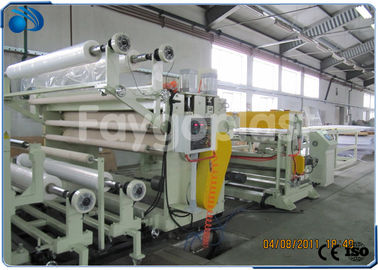

pp/pe sheet extrusion line Photos:
