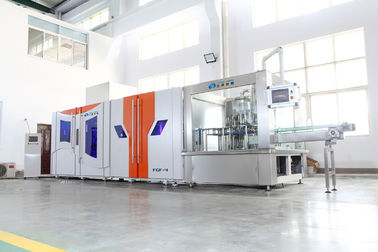

Linear Blowing Bottle Filling Capping Machine Combiblock For Juice Beverage

Linear Blowing Bottle Filling Capping Machine Combiblock For Juice Beverage

Linear Blowing Bottle Filling Capping Machine Combiblock For Juice Beverage

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Faygo
Certification: CE, ISO
Model Number: FGF4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 200000-300000 per set
Packaging Details: covered by PE film
Delivery Time: 90 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Bottle Material: PET Bottle Size: 200-2000ml
Capacity: 6000-24000BPH Bottle Diameter: 55-110mm
Bottle Height: 150-310mm Suitable Cap: Plastic Screw Cap
Voltage: 380V, 50Hz, 3 Phase Or Customer Oriented Machine Structure: Linear Type
Filling Material: Water Juice Beverage





Factory linear blowing filling capping combiblock machine for juice beverage



1. Machine description

When we talk about combi:

It means: integrate blowing-filling-capping in one machine.

In this way no need bottle rinse, no need air conveyor and you can get measureable result savings on space, power and operator fees.

FG series linear combiblock is world’s first trying to give competitive and economical solutions for small and middle bottling factories.

We focus on 6000-13000BPH only

And this combi realizes “0” bottle waste, once filling machine stop, all preforms in heating zone can be stocked temporarily and be used next time



2. Machine model details

Model FGF4 FGF6 FGF8 ...
capacity(500ml) 6000-7200BPH 9000-10000BP 12000-13000BPH ...
Max volumn(ml) 2000 2000 750 ...
Max bottle height(mm) 328 328 300 ...
Max bottle diameter(mm) 105 105 75 ...
Bottle neck size(mm) 20-25 20-25 20-25
Max preform length(mm) 150 150 140 ...

Linear Blowing Bottle Filling Capping Machine Combiblock For Juice Beverage

3. Main components of machine

Linear Blowing Bottle Filling Capping Machine Combiblock For Juice Beverage Filling part:

Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.

2.1 Filling valve adopt normal pressure filling valve, filling flexible and high precision.

2.2 Adopts double guide pole structure.

2.3 Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable. The operation table and base are all made of carbonization steel with stainless steel as cover.

2.4 Bottle conveyor system, simple structure, neck-hold type. Easy to change for different bottle shapes.

2.5 The whole machine is automatic such as bottle storage and cap storage and so on all controlled by PLC.

2.6 Float ball control the liquid level, make filling steady.

2.7 Key part and electricity parts all adopt imported brand.

2.8 There are connection for CIP washing system.
