2 Layers High Speed Plastic Pallet Blow Molding Machine 450KG/H
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-PALLET-1 |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | Pallet | Voltage | Customized |
|---|---|---|---|
| Dimension(l*w*h) | 8.5*5.5*7/m | Model Number | HY-PT |
| Parison Control | MOOG 200point | After-sales Service Provided | Service Machinery Overseas |
| Highlight | Plastic Pallet Blow Molding Machine,2 Layers Pallet Blow Molding Machine,450KG/H auto blowing machine |
||
Product Description

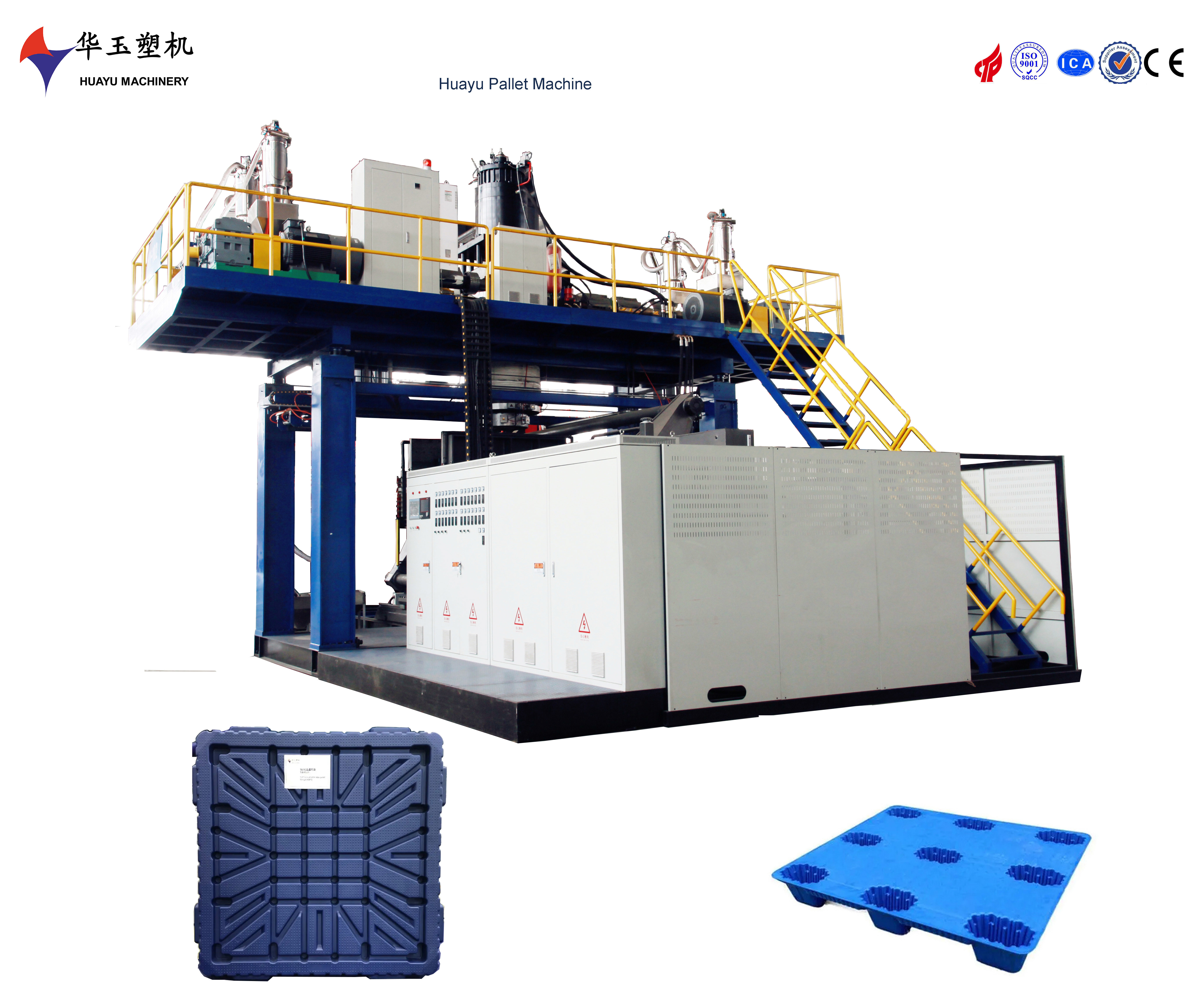

2 Layers High Speed Plastic Pallet Blow Molding Machine
HYBM-Pallet-1 blow moulding machine
1.Machine specification
| Pallet machine | Nine Feet Pallet-2 |
| Capacity rang | 1111-1210 |
| Machine dimension | 8*5.5*6.8 |
| Average | 130KW |
| Total power | 344KW |
| Accumulator capacity | 50KG |
| E*truder motor | 90KW*2 |
| Screw diameter | 110MM*2 |
| Screw L/D ratio | 30:1 |
| Plasticizing capacity | 450KG/H |
| Platen size | 1800*1800MM |
| Platen distance | 900-2400MM |
| Clamping force | 1600KN |
| Servo motor | 48KW |

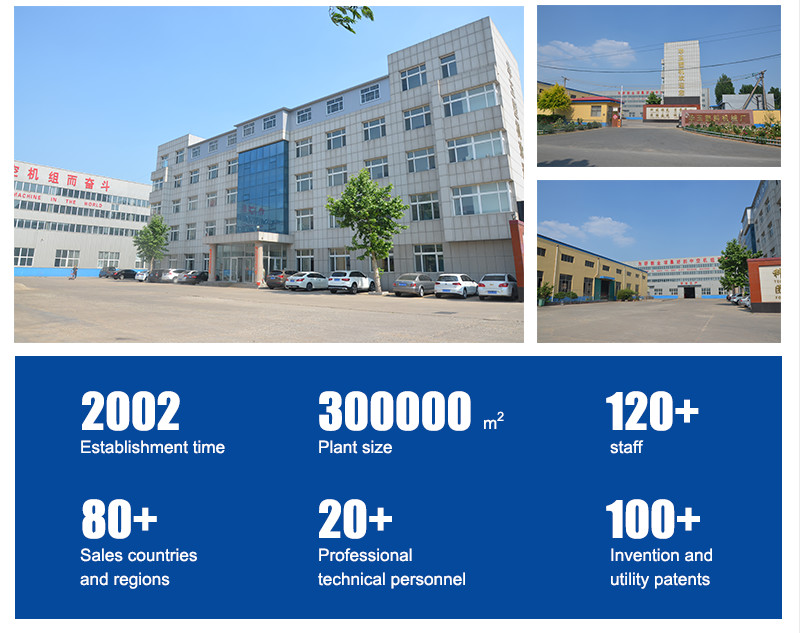

2.Company Profile
Weifang Huayu Plastic Machinery Co. Ltd. was founded in 2002, a manufacturer specialized in super large automatic blow moulding machines. The company intergrates the leading technique and concept at home and abroad, specializing in the design, production, and sales of large automatic blow moulding machine from one to ten layers products.
Our company's blow molding machines can produce various types of plastic water tanks ranging from 25 liters to 30000 liters, including IBC, double ring drum, road barrel, road cone, isolation wall, pallet, table board, float, kayak, toolbox and other hollow products. The excellent quality, stable performance, and superior cost-effectiveness of the company's products not only sell well in the domestic market, but also export to more than 80 countries and regions such as Asia, Southeast Asia, the Middle East, Europe, North America, South America, and Africa, receiving high praise from customers.
At present, our company has made breakthrough progress in the technology of multi-layer storage die heads, filling multiple gaps in the domestic blow molding industry. We will continue to devote ourselves to research and development in the field of blow molding, and strive to build an international brand in the blow molding industry.

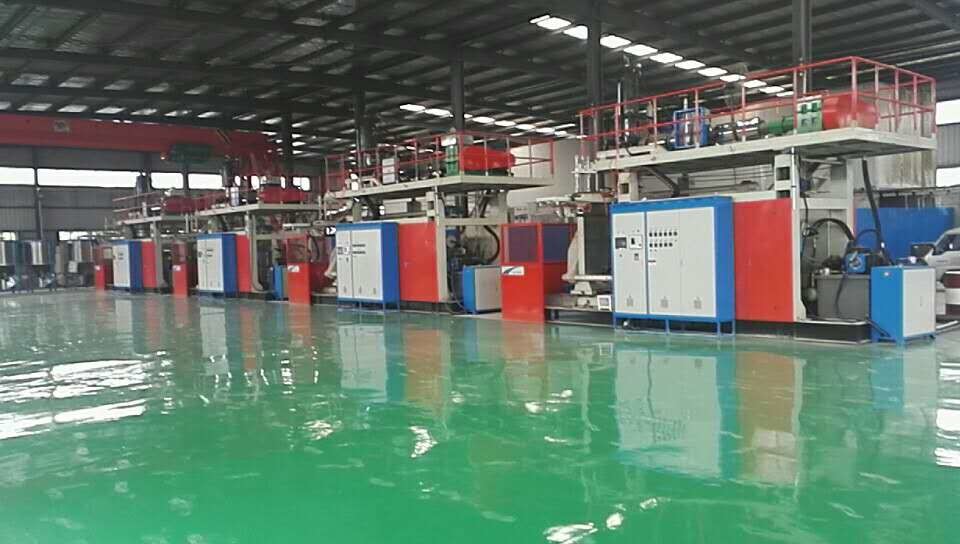

3.Processing advantage
Weifang Plastic Machinery Co., Ltd. has over 20 years of experience in producing and designing blow molding machines, and has over 30 comprehensive mechanical processing equipment such as large machining centers, large floor boring and milling machines imported from Germany, large gantry milling machines, and large CNC lathes, which can grasp the accuracy of equipment processing from the source.
Product advantage
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
4. Customer feedback
