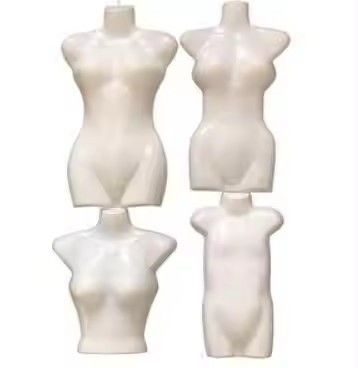

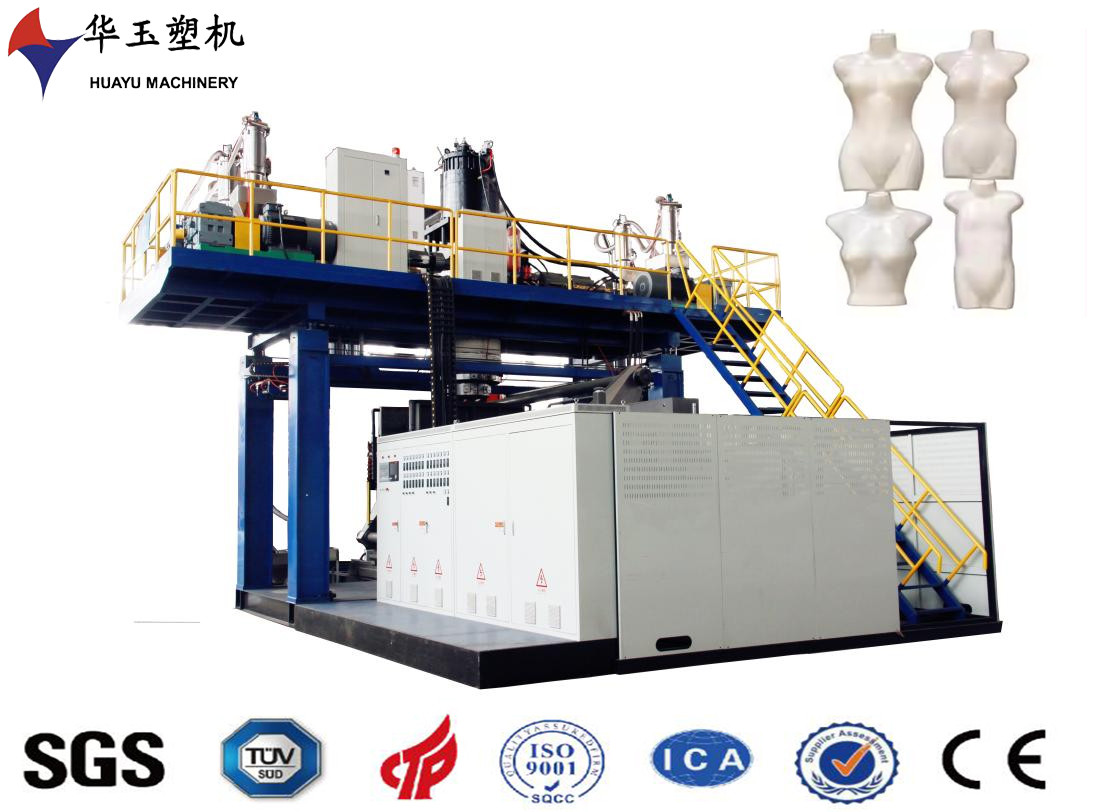

Human Body Model Blow Molding Equipment With Siemens PLC 200-1000L

Place of Origin CHINA
Brand Name Huayu
Certification CE,TUV,ISO9001,SGS
Model Number HY—HB
Minimum Order Quantity 1 SET
Price USD 400,000
Packaging Details The machine will be disassembled into many parts for container transportation.
Delivery Time 5months
Payment Terms L/C, T/T
Supply Ability 40sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 200-1000L Product Water Tank,other Plastic Product
Material HDPE Clamping Force (kN) 800
Output (kg/h) 200 Warranty Of Core Components 1 Year
Automation Automation Voltage 380 V/50 Hz Or Customized
PLC Brand Siemens Screw L/D Ratio 28
Highlight

200L blow molding equipment

,

1000L blow molding equipment

,

HDPE blow molders

Leave a Message
Product Description

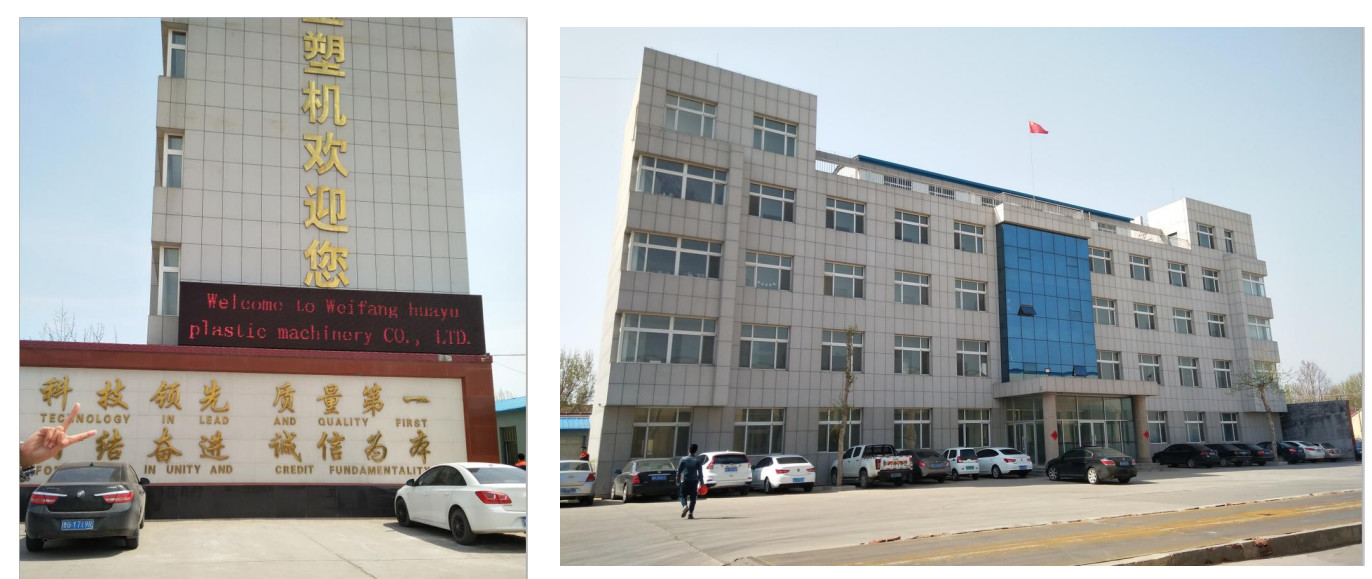

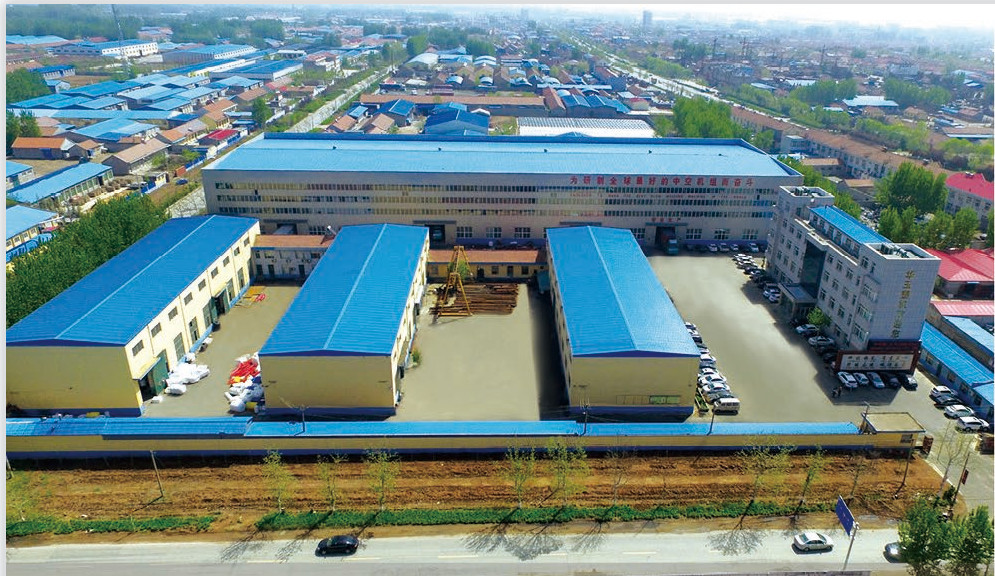

Weifang Huayu Plastic Machinery Co., Ltd. came into being in 2002, being a manufacturer exclusively devoted to super-large automatic blow molding machines. This company combines the leading technologies and concepts both at home and abroad, focusing on the design, production, and sales of large automatic blow molding machines with one to ten layers of products. The blow molding machines of our company can manufacture various types of plastic water tanks ranging from 50 liters to 30,000 liters, including lBC tanks, double L ring drums, road barriers, road cones, isolation walls, pallet table boards, floats, kayaks, toolboxes, and other blow molding items. The superb quality, stable performance, and excellent cost-effectiveness of the company's products not only enjoy a good sale in the domestic market, but also are exported to more than 80 countries and regions like Asia, Southeast Asia, the Middle East, Europe, North America, South America, and Africa, and so on, receiving high recognition from customers. Currently, our company has achieved a breakthrough in the technology of multi-layer storage die heads, filling multiple gaps in the domestic blow molding industry. We will keep devoting ourselves to the research and development in the field of blow molding machines, and strive to build a global brand in the blow molding industry!



Human Body Model Blow Molding Equipment With Siemens PLC 200-1000L 0

Other attributes

Condition
New



Video outgoing-inspection
Provided



Machinery Test Report
Provided



Warranty of core components
1 Year



Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Plastic Processed
HDPE



Place of Origin
Shandong, China



Automation
Automatic



Power (kW)
460



Weight (T)
40



Key Selling Points
Long Service Life, Easy To Operate



Warranty
1 Year



Applicable Industries
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Manufacturing Plant, Restaurant, Other



Showroom Location
Egypt, Turkey, United States, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Chile, Algeria, Sri Lanka, Romania, Bangladesh, Nigeria, Malaysia



Application
plastic product



Brand Name
Huayu



Year
2024



Voltage
380 V/50 Hz or customized



Dimension(L*W*H)
10*5.4*5.8m



Hollow part volume
200-1000L



PLC Brand
Siemens



Screw L/D Ratio
28



Screw diameter (mm)
80 mm



Screw Heating Power(kW)
96 kW



Extruder Motor Power(kW)
37 kW



Mold Platen Size(Width)(mm)
1500 mm



Mold Platen Size(Height)(mm)
1700 mm



Air Pressure(MPa)
0.8 MPa



Air Comsumption(m³/min)
1.5 m³/min



Die Head Heating Power(kW)
80 kW



Accumulator Capacity(L)
50 L



Blow Moulding Type
Extrusion Blow Moulding



Product name
Automatic Blowing Molding Machine



After-sales Service Provided
Service Machinery Overseas



Key words
HDPE Extrusion Blow Moulding Machine



Production
Hdpe Extrusion Blow Molding Machine



Blow Molding Type
Extrusion Blowing Mold Machine



Application Field
Liquid Packaging



Keywords
Bottle Blow Molding



Use
Hollow Moulding



Advantages
20 Years Experiences
