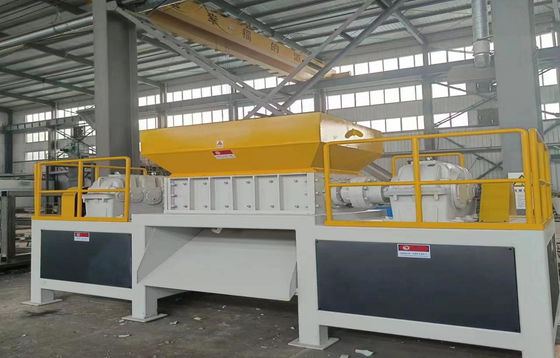

380V 50HZ Auxiliary Machine Heavy Duty Shredder 1200 With 400 X 40 Rotary Blade
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-Shredder 1200 |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 2months |
| Payment Terms | T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rotary Blade Specification (diameter X Thickness) | 400*40 | Rotating Cutter Shaft Speed | According To Material |
|---|---|---|---|
| Number Of Moving Knife | 30 | Main Spindle Specification And Quantity | 1800*200 |
| Specification And Quantity Of Reducer | 750*2 | Motor Specification And Quantity | 55*2 |
| Power | 380V 50HZ | Feed Hopper Specifications And Dimensions MM | 1200*800 |
| Overall Dimensions MM | L5000 W2400 H2500 | Main Frame Specifications M | 150X150 Square Steel |
| Highlight | 50HZ Auxiliary Machine,380V Auxiliary Machine,400 X 40 heavy duty shredder |
||
Product Description
Parameter Table for Shredder -1200 Heavy Duty
|
旋转刀棍规格(直径X厚度) Rotary blade specification (diameter X thickness) |
400MMX40MM |
|
旋转刀轴转速 Rotating cutter shaft speed |
According to material |
|
动刀具数量 Number of moving knife |
30片 |
|
主轴规格数量 Main spindle specification and quantity |
L1800MM D200 |
|
减速机规格数量 Specification and quantity of reducer |
ZSY Hard tooth surface 750*2 |
|
电机规格数量 Motor specification and quantity |
55KW motor*2 |
|
电源 Power
|
three-phase 380V 50HZ |
|
进料斗规格尺寸 Feed hopper specifications and dimensions MM |
1200MMX800MM |
|
外形尺寸 Overall dimensions MM |
L5000 W2400 H2500 |
|
主箱体规格 Main box specifications MM |
端板40 侧板20 End plate 40 Side plate 20 |
|
主机架规格 Main frame specifications MM |
150X150方钢 150X150 square steel |
|
配电柜 Distribution cabinet |
星三角降压启动柜(带反正传) Star delta voltage reduction starting cabinet (with anti forward transmission) |
