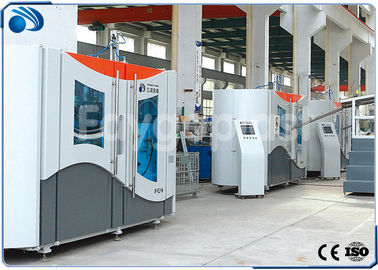

PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency

PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency

    • PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency
    • PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency
    • PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency
  • PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency

    Product Details:

    Place of Origin: Zhangjiagang,Jiangsu
    Brand Name: Faygo
    Certification: CE & ISO9001
    Model Number: FG smart Blowing machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 40HQ
    Delivery Time: Within 1 week (Working days )
    Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
    Supply Ability: 45-60 Working days
    Contact Now
    Detailed Product Description
    Blow Moulding Type:: Stretch Blow Moulding Plastic Processed:: PET
    Place Of Origin: Jiangsu, China (Mainland) Certification: CE
    Max Capacity:: 10000BPH Max Heighet:: 328mm
    Color:: White(can Be Customized)

    6 cavity PET blowing machine produced by Faygo



    FG6 is the totally new generation of linear blowing machine. Compared with the convetional blowing machine, It has two main charactristics:


    1) High speed: China first Linear blowing machine whose single mold speed can reach 1800 BPH. FG4 has 6 cavities, production speed can reach 9000-10000BPH.


    2) Energy saving: The new modularized design make the machine work more efficient



    Technical parameters



    Type FG6 Mark
    Specifications of bottle Mould number(piece) 5
    maxi volume (mL) 2000
    maxi height (mm) 328
    maxi diameter (mm) 105
    Square bottle for max diagonal length (mm) 115
    preform Specifications Suitable inner bottle neck (mm) 20-25
    preform max length (mm) 150
    Capacity (bottles / hour) at 17 g 500mL 7200
    Electricity Install power (kw) 51
    Heating oven total power (kw) 46
    Heating oven actual power consumption (kw) 26
    Voltage / frequency (V / Hz) 380v,50hz
    Allowed voltage fluctuation ±10%
    HP Air Pressure(bar) 30
    Capacity(m³/min) 4
    Cooling Water Mold water pressure(bar) 4-6

    Water chiller

    6HP

    Suitable temperature range (℃) 6-13
    Flow (L / min) 45
    Oven water pressure(bar) 4-6



    Water chiller



    3HP



    Suitable temperature range (℃) 6-13
    Flow (L / min) 22
    Machine Specification host machine dimension (m) length × width × height 3.3*1*2.3
    Weight (Kg) 3200

    Configuration of pet bottle blowing machine
    PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency


    Product pictures

    PET Stretch Blow Molding Machine , Plastic Bottle Making Machine High Effiency



    1. Small performs distance heating system



    Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.


    2. Modularized design conception



    Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.



    3. Efficient and soft perform inlet system



    By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected.


    4. Servo driving and cam linking blowing section:



    The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.





    Optional Items

    1. Exploded bottles ejection unit

    During the blowing process, if the bottle bursts, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.



    2. High pressure air recovery Unit

    After the bottle blowing, high pressure air can be recycled and used again for the pre-blowing and machine physical movement.



    3. Oven and preform temperature detection unit

    Thermal sensing unit detects temperature in oven and temperature of heated performs. When the temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.



    Our Services

    1. Stand-by engineers team to provide overseas installation and commissioning service.
    2 1 year warranty. During warranty, we provide free of charge for repairing cost.
    3. Lifetime maintenance. After-sales department can provide life long maintenance service.



    6 cavity PET blowing machine produced by Faygo
