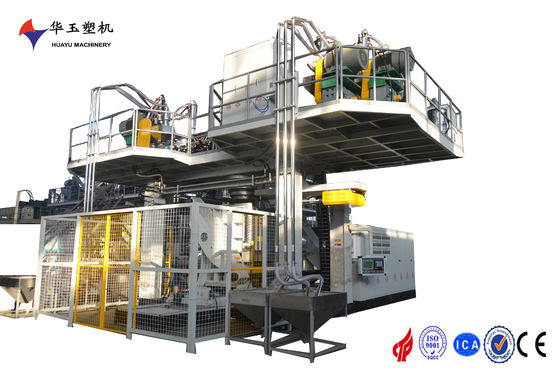

HY200L-1000L 4LAYERS BLOW MOULDING MACHINE with 331.5kw Total Power for Large Container
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY200L-1000L 4LAYERS BLOW MOULDING MACHINE |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Product Details
| Machine Dimension | 9*5.4*5.6M | Average Consumption | 180kw |
|---|---|---|---|
| Total Power | 331.5kw | Accumulator Capacity | 35kg |
| Capacity Range | 200-1000L | Plasticizing Capacity | 330KG/H |
| Highlight | Large Container BLOW MOULDING MACHINE,1000L BLOW MOULDING MACHINE,4LAYERS BLOW MOULDING MACHINE |
||
Product Description
Capacity range: 200-1000L
Machine dimension : 9*5.4*5.6M
Average consumption: 180kw
Total power: 331.5kw
Accumulator capacity: 35KG
Extruder motor: 37*4kw
Screw diameter: 80*4MM
Screw L/D ratio: 28:1
Plasticizing capacity: 330KG/H
Platen size: 1500*1700*70MM
Platen distance: 850*2600MM
Clamping force: 800KN
Servo motor: 30kw
