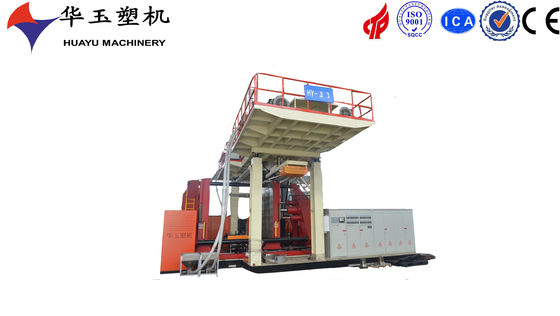

HY200L-1000L 6LAYERS BLOW MOULDING MACHINE 220kw Average Consumption for Production
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE, ISO9001 |
| Model Number | HY200L-1000L 6LAYERS BLOW MOULDING MACHINE |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity Range | 200-1000l | Machine Dimension | 10*5.4*5.8m |
|---|---|---|---|
| Average Consumption | 220kw | Total Power | 460 |
| Screw Diameter | 80kw*6 | Screw L/D Ratio | 28:1 |
| Highlight | 200L-1000L BLOW MOULDING MACHINE,1000L BLOW MOULDING MACHINE,6LAYERS BLOW MOULDING MACHINE |
||
Product Description
Capacity range: 200-1000L
Machine dimension : 10*5.4*5.8M
Average consumption: 220kw
Total power: 460kw
Accumulator capacity: 35KG
Extruder motor: 37kw*6
Screw diameter: 80kw*6
Screw L/D ratio: 28:1
Plasticizing capacity: 400KG/H
Platen size: 1500*1700*70MM
Platen distance: 850*2600MM
Clamping force: 800KN
Servo motor: 30kw
