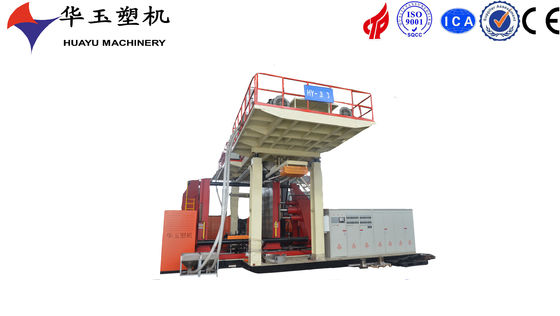

HY 500L-2000L 3 LAYERS BLOW MOULDING MACHINE with Screw diameter 90/120/90mm
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE, ISO9001 |
| Model Number | HY 500L-2000L 3 LAYERS BLOW MOULDING MACHINE |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Product Details
| Accumulator Capacity | 60kg | Extruder Motor | 55/110/55kw |
|---|---|---|---|
| Screw Diameter | 90/120/90mm | Screw L/D Ratio | 30:1 |
| Capacity Range | 500-2000L | Plasticizing Capacity | 430KG/H |
| Highlight | 2000L BLOW MOULDING MACHINE,HY BLOW MOULDING MACHINE,3 LAYERS BLOW MOULDING MACHINE |
||
Product Description
Capacity range: 500-2000L
Machine dimension : 9.5*5.5*7.2M
Average consumption: 190kw
Total power: 390kw
Accumulator capacity: 60KG
Extruder motor: 55/110/55kw
Screw diameter: 90/120/90MM
Screw L/D ratio: 30:1
Plasticizing capacity: 430KG/H
Platen size: 1800*2100MM
Platen distance: 1100-3000MM
Clamping force: 1800KN
Servo motor: 48kw
