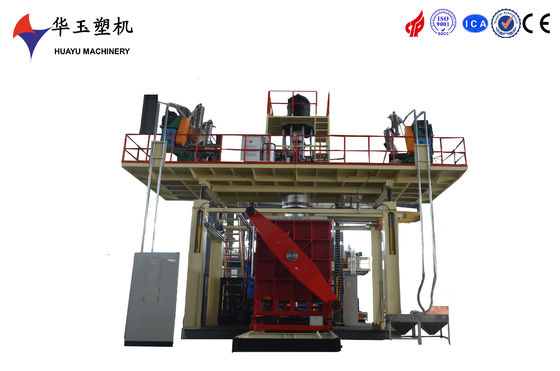

Huayu 3000L 4-layer Water Tank Blowing Machine , Plastic Water Tank Blow Moulding Machine
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY3000L-4 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reducer | 315*4 | Hopper Material | Stainless Steel |
|---|---|---|---|
| Accumulator Capacity | 90kg | Screw L/Dratio | 28:1 |
| Material | HDPE | Feeding Motor | 1.5kw*4 |
| Screw Diameter | 110mm*4 | Die Head Heating Power | 110kw |
| Extruder Motor | 75kw*4 | Feeding Type | Vacuum Loaded |
| Highlight | 4-layer Water Tank Blowing Machine,3000L Water Tank Blowing Machine,Plastic Water Tank Blow Moulding Machine |
||
Product Description
Advantages and Benefits of the Huayu 3000L 4-layer Blowing Machine
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | vacuum loaded | |
| feeding motor | 1.5/1.5/1.5/1.5kw | |
| Extrusion System | ||
| Screw diameter | 110/110/110/110mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 75/75/75/75kw | |
| Reducer | 315/315/315/315 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4.4kw*16 | |
| Plasticizing capacity | 800kg/h | |
| die head | ||
| Accumulator capacity | 90kg | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 110kw | |
| Clamping System | ||
| platen size | 2100*2200*60mm(W*H*T) | smooth running, no noise; the clamping force is big |
The Huayu 3000L 4-layer blowing machine has many advantages.It uses a four-layer co-extrusion technology,which can improve the strength and performance of the products.
The machine is equipped with high-quality components such as Siemens controllers,ensuring high precision and long service life.It also features a fast production speed,stable operation,and low energy consumption.
The intelligent control system can dynamically optimize the production process,further improving production efficiency.In addition,the machine has a high degree of automation,which can reduce labor costs and improve production efficiency.
