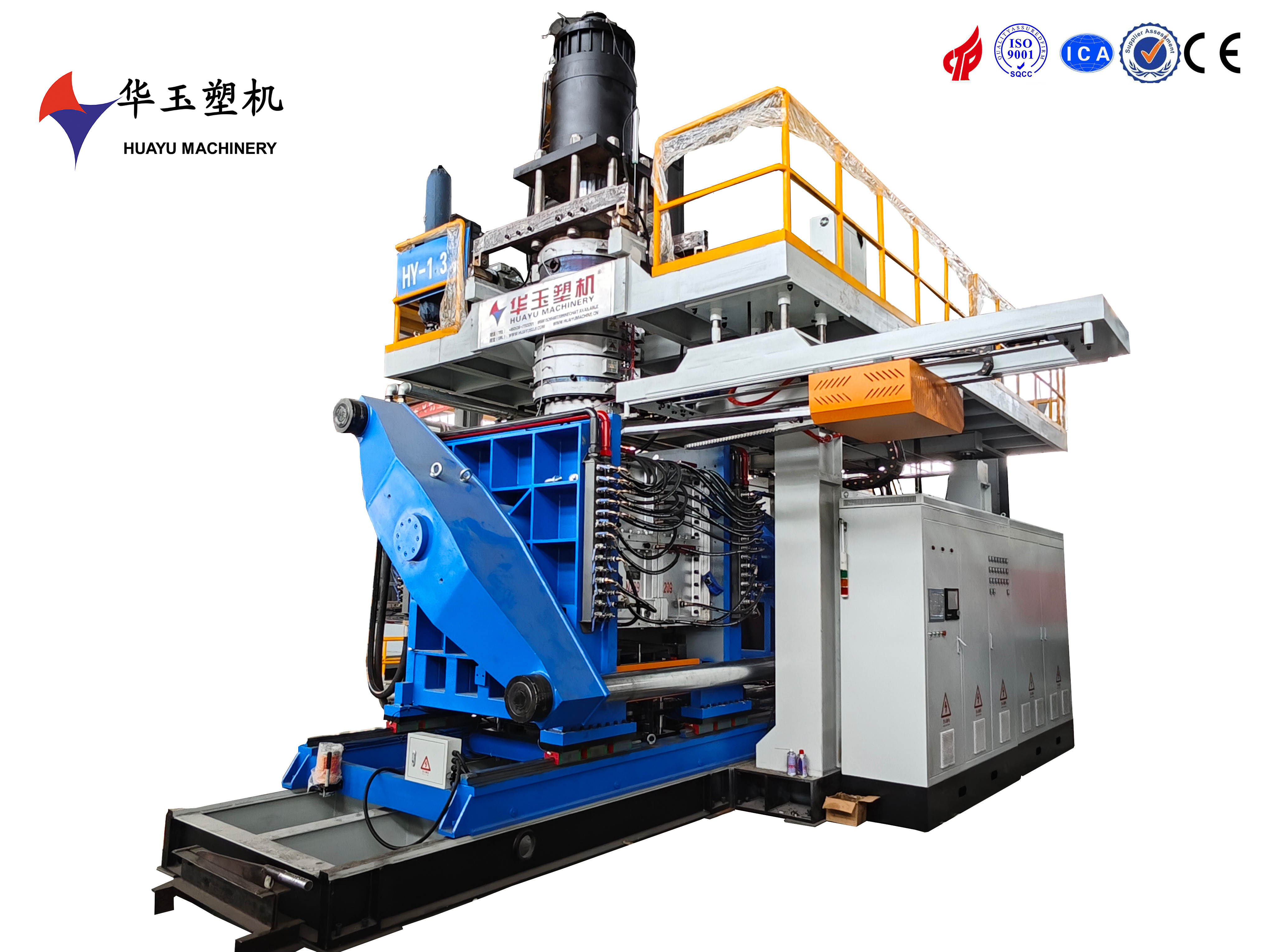

Versatile 8-Layer 3000-5000l Blow Moulding Machine for Enhanced Barrier Properties
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY3000L-8 Layers blow moulding machine |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reducer | 250*8 | Extruder Motor | 45kw*8 |
|---|---|---|---|
| Screw Heating Power | 4kw*32 | Platicizing Capacity | 800kg/h |
| Platen Size | 2200*2400*70mm | Clamping Cylinder | 320+160*2 |
| Clamping Force | 1800KN | Blow Pin Up/down Stroke | 600mm |
| Air Seat Stroke | 400mm | Main Oil Pump Motor | 70kw |
| Highlight | 8-Layer Blow Moulding Machine,Barrier Blow Moulding Machine,3000-5000l Blow Moulding Machine |
||
Product Description
Versatile 8-Layer 3000-5000l Blow Moulding Machine for Enhanced Barrier Properties
| Extrusion System | ||
| Screw diameter | 90mm*8 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 45kw*8 | |
| Reducer | 250*8 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4kw*32 | |
| Plasticizing capacity | 800kg/h | |
| die head | ||
| Accumulator capacity | 90kg | designed by ourselves and get the patent. |
| Die diameter | According to products | |
| Die head heating power | 120kw | |
| Clamping System | ||
| platen size | 2200*2400*70mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 320+160*2 | |
| clamping cylinder stroke | 2000mm | |
| clamping force | 1800KN | |
| distance between platens | 1200-3600mm | |
| max. mould size | 2000*2300mm(W*H) | |
The Hua Yu 3000L 8-layer blow molding machine is a highly advanced plastic manufacturing equipment,offering remarkable performance and significant advantages.It features an 8-layer die head design,which allows for even more precise functional layering and material combinations.
This design significantly enhances the barrier properties,reducing oxygen permeability by over 90%and moisture penetration by up to 95%,making it ideal for high-sensitivity applications like pharmaceutical and electronic chemical packaging.The machine also achieves a 30%weight reduction while increasing impact resistance by 25%compared to traditional models,with a wall thickness uniformity error of≤±1.0%.
Its intelligent control system,equipped with an industrial-grade edge computing module,analyzes over 60 process parameters in real-time,dynamically adjusting extrusion rates and temperatures to boost production efficiency by 35%.The ultra-precise temperature control,combining electromagnetic induction heating and infrared feedback,maintains temperature fluctuations within±0.1℃,reducing energy consumption by 60%.
The modular design enables a 50-second rapid mold change,compatible with containers ranging from 100 to 2000mm in diameter.The machine’s three-hydraulic locking system,with a peak clamping force of 1800 kN,ensures the precision and stability of large container production.Additionally,it boasts a raw material utilization rate of 99.9%,achieved through zero-waste and online recycling processes,significantly cutting costs and environmental impact.
