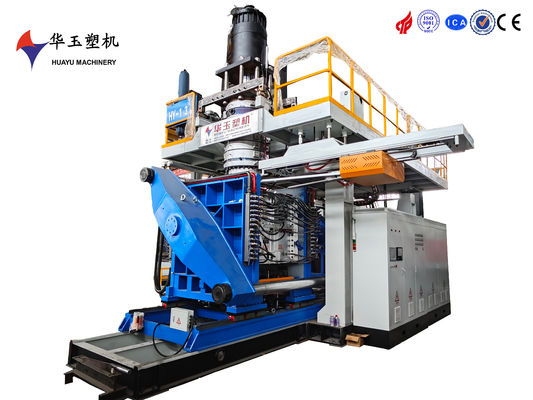

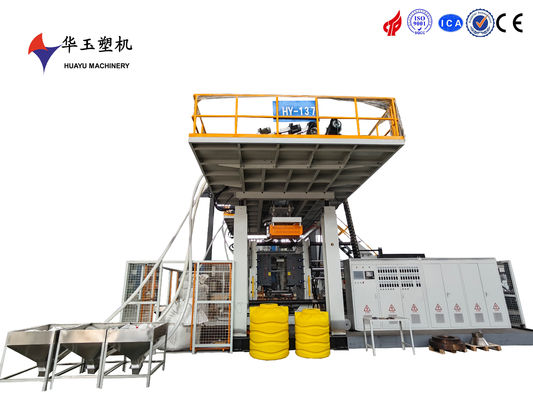

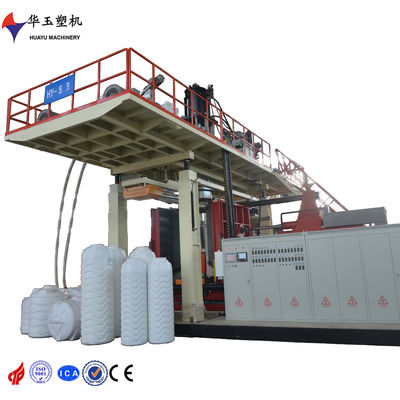

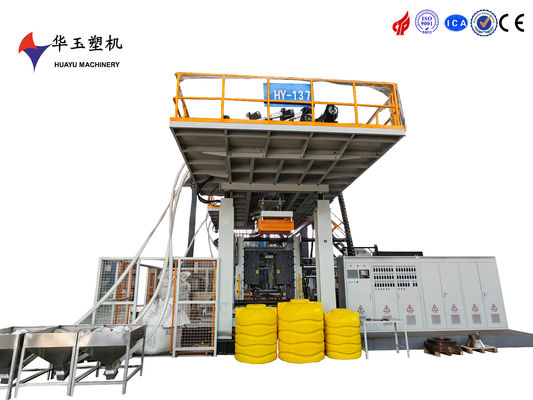

Advanced Tech Blow Moulding Machine 1000-3 Durable and Recyclable for Large Plastic Drum Manufacturing

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001, CE
Model Number HYSJ1000-3
Minimum Order Quantity 1 SET
Price 180000-200000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms L/C,T/T
Supply Ability 1 SET 120 DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Range 1000L Range WATER Tank
Color Customizable Recyclability Recyclable
Blow Molding Type Extrusion Blow Molding Machine Dimension 12*7*7m
Durability Excellent Material HDPE
Cleaning Method Easy Cleaning Plc Siemens
Extrudor Motor 110/90*2/15*3 Average Power Consumption 247kw
Mold Material Aluminum Automation Automatic
Blow Moulding Type Extrusion Blow Moulding
Highlight

Recyclable Blow Moulding Machine

,

Large Plastic Drum Blow Moulding Machine

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

The HUAYU1000L-3 Blow Moulding Machine is designed for industrial-scale plastic manufacturing, featuring cutting-edge technology and a user-friendly interface that simplifies complex processes. Its high-speed production capability, paired with excellent energy efficiency, significantly reduces operational costs. With a maximum container size of 3000L and a production capacity of 800-1200 units per hour, this 90KW-powered machine measures 9000mm x 3500mm x 4000mm. It's perfect for producing large plastic containers, tanks, and industrial plastic products, with wide applications in construction, chemical, and agricultural industries. The machine offers advanced automation which minimizes human intervention and boosts productivity, while its high precision ensures consistent product quality and dimensional stability. The energy-efficient design lowers operational costs, and the durable construction with robust frame and precision components ensures a long service life. It also includes an automated control system for seamless operation, real-time monitoring for tracking production parameters, and quick changeover for different product sizes. Detailed operating instructions and maintenance guidelines are provided, and regular maintenance is necessary to ensure optimal performance. It should be operated within specified temperature and pressure ranges, adhering to safety protocols. Shipment is carefully coordinated with reliable logistics partners for safe and timely delivery. Flexible payment options are available, and the machine is securely packaged to prevent transit damage. Customized packaging solutions can be requested. A 12-month warranty is provided, with customer service support for any purchase-related issues.

Auto Feeder

hopper material

stainless steel

Stable performance, easy maintenance

feeding type

spring loaded



feeding motor

1.5/1.5/1.5kw



 Extrusion System

Screw diameter

100/120/100mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

55/90/55kw



Reducer

280/330/280

Best quality brand in china ,long life and low noise

Screw heating power

4.4kw*5+4 kw*8



Plasticizing capacity

600kg/h
