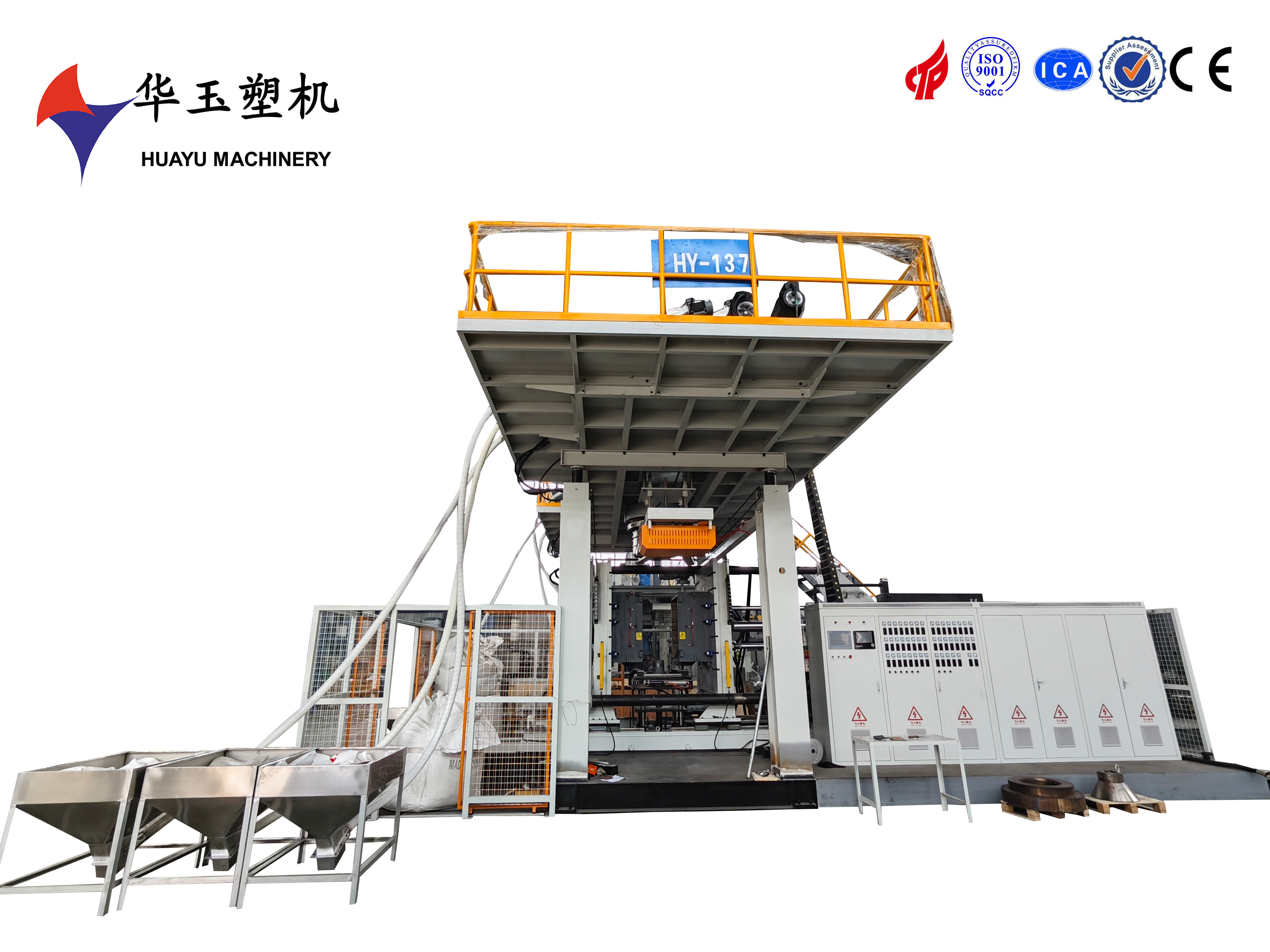

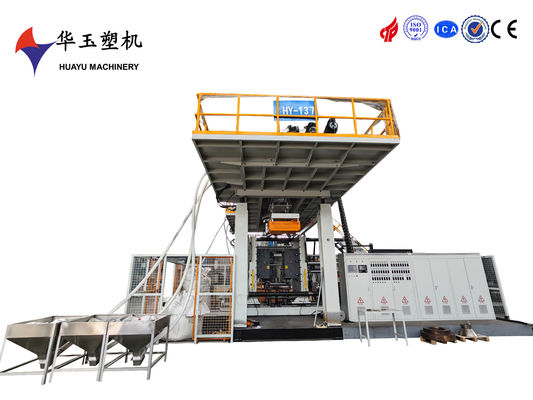

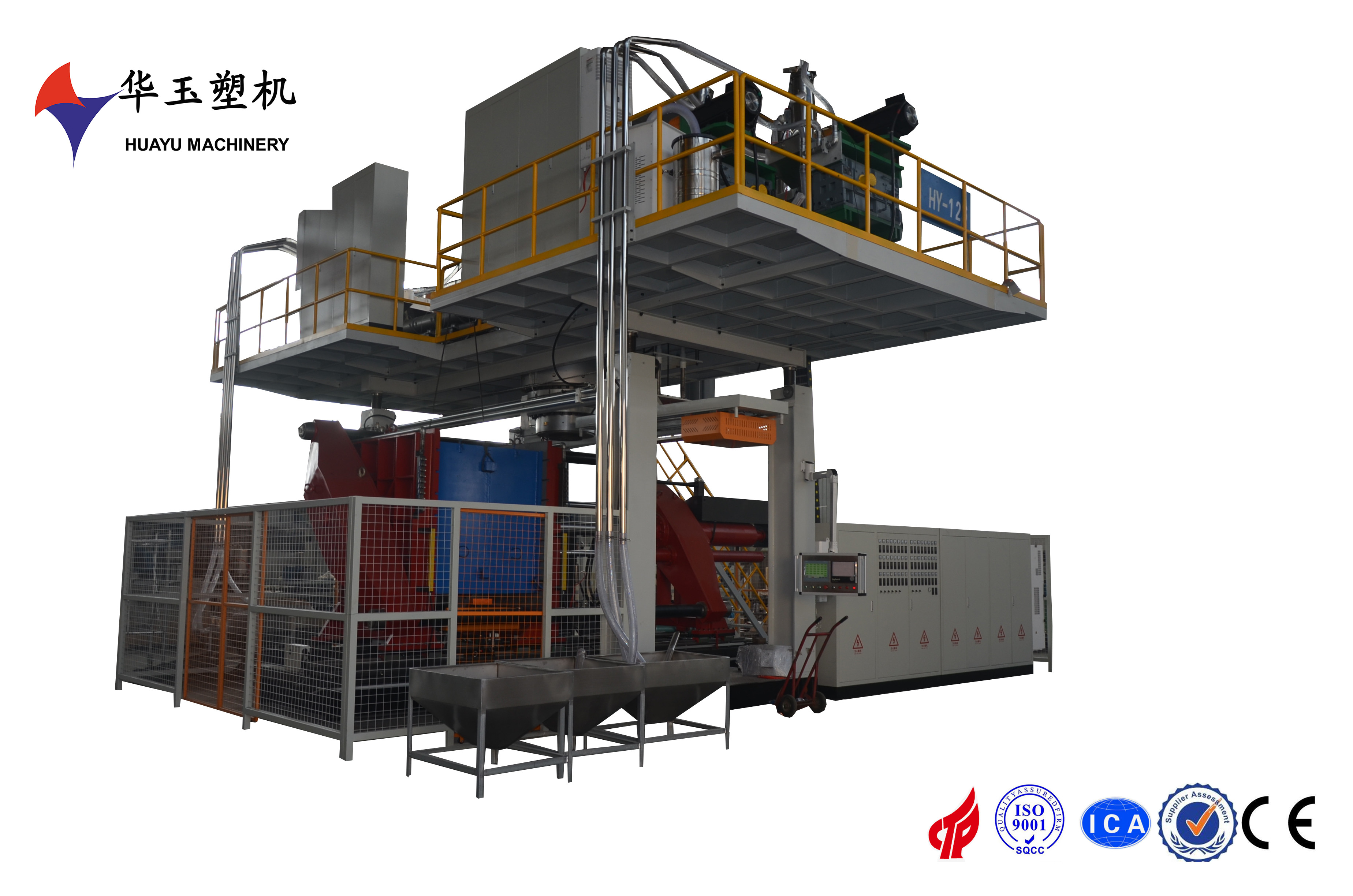

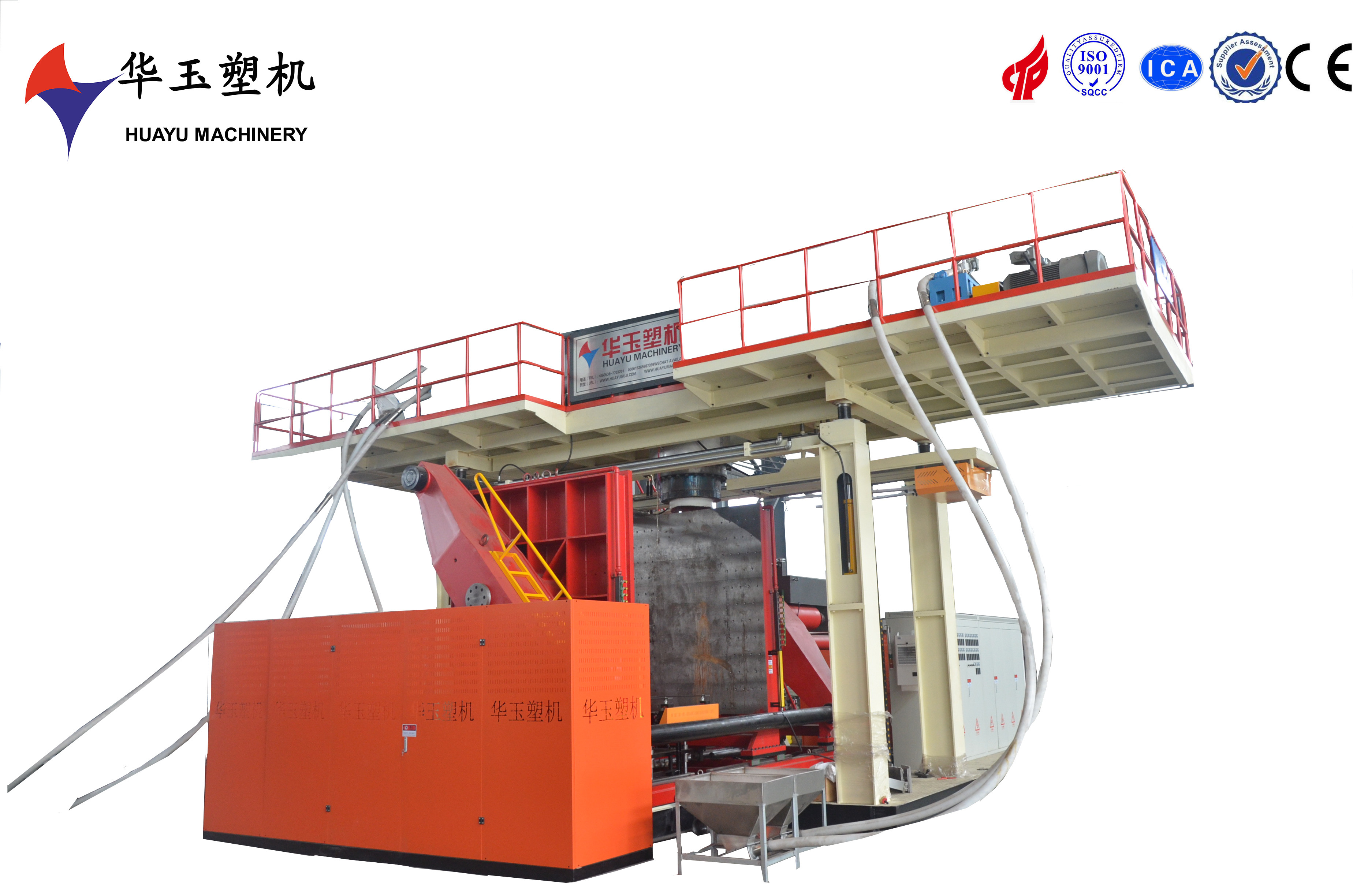

HUAYU3000L-2 Blow Moulding Machine for Industrial Plastic Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY3000-2 |
| Minimum Order Quantity | 1SET |
| Price | 31000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1 SET 120 DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Material | 38CrMoAlA，Nitriding | Heating Zones | 6 |
|---|---|---|---|
| Distance Between Platens | 1400-3800mm | Air Pressure | 0.8MPa |
| Total Power | 775.5kw | Year | 2024 |
| Condition | New | Layer | 1 Layer |
| Hopper Material | Stainless Steel | Blow Molding Type | Extrusion Blow Molding |
| Cooling Water Pressure | 0.3-0.6MPa | Cleaning Method | Easy Cleaning |
| Machinery Test Report | Provided | Voltage Range | 220V/380V/415V/440V |
| Maximum Air Pressure | 0.8Mpa | ||
| Highlight | industrial plastic blow moulding machine,water tank blow moulding equipment,HUAYU3000L-2 plastic production machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU3000L-2 Blow Moulding Machine combines cutting-edge technology with a user-friendly interface. Its high-speed production and energy-saving features make it perfect for industrial applications, delivering high output with consistent product quality and uniform wall thickness.
|
Auto Feeder |
||
|
hopper material |
stainless steel |
Stable performance, easy maintenance |
|
feeding type |
弹簧上料spring loaded |
|
|
feeding motor |
1.5/1.5kw |
|
|
Extrusion System |
||
|
Screw diameter |
130/130/mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
110/110kw |
|
|
Reducer |
375/375 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
5.5kw*12 |
|
|
Plasticizing capacity |
800kg/h |
|
