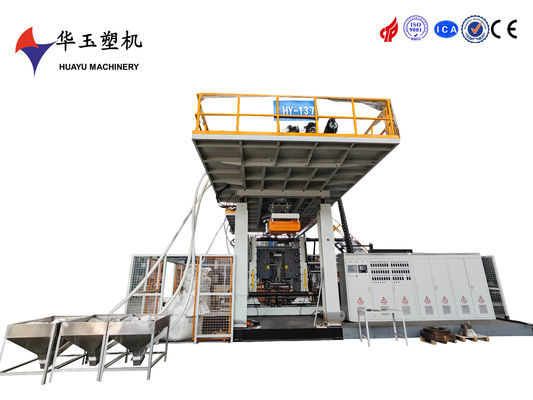

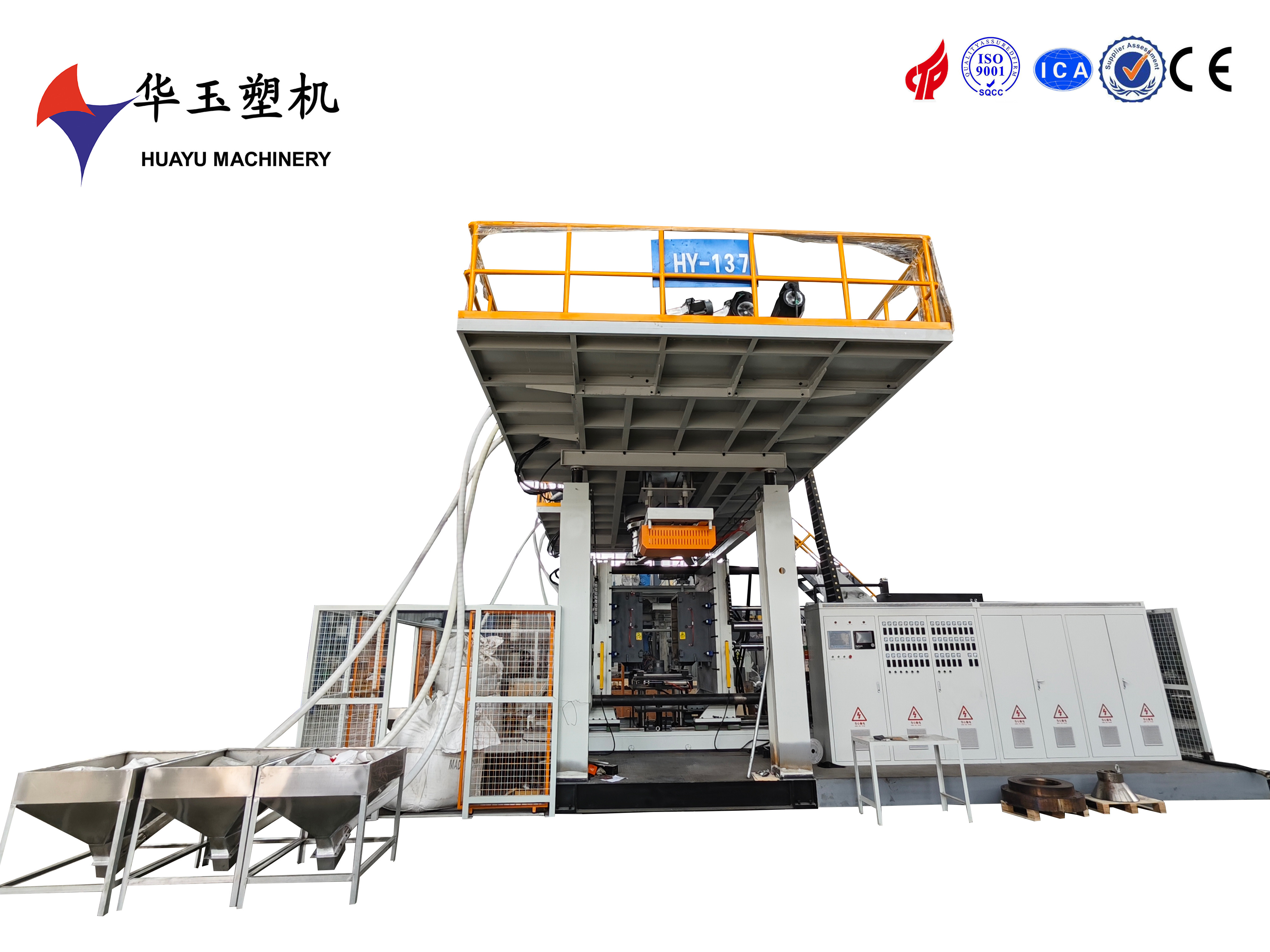

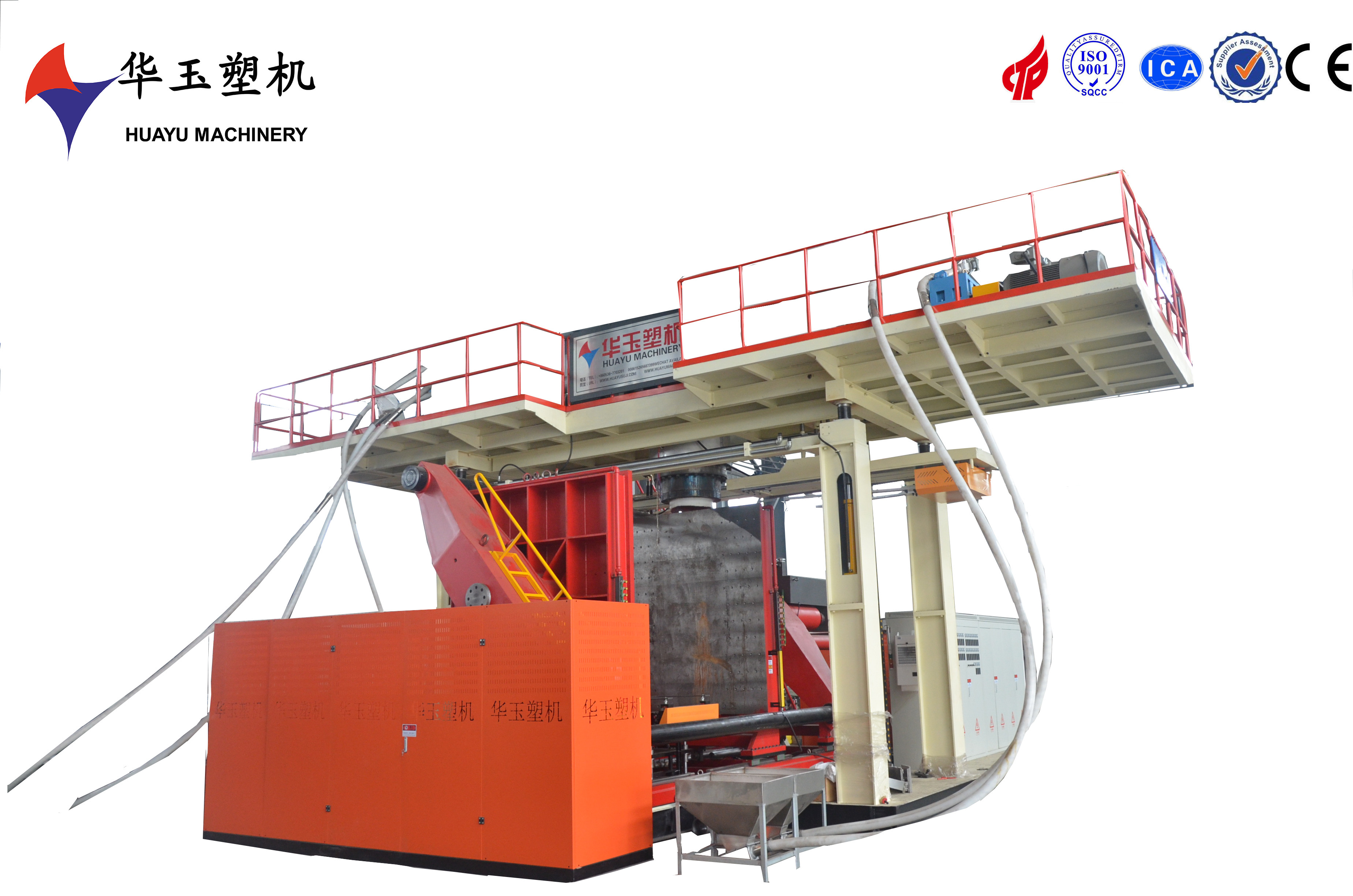

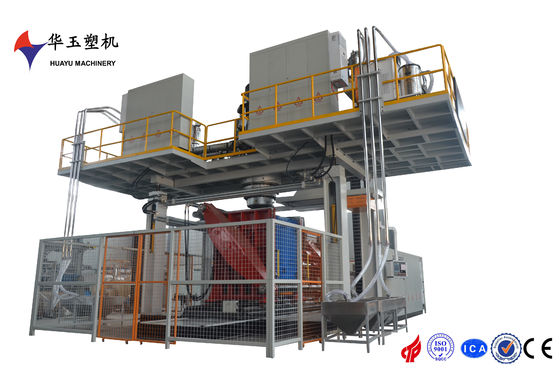

HUAYU 1500L-3 Blow Moulding Machine for Plastic Drum Production

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMachinery Test Report | Provided | Capacity Range | 500--1500L,3 Layers |
---|---|---|---|
Screw Dia | 150mmx1 | Distance Between Platens | 1400-3800mm |
Air Seat Stroke | 400mm | Machine Type | High Speed Plastic Bottle Making Machine |
Platen Distance | 1100-3000mm | Automatic | Yes |
Plc Brand | Siemens | Productivity | 8-20pcs/h |
Touch Screen | Siemens | Material | Plastic |
Water Pressure | 0.3MPa | Cleaning Method | Easy Cleaning |
Layer | 3layers | ||
Highlight | HUAYU 1500L-3 plastic drum machine,blow moulding machine for water tanks,plastic drum production moulding machine |
The HUAYU1500L-3 Blow Moulding Machine offers a compact yet robust design for large-scale plastic drum production. It features high-speed operation and energy-efficient technology, ensuring high precision and low operational costs, while its durable construction guarantees long-term reliability.
die head |
||
Accumulator capacity |
60kg |
designed by ourselves and get the patent |
Die diameter |
According to products |
|
Die head heating power |
90kw |
|
Clamping System |
||
platen size |
1900*2000*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
clamping cylinder |
200+280*2 |
|
clamping cylinder stroke |
2000mm |
|
clamping force |
1800KN |
|
distance between platens |
1000-3000mm |
|
max. mould size |
1600*2000mm(W*H) |
|
