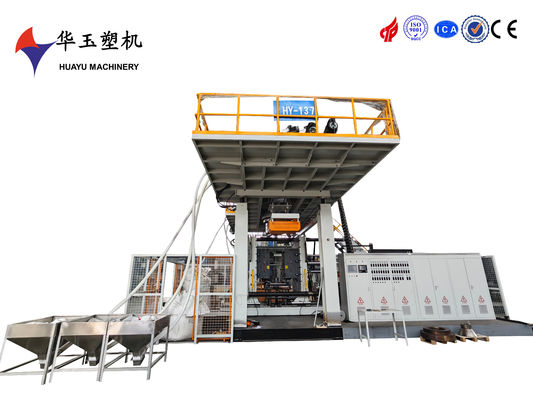

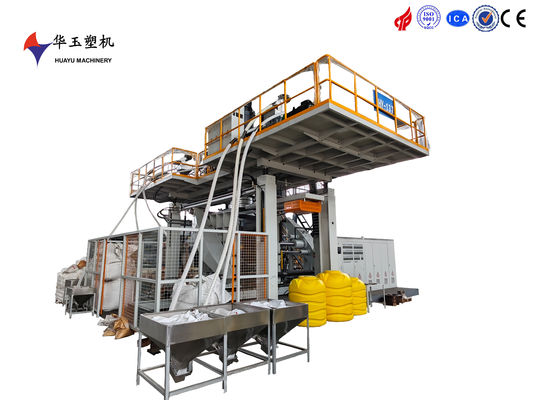

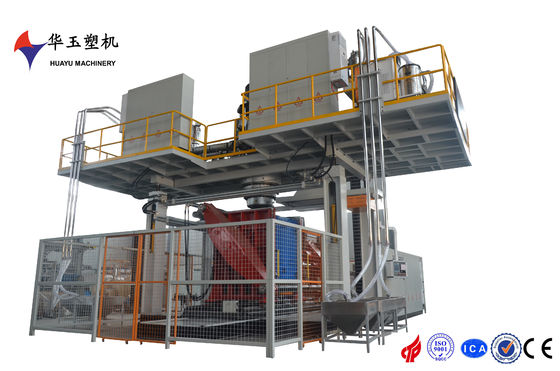

HUAYU 2500L-4 Blow Moulding Machine for Large Plastic Products
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY2500-4 |
| Minimum Order Quantity | 1 SET |
| Price | 350000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity Range | 500--2500L,4layers | Applicable Industries | Other |
|---|---|---|---|
| Voltage Range | 220V/380V/415V/440V | Power Supply | 380V/50Hz |
| Average Aonsumption | 280KW | Platen Size | 1500*1600*60mm(W*H*T) |
| Max Volume | 2500L | Machine Dimension | 10.5*5.4*6m |
| Plc | Siemens | Automation | Fully Automatic |
| Power | 95 KW | Condition | New |
| Touch Screen | Siemens | Machinery Test Report | Provided |
| Production Speed | 100-200 Pcs/hour | ||
| Highlight | HUAYU 2500L-4 blow moulding machine,large plastic products moulding machine,water tank blow moulding equipment |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU2500L-4 Blow Moulding Machine is designed with advanced energy-saving technology, making it an economical choice for large plastic product manufacturing. It ensures high precision and consistent product quality, with features like automated calibration and real-time monitoring.
|
Hydraulic system |
||
|
main oil tank capacity |
1200L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump163CC |
|
|
main oil pump motor |
48kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
|
Electronic system |
||
|
Main operation panel |
Touch screen 9" |
|
|
Control system |
PLC |
|
|
Thickness control points |
200 points |
|
|
Temperature control |
PLC module |
|
